Super B · Nomada Modular Series

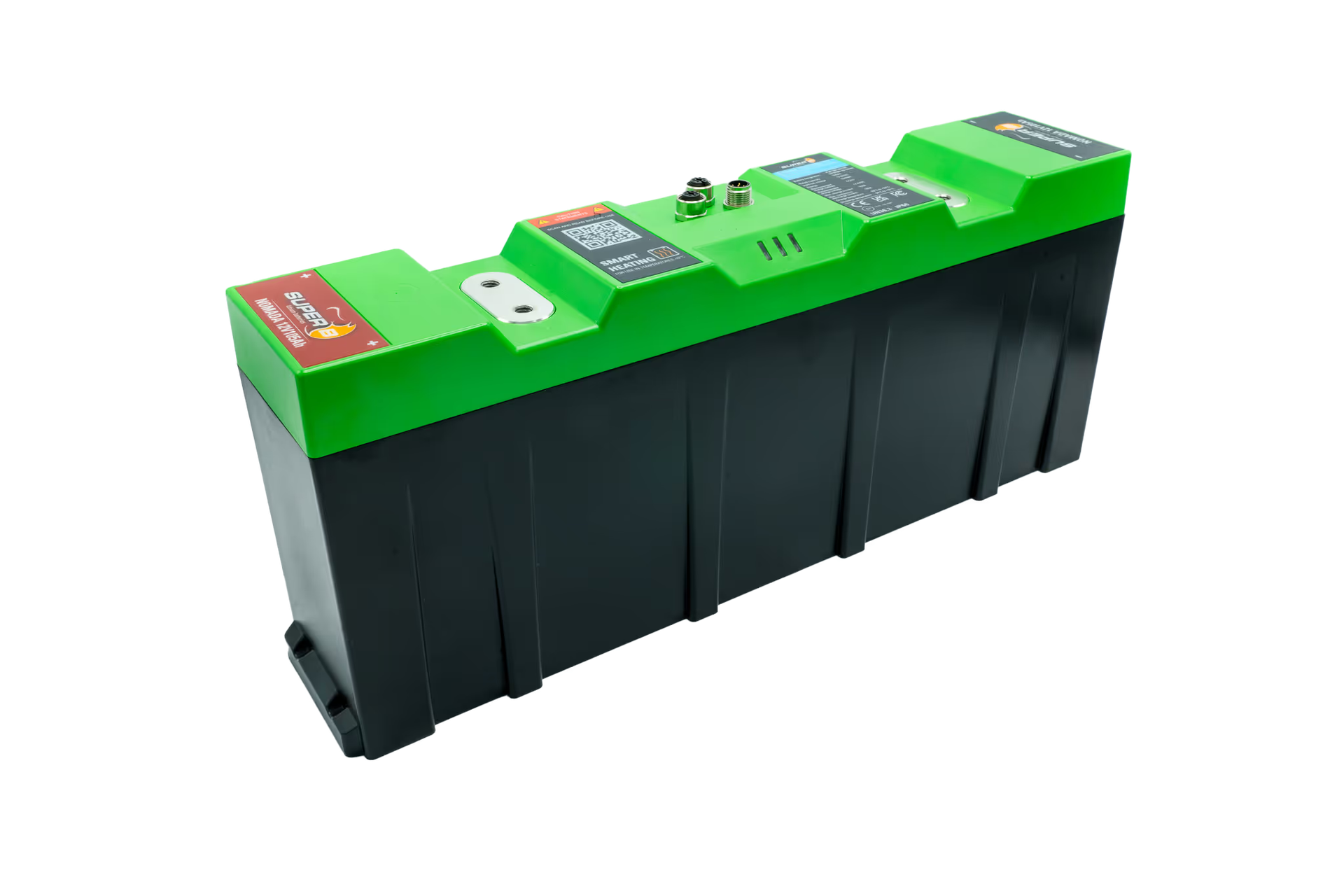

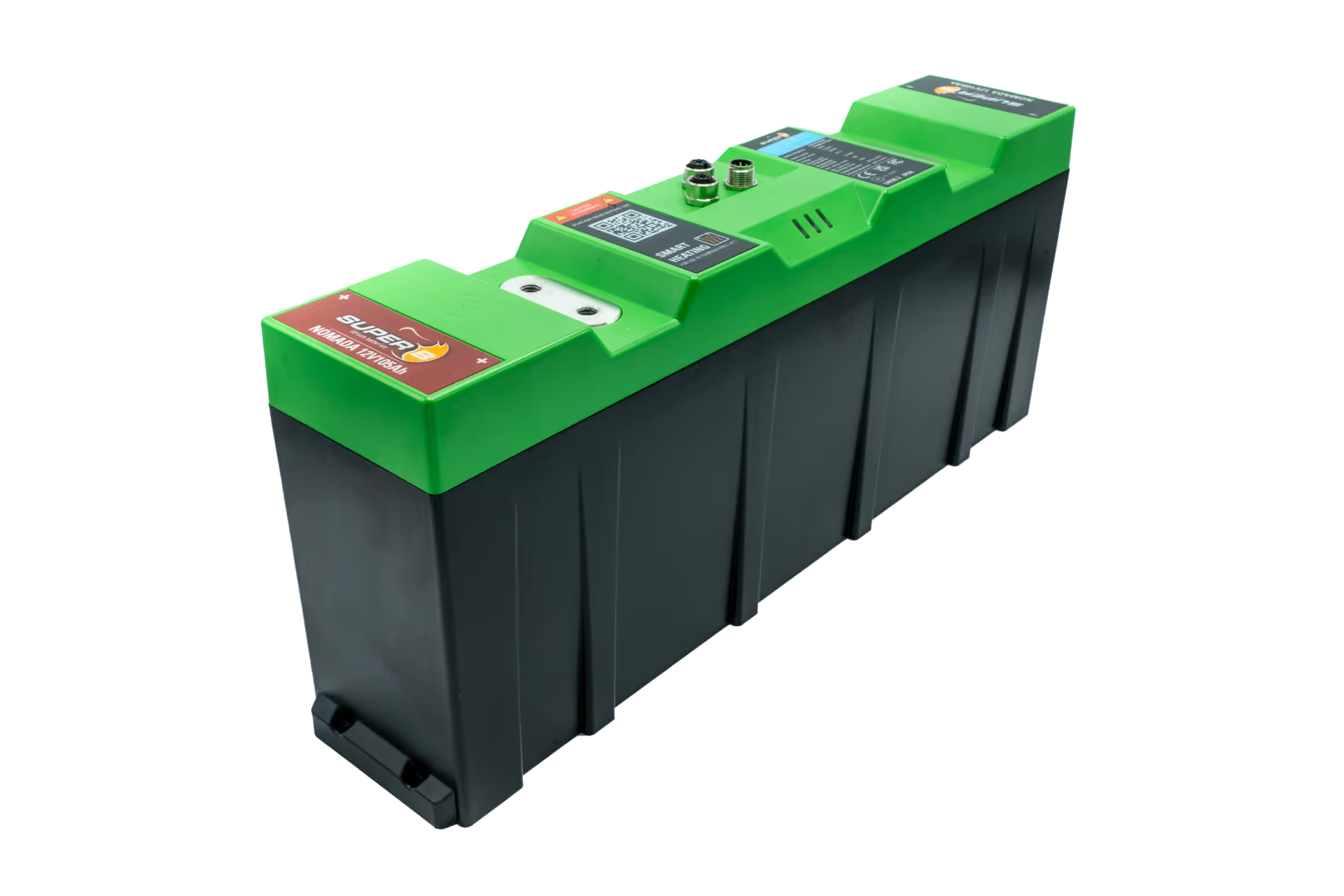

Nomada 12V 105Ah-LT
Low-temperature version of the modular 105 Ah Nomada lithium iron phosphate system battery.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 6 files & links ↓Key features
- Compact modular battery format
- Designed for integration into a managed battery system
- System design and protection must follow the Nomada installation manual
Specifications
| Nominal capacity | 105 Ah |
|---|---|
| Nominal voltage | 12.8 V |
| Energy | 1344 Wh |
| Chemistry | LiFePO₄ |
| Dimensions (L × W × H) | 437 × 90 × 175 mm |
| Weight | 10 kg |
| Charge method | CCCV |
| Charge voltage | 14.3–14.6 V |
| Maximum charge current | 105 A — observe the datasheet temperature limits |
| Continuous discharge current | 105 A |
| Pulse discharge current | 315 A (30 seconds) |
| Ingress protection | IP66 |
| EAN | 8718531362536 |
Product resources
Documentation
Manuals, technical information and catalogues for Nomada 12V 105Ah-LT.
Product documents & support
Brand catalogue
