TBS Electronics · Powersine DC to AC Inverters

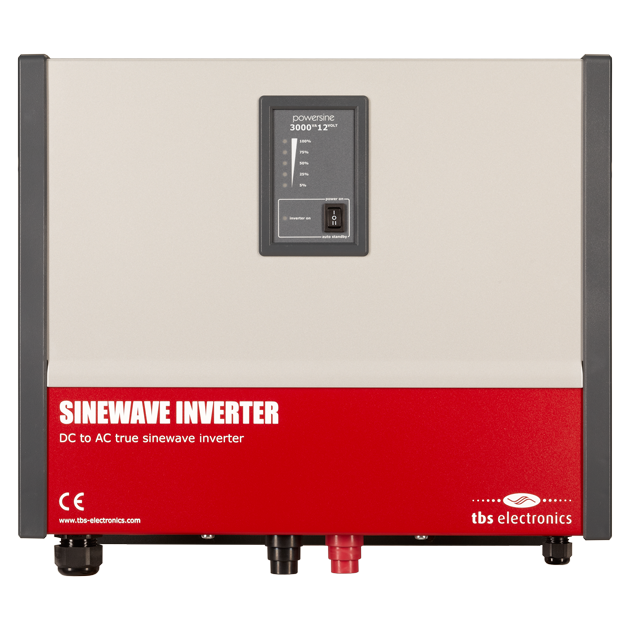

Powersine 2000W – 3500W (12/24/48V)
High-power true sinewave inverters with very high peak ratings for the most demanding loads, and an installer-friendly connection compartment.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 6 files & links ↓Key features
- True sinewave AC output (THD < 5%)
- High surge power output — up to 6500W
- Up to 93% efficiency with very low no-load consumption
- Automatic Standby Function (ASB) cuts no-load draw by ~70%
- Protected against over/under voltage, over-temperature, overload, short circuit & ripple
- Variable-speed fan for silent operation
- Remote on/off, alarm relay and trigger input
- TBSLink port for remote control & readout
- CE certified — 24 month warranty
Specifications
| Models | PS2000-12 · PS2500-24 · PS3000-12 · PS3500-24 · PS3500-48 |
|---|---|
| Nominal power | 1800 – 2800 W |
| Surge power | up to 6500 W |
| Output | 230 Vac ±2%, 50/60 Hz, true sinewave |
| Input voltage | 12 / 24 / 48 Vdc |
| Max efficiency | up to 93% |
| No-load (ASB) | as low as 2.0 W |
| Cooling | Variable-speed fan |
| Enclosure | 370 × 431 × 132 mm |
| Weight | 18.2 – 18.5 kg |
| Protection class | IP21 |
| Warranty | 24 months |
Product resources
Documentation
Manuals, technical information and catalogues for Powersine 2000W – 3500W (12/24/48V).
Product documents & support
Brand catalogue
