TBS Electronics · Omnicharge Battery Chargers

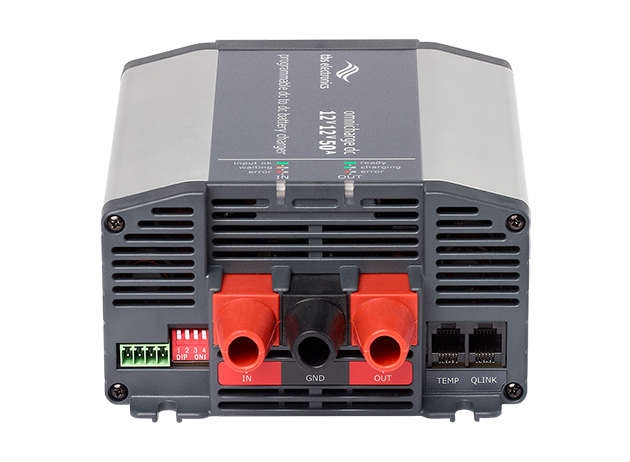

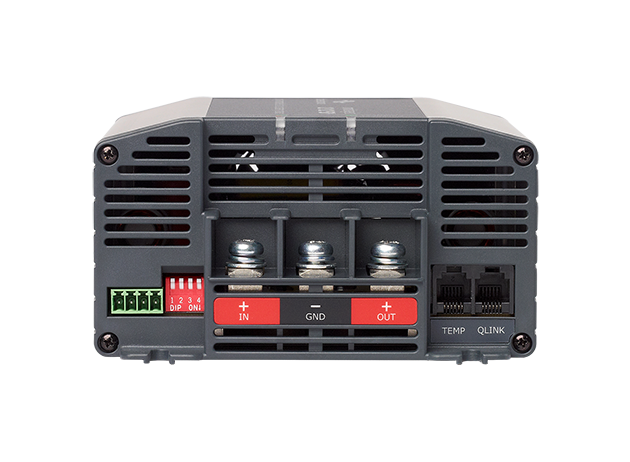

Omnicharge DC 30A – 50A (12/24V)
DC-DC chargers to charge an auxiliary battery from a vehicle starter battery, regardless of input voltage.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 6 files & links ↓Key features
- Models OCD12/12-50 (12V/50A) and OCD12/24-30 (24V/30A)
- Charges an auxiliary/service battery from the starter battery
- Input voltage can be above, below or equal to the output
- Protected against damage from peak voltages
- Outperforms charging relays and fixed step-up/step-down converters
- Multistage intelligent charging for long battery life
- Compatible with lead-acid and LiFePO4 batteries
- CE marked — 24 month warranty
Specifications
| Nominal input voltage | 12 Vdc |
|---|---|
| Input voltage range | 10.0 – 16.0 Vdc |
| Max input current | 65 Adc |
| Output | 12 Vdc / 50 A or 24 Vdc / 30 A |
| Standby consumption | < 0.25 mA (inactive) |
| Warranty | 24 months |
Product resources
Documentation
Manuals, technical information and catalogues for Omnicharge DC 30A – 50A (12/24V).
Product documents & support
Brand catalogue
