TBS Electronics · Omnicharge Battery Chargers

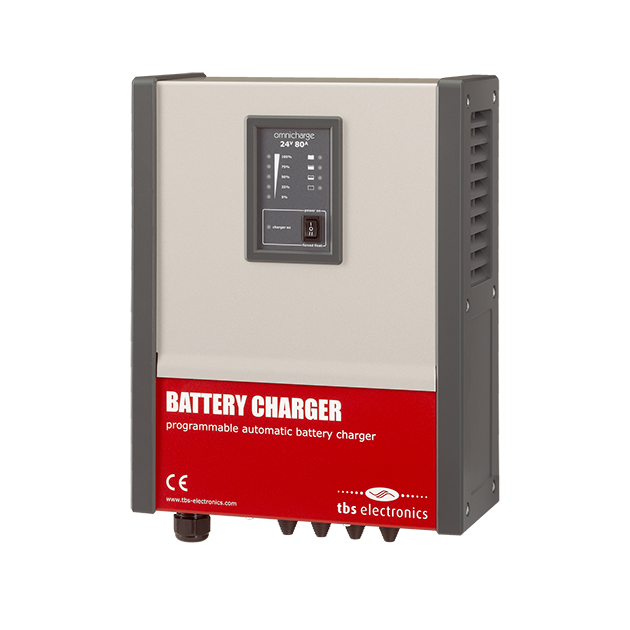

Omnicharge 40A – 90A (12/24/48V)
Fully programmable automatic chargers with advanced algorithms; up to 6 units in parallel for charge currents to 540A.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 7 files & links ↓Key features
- Models OC12-90 (90A), OC24-50 (50A), OC24-80 (80A) and OC48-40 (40A)
- Three internally-isolated full-current outputs
- Intelligent 4-stage IUoUoP temperature-compensated charging
- Active rectifier output stage + active PFC for very high efficiency
- Compatible with all lead-acid and LiFePO4 batteries
- Up to 6 units in parallel — charge currents up to 540A
- Custom charge programs via TBS Dashboard software
- Variable-speed fan, remote control via TBSLink
- Battery temperature sensor included — CE marked, 24 month warranty
Specifications
| AC input | 100–260 Vac / 47–63 Hz, PF ≥ 0.90 |
|---|---|
| Outputs | 3 internally isolated |
| Charge characteristic | IUoUoP intelligent 4-stage, temp-compensated |
| Absorption voltage | 14.4 / 28.8 / 57.6 Vdc |
| Float voltage | 13.5 / 27.0 / 54.0 Vdc |
| Cooling | Variable-speed fan |
| Communication | TBSLink |
| Enclosure | 370 × 270 × 132 mm, ~6.2 kg |
| Protection class | IP21 (upright) |
| Warranty | 24 months |
Product resources
Documentation
Manuals, technical information and catalogues for Omnicharge 40A – 90A (12/24/48V).
