TBS Electronics · Battery Monitors
E-xpert Modular

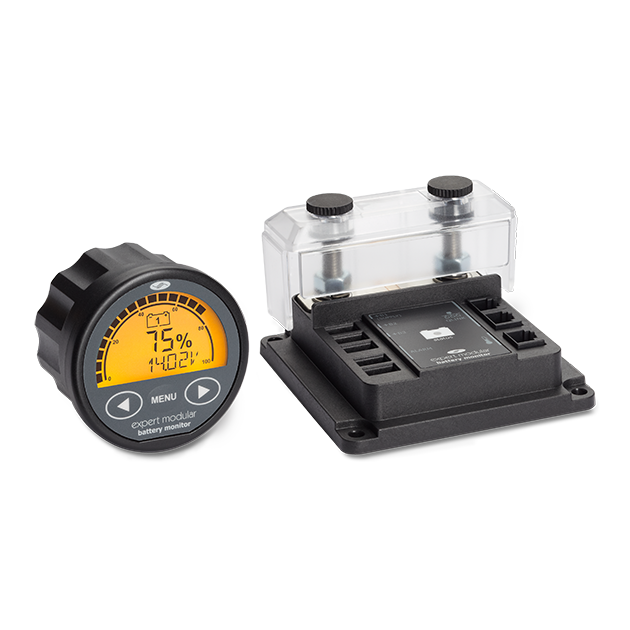

Latest-generation monitor with an intelligent shunt and remote display, grid-optimized for the DC Modular range.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 9 files & links ↓Key features
- Latest-generation monitor with an active intelligent shunt module
- All measurements & calculations done in the shunt for highest accuracy
- Monitors up to three battery banks
- Banks 2 & 3 reconfigurable for mid-point voltage, keyswitch or backlight

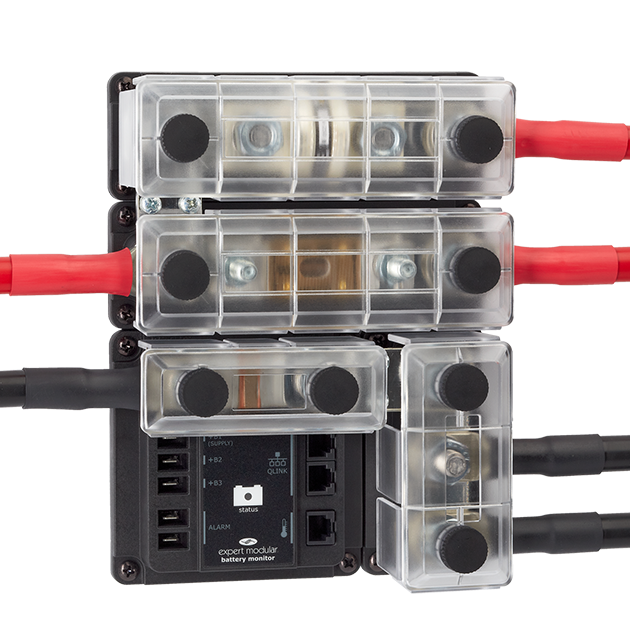

- Grid-optimized shunt footprint integrates with DC Modular products
- Minimal install — one supply wire + plug-and-play 'QuickLink' cable
- Fused supply wire and QuickLink cable included in the package
- Compatible with lead-acid and LiFePO4 (12V–48V) batteries
Specifications
| Current measurement | Up to 600 A (500 A continuous) |
|---|---|
| Voltage measurement | Up to 70 Vdc |
| Battery systems | 12 / 24 / 48 V |
| Battery banks | Up to 3 |

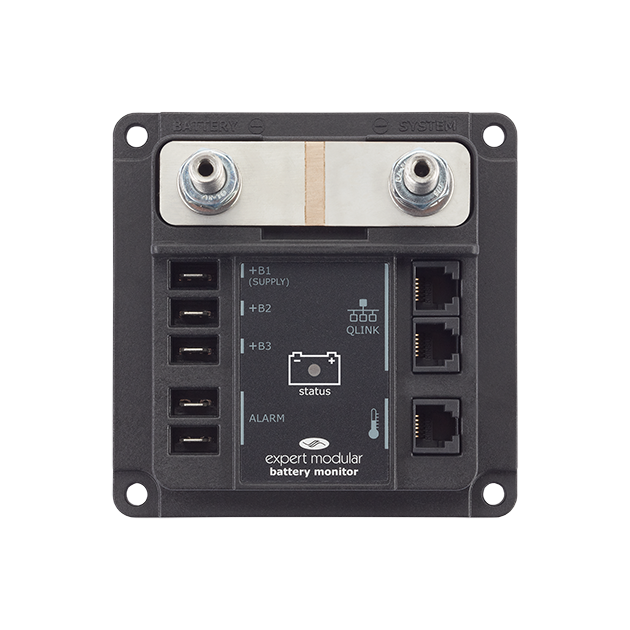

| Shunt | Active intelligent shunt, grid-optimized |
| Connection | QuickLink plug-and-play + fused supply wire (included) |
