TBS Electronics · Battery Monitors

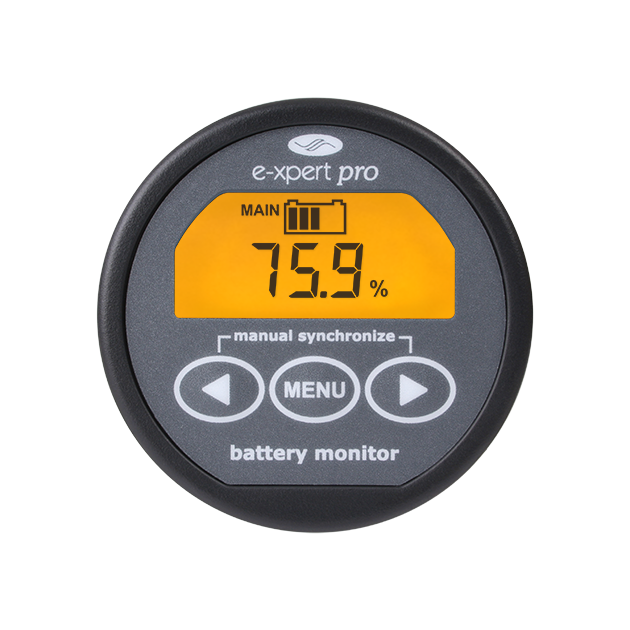

E-xpert Pro
Displays voltage, charge/discharge current, consumed amp-hours, remaining capacity and time remaining on a large backlit LC display.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 13 files & links ↓Key features
- Read your battery bank like a fuel gauge
- Shows voltage, current, consumed Ah, remaining capacity & time remaining
- Two battery inputs — monitor main + auxiliary battery
- Large backlit LC display, intuitive interface
- Programmable alarm relay (e.g. auto-start a generator)
- Shunt selection measures currents up to 10,000 A
- History event storage + communication/expansion port
- Expert Pro-hv variant extends input range to 70 Vdc (36/42/48V systems)
- 500 A shunt included — CE & e-mark certified, 24 month warranty
Specifications
| Main input range | 9 – 35 Vdc (Pro-hv up to 70 Vdc) |
|---|---|
| Aux input range | 2 – 35 Vdc |
| Current range | −9999 … +9999 A |
| Battery capacity | 20 – 9990 Ah |
| Operating temp | −20 … +50 °C |
| Shunt | 500 A / 50 mV (350 A continuous) |
| Protection | IP20 (front panel IP65) |
| Warranty | 24 months |
Product resources
Documentation
Manuals, technical information and catalogues for E-xpert Pro.
Product documents & support
Brand catalogue
