Pentair SHURflo · Industrial Pumps

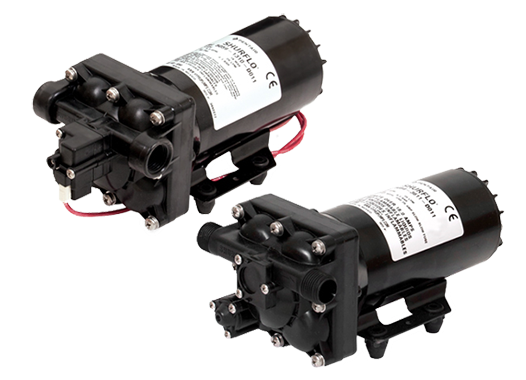

5000 Series Bypass & Automatic Demand Pumps
12 V diaphragm pumps for compatible agricultural spraying and fluid-transfer applications, with bypass or automatic-demand control.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 4 files & links ↓Key features
- Sealed 12 V motor
- Self-priming capability up to 8 ft (2.4 m)
- Santoprene diaphragm and Viton valves in the documented 5059 range
- Choose pressure control and port configuration by part number
Specifications
| Supply | 12 VDC |
|---|---|
| Maximum free flow | 5.3 GPM (20.1 L/min) |
| 5059-3611-D011 | 90 PSI bypass; 1/2 inch NPSM male ports |
| 5059-3610-D011 | 90 PSI bypass; 1/2 inch NPT female ports |
| 5059-1311-D011 | 60 PSI automatic demand; 1/2 inch NPSM male ports |
| 5059-1310-D011 | 60 PSI automatic demand; 1/2 inch NPT female ports |
| Retail packaging | Manufacturer sell sheet specifies D012 suffix in place of D011 for retail box versions. |
Product resources
Documentation
Manuals, technical information and catalogues for 5000 Series Bypass & Automatic Demand Pumps.
Product documents & support
Brand catalogue
