Pentair Sherwood · 22000 & 30000 Series Pumps

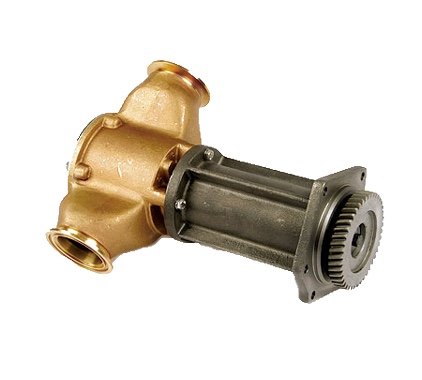

G3001X — 30000 Series
Currently available 30000-platform pump — the replacement for the G22012 and G22012X.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 5 files & links ↓Key features
- Original engine specified — designed and tested for the engine application
- Maintains and protects engine warranty and liability
- Bronze body with stainless steel shaft
- Mechanical seal and sealed ball bearings
- Neoprene flexible impeller
- Currently available direct from Sherwood
- Replaces G22012-01, G22012X and G3001 variants
- 30000 impeller — 4-5/16 in wide, 4-1/2 in diameter, 45° 10-tooth spline
Specifications
| Model | G3001X |
|---|---|
| Superseded models | G3001-01 · G3001-02 · G22012-01 · G22012X |
| Ports | 3-3/4 inch inlet and outlet |
| Impeller kit | 30000K |
| Minor repair kit | 25017 |
| Major repair kit | 25154 |
| Seal & lip seal | 23906 / 23088 |
| Bearing/shaft | 25153 shaft bearing assembly |
