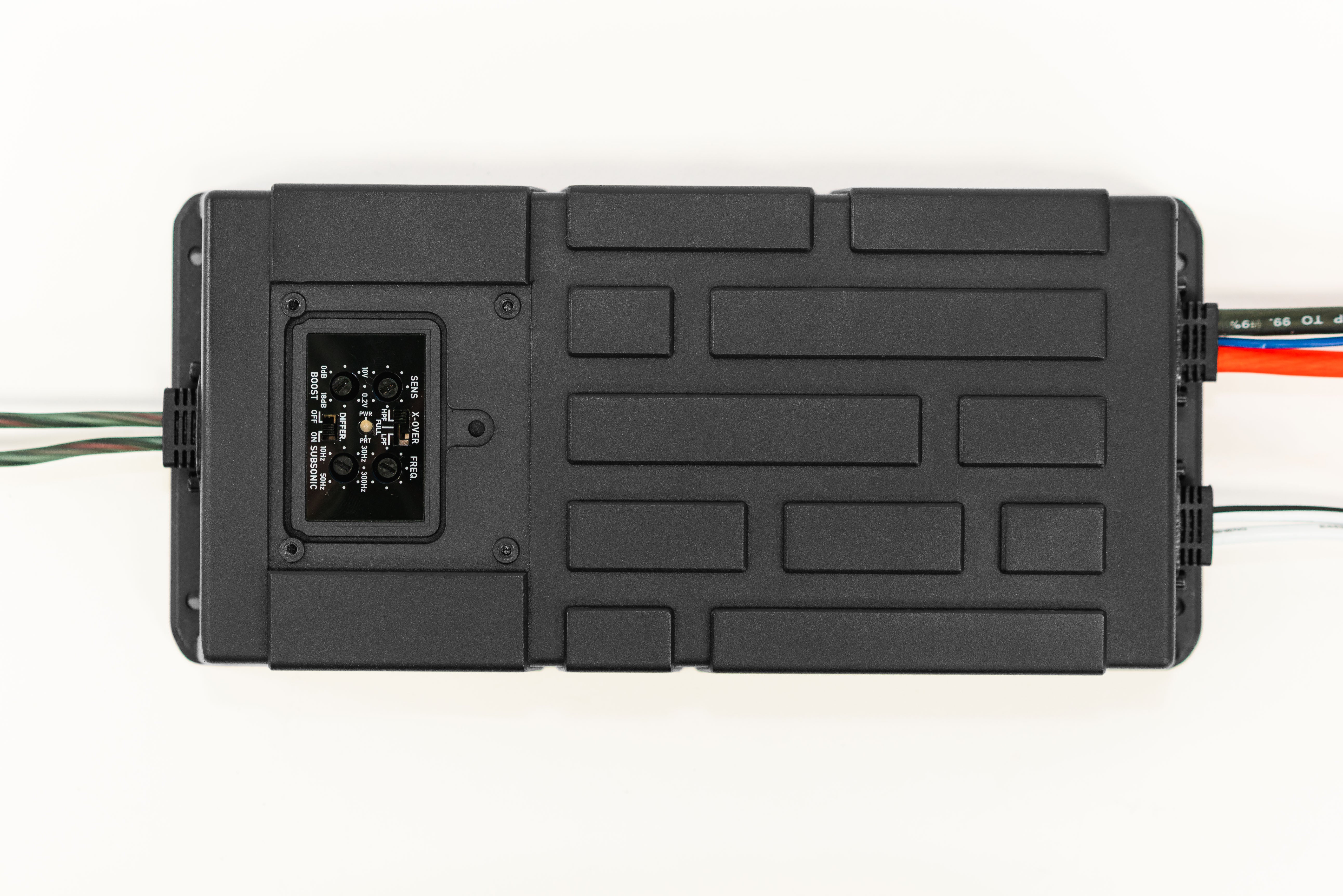

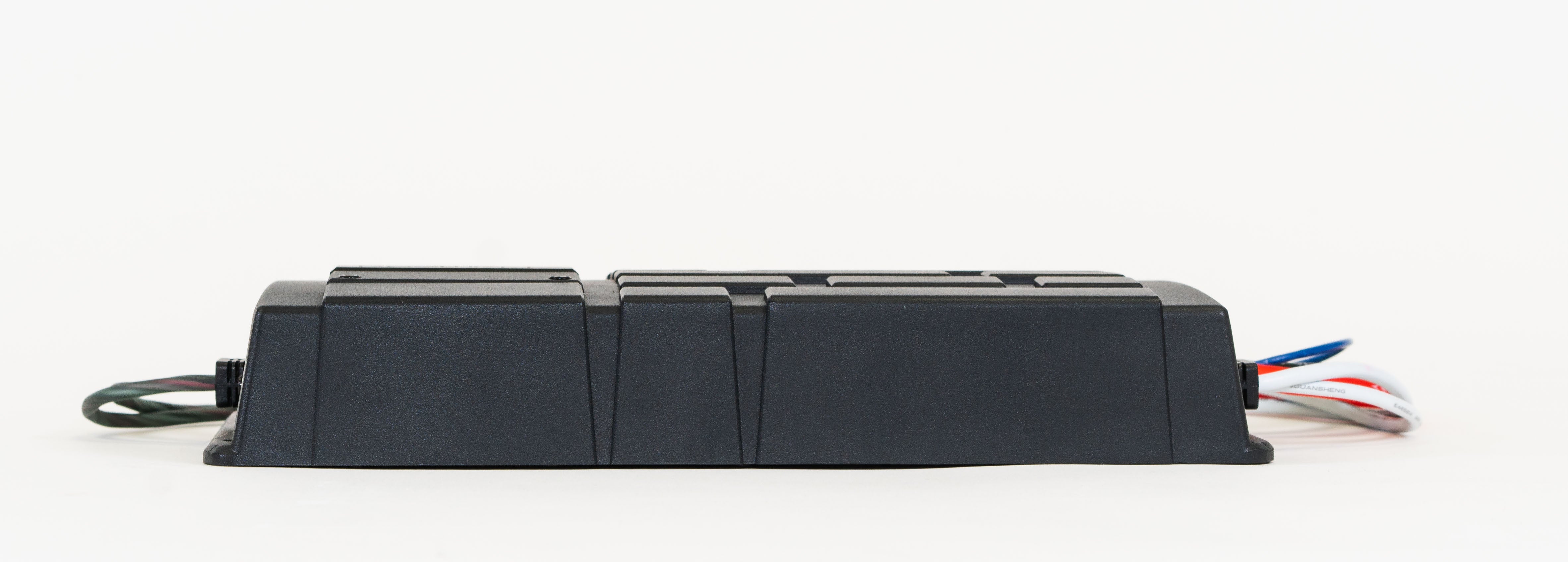

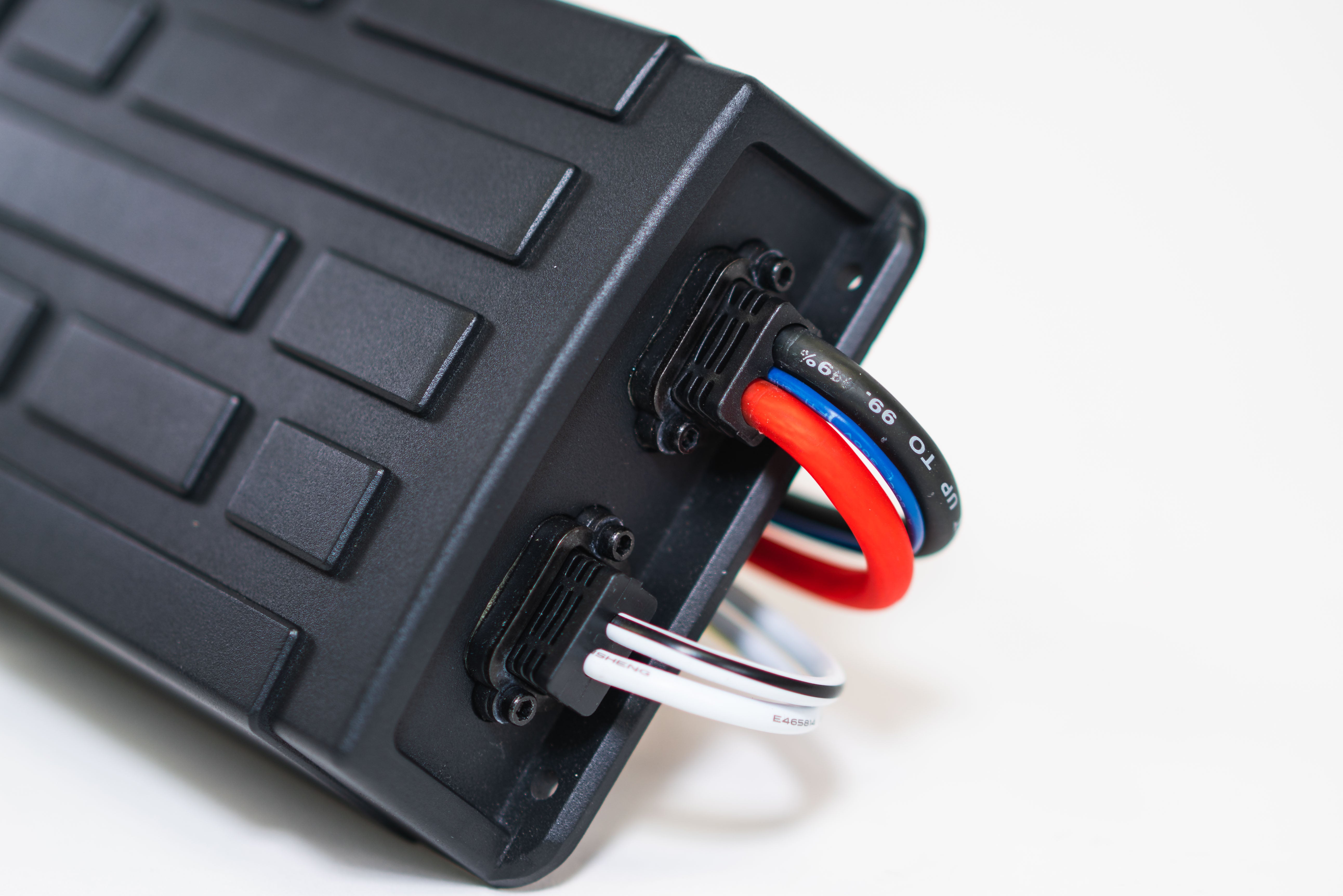

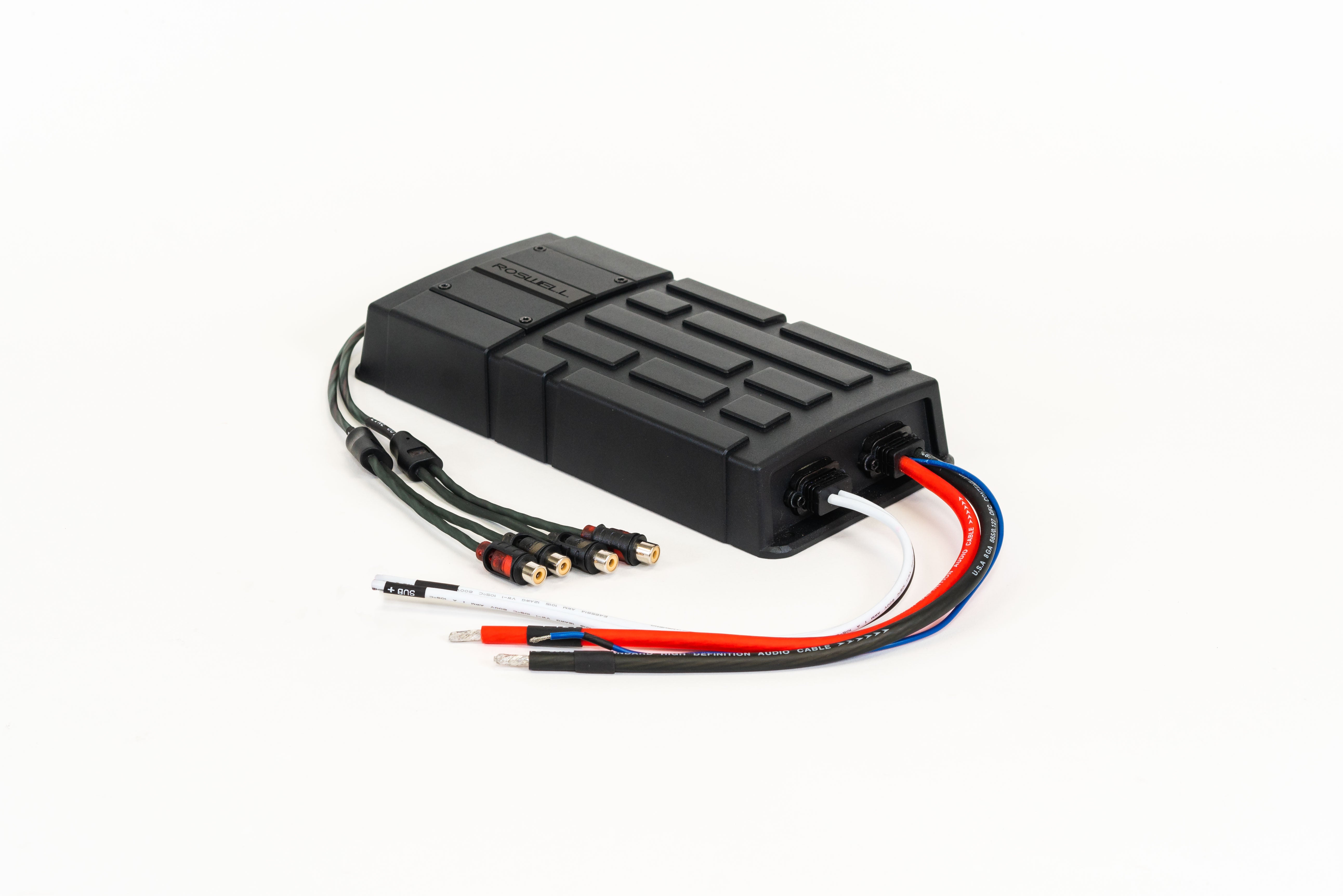

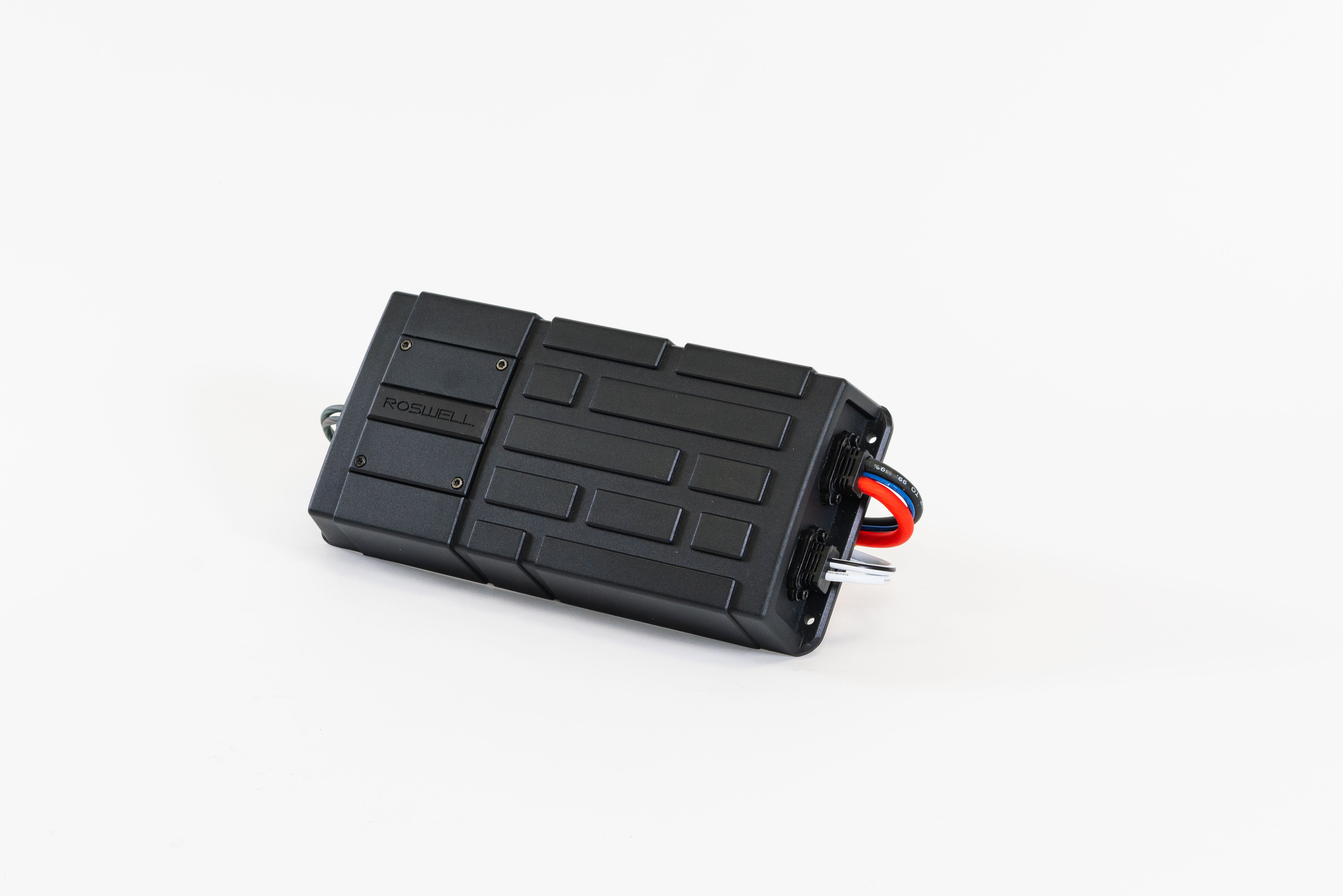

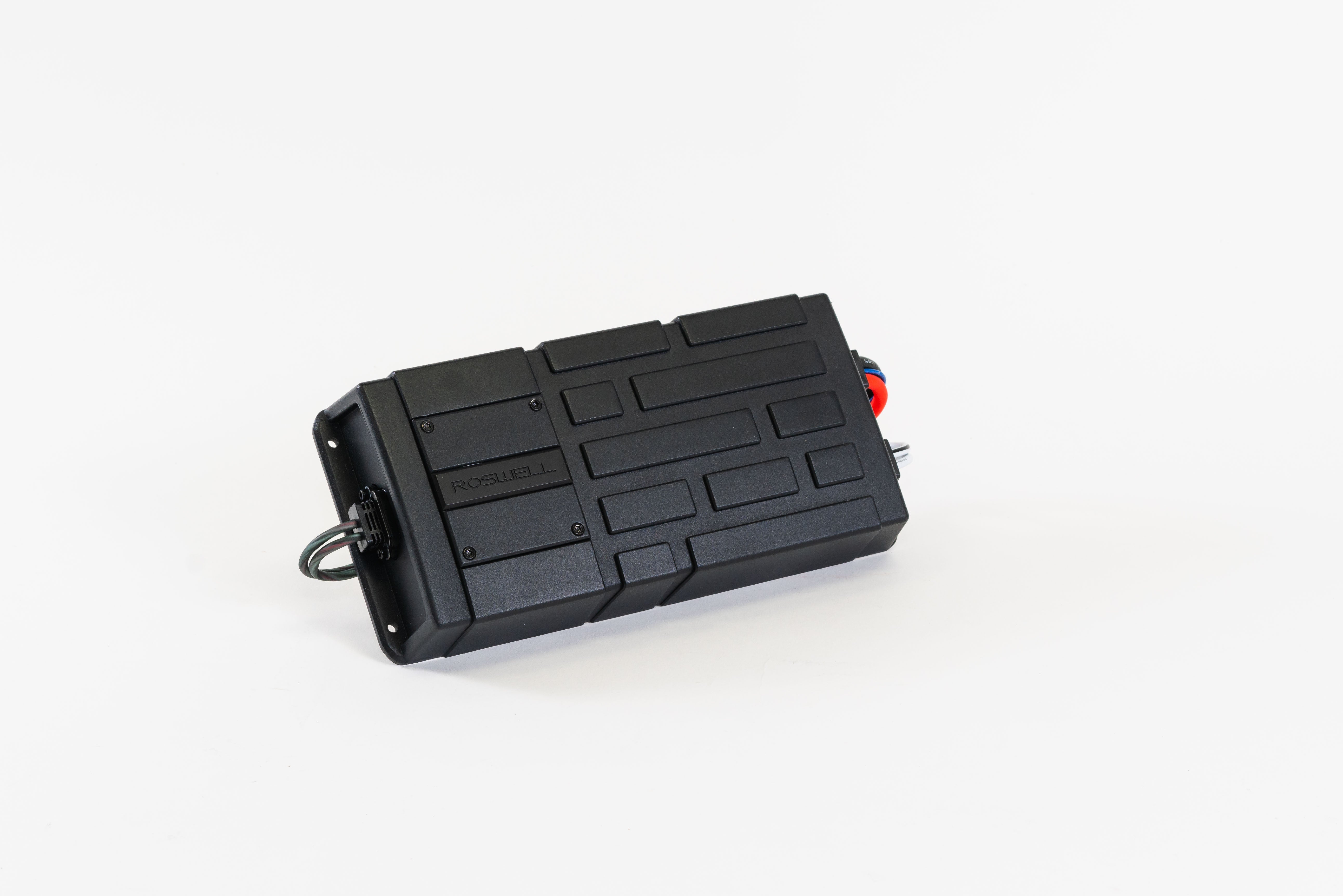

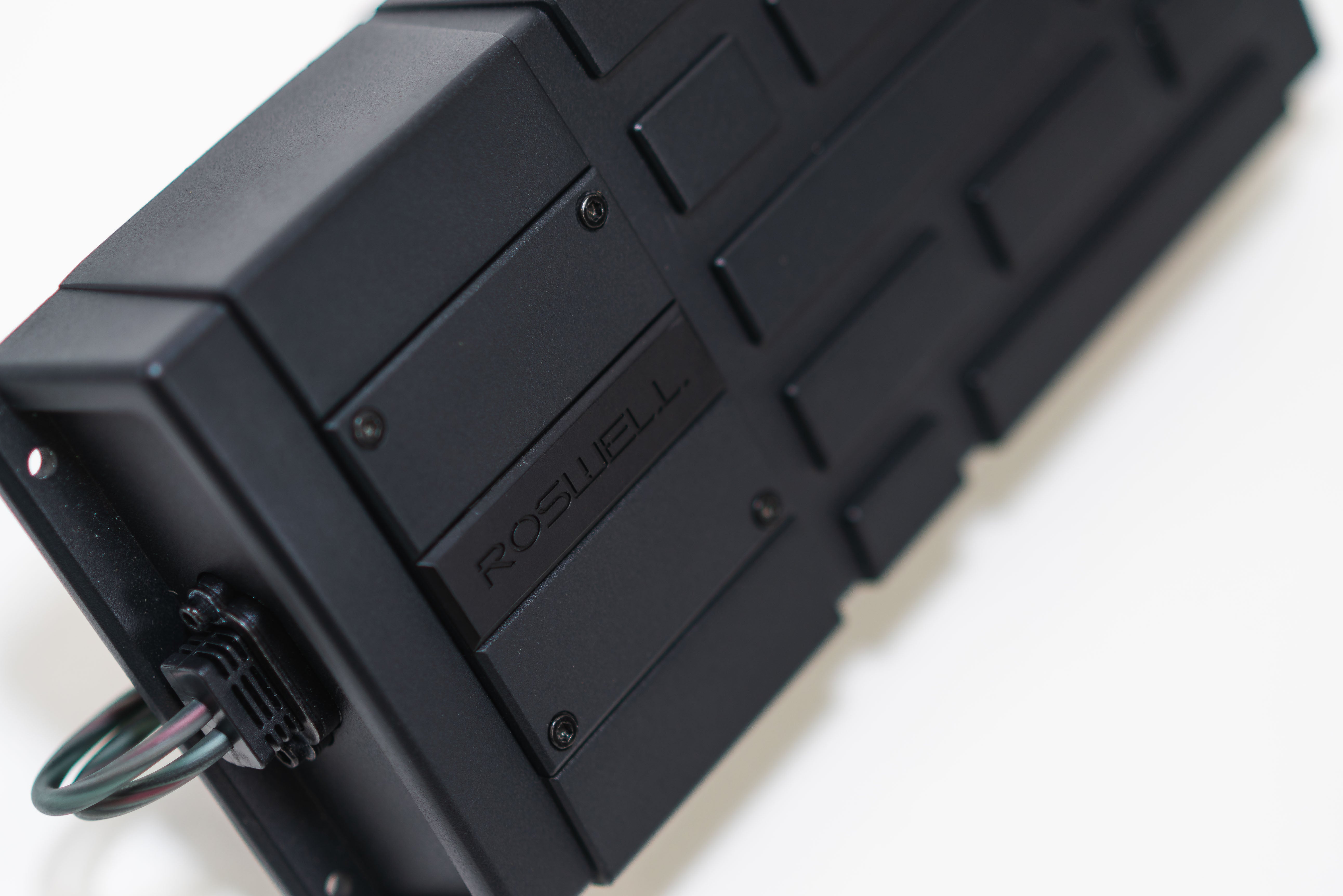

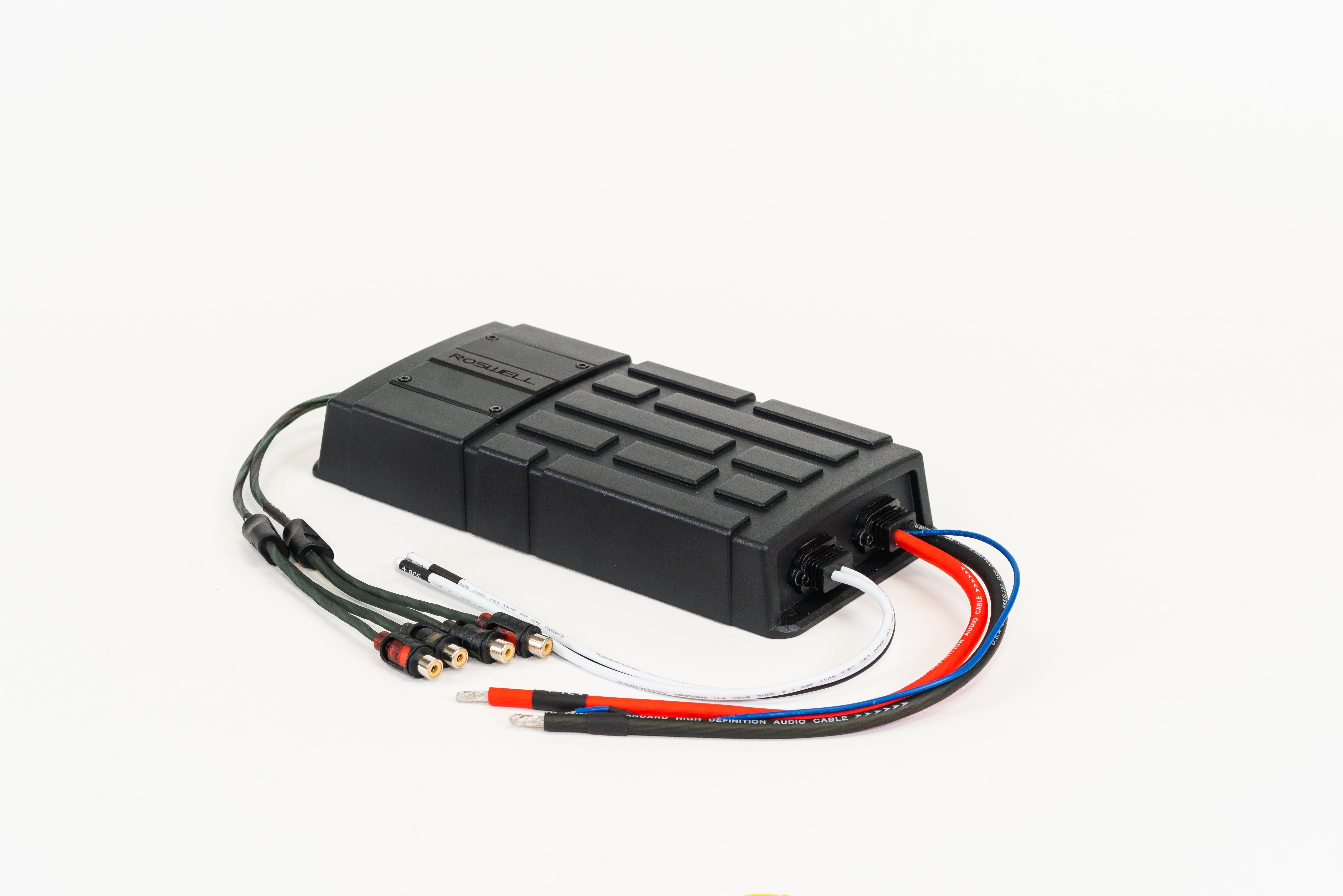

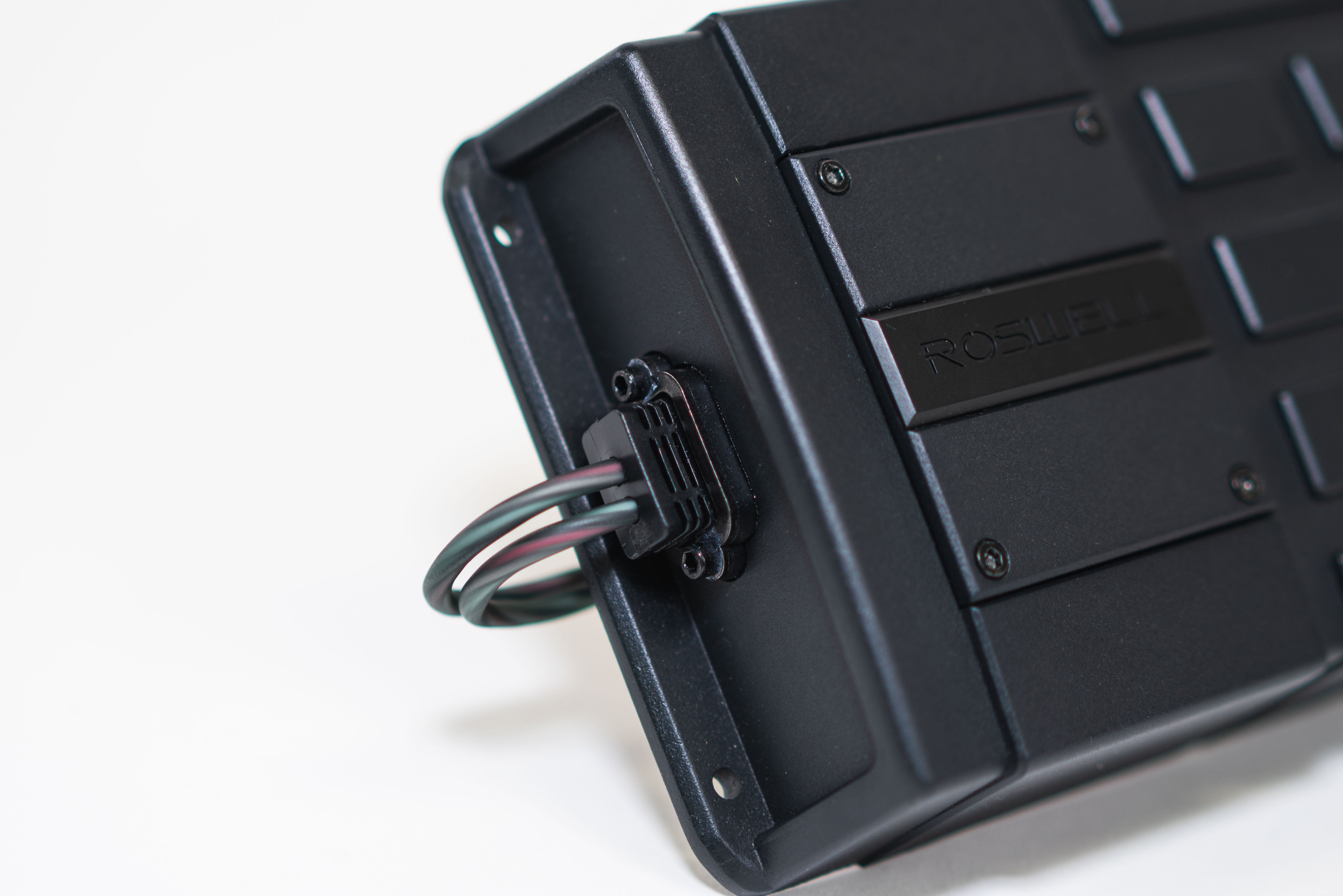

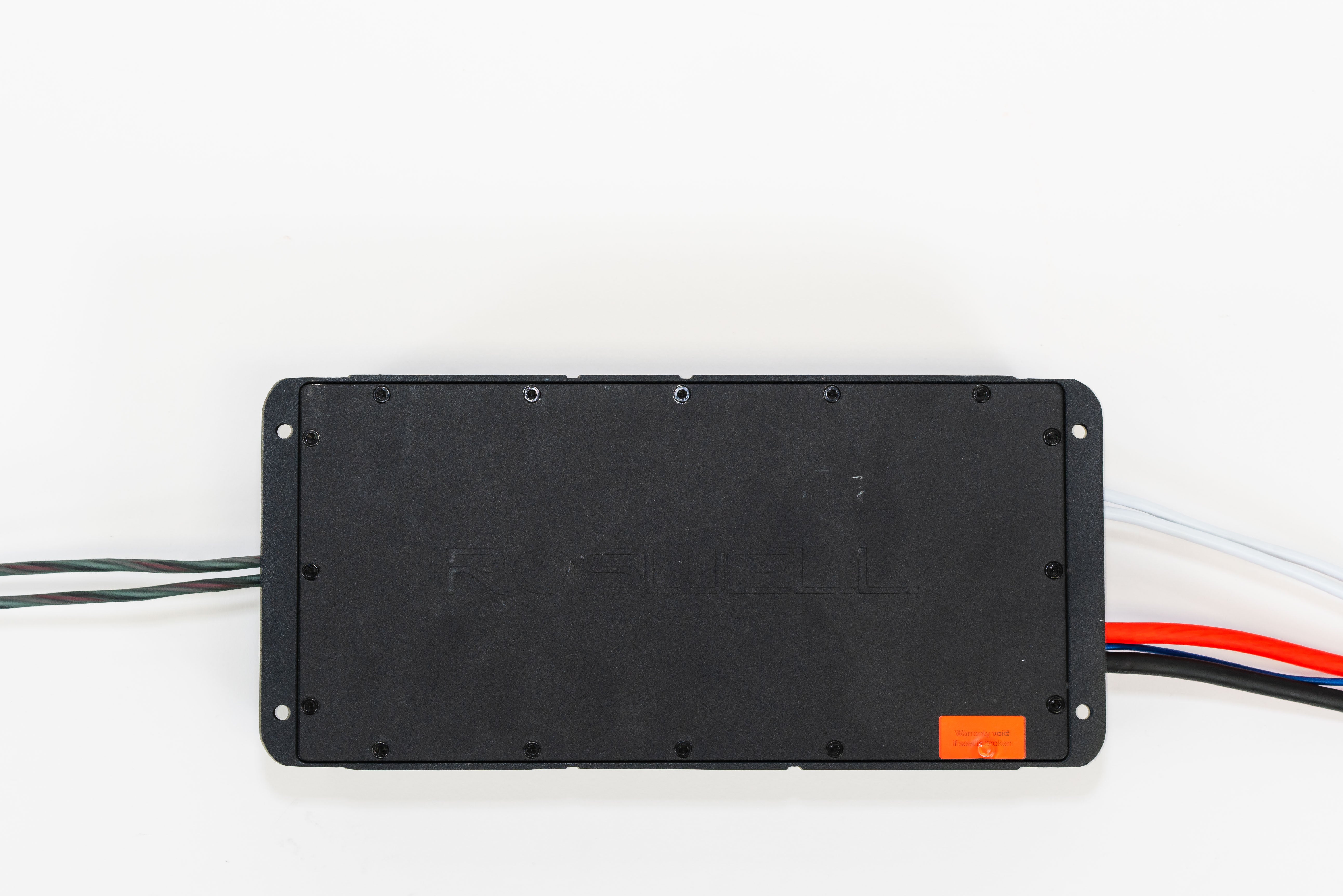

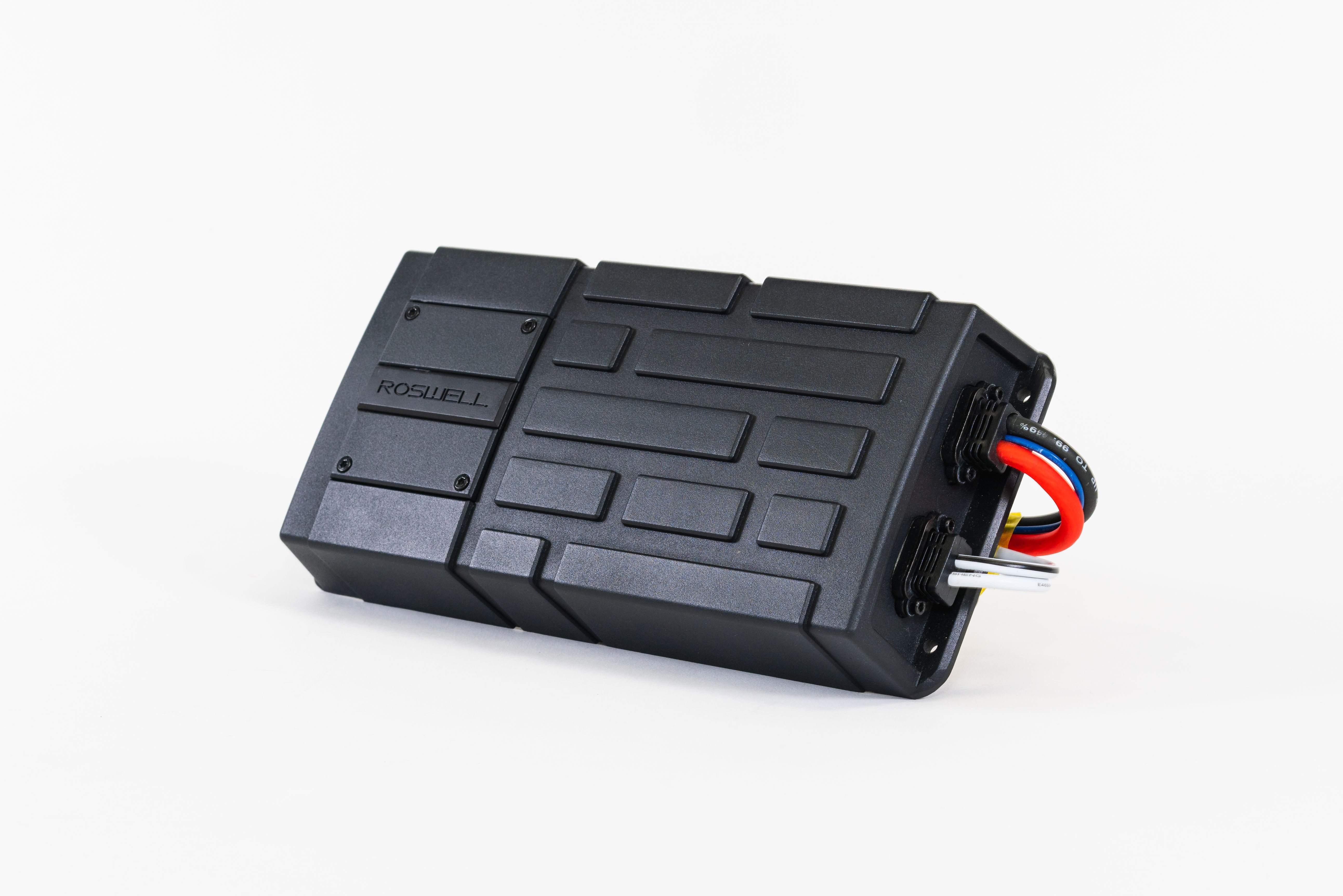

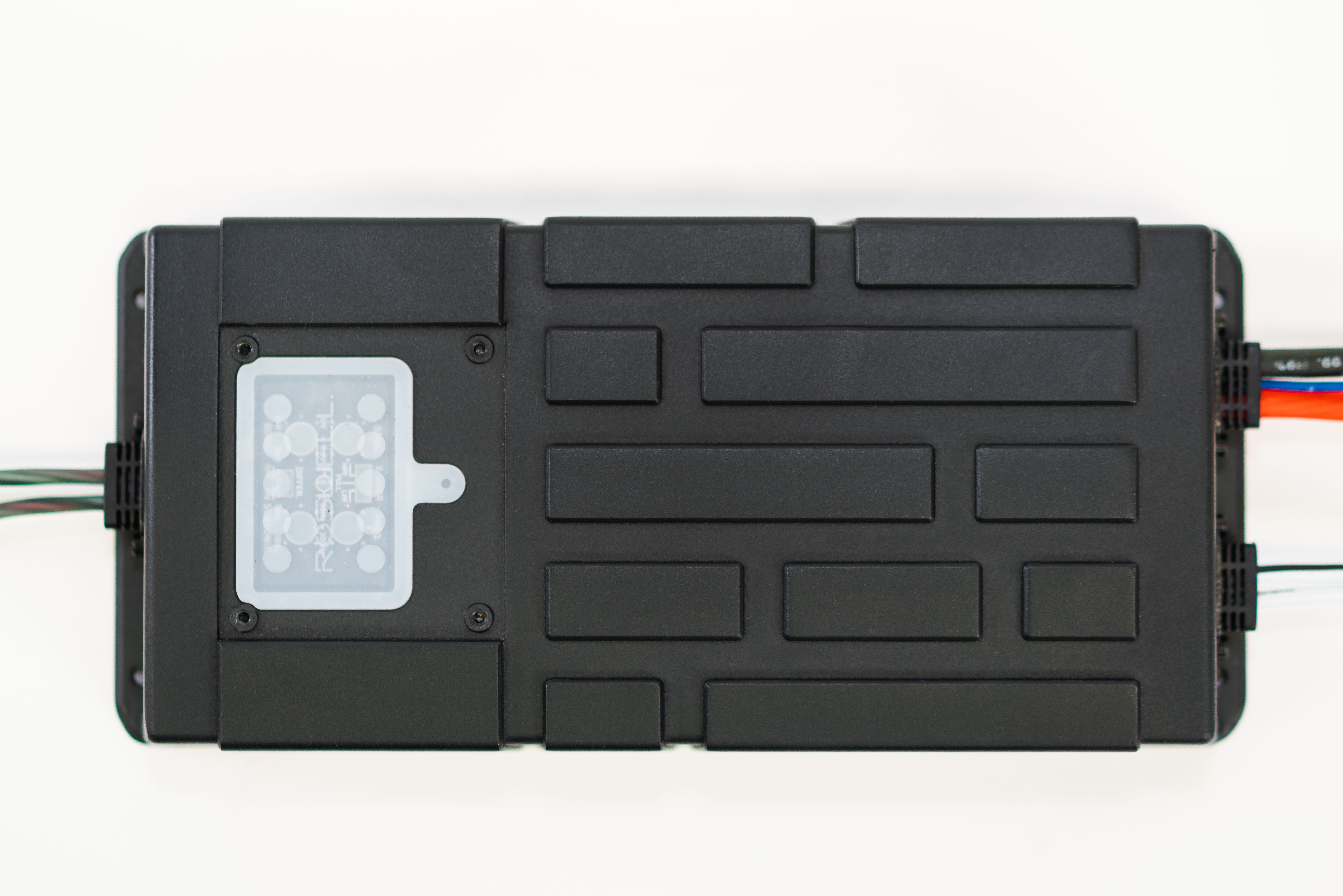

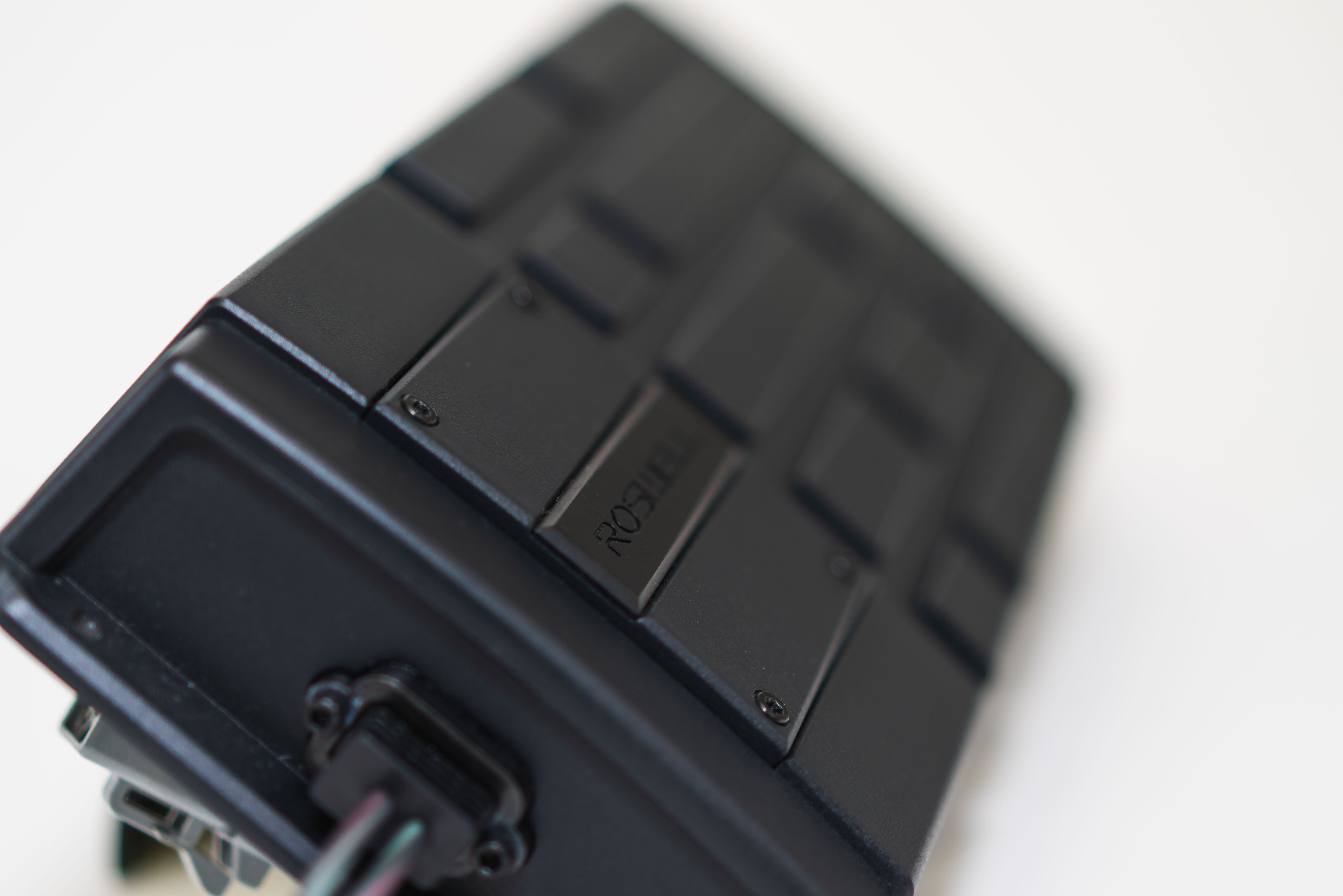

Roswell OFFROAD SD 500.1 Compact Amplifier

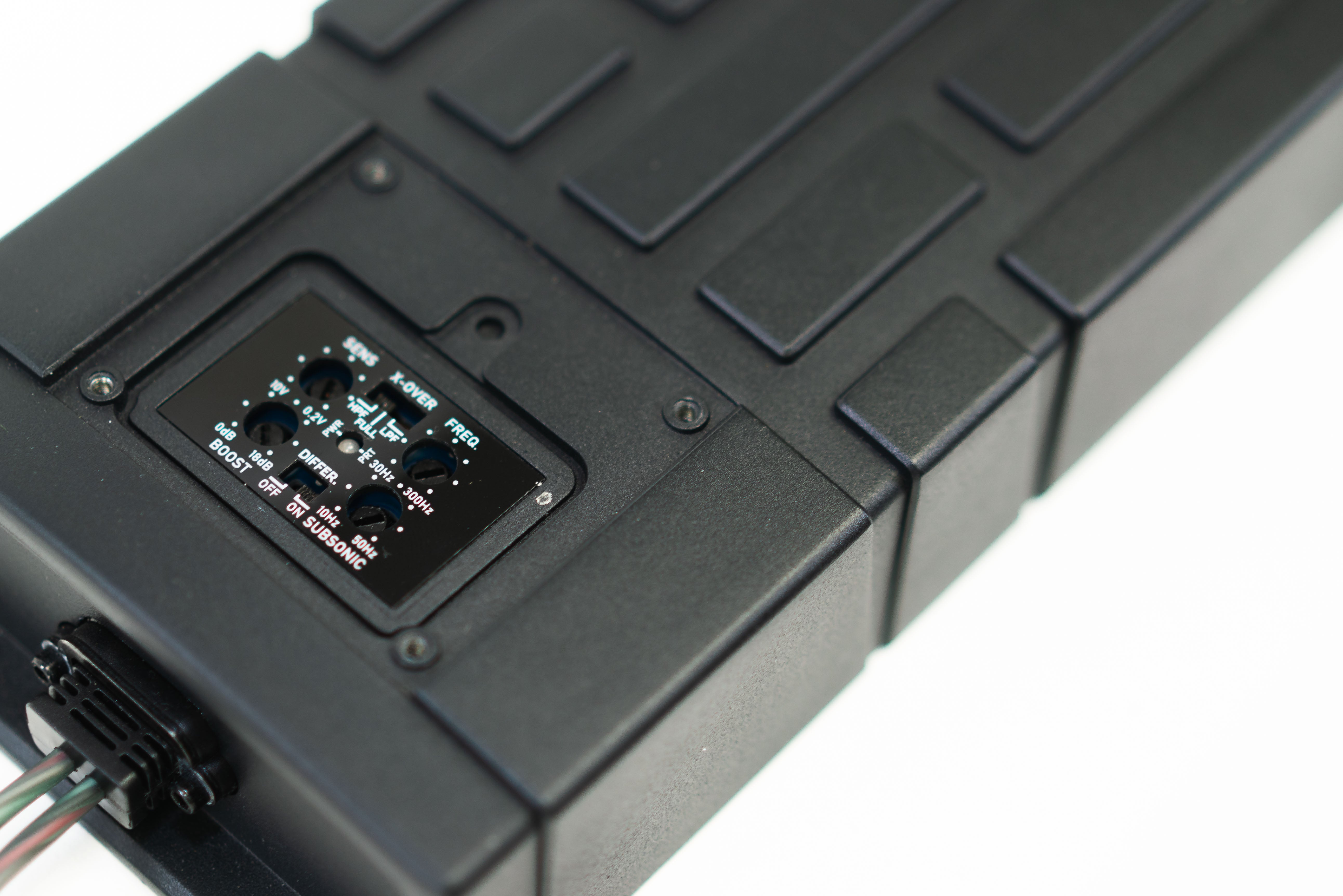

Compact mono OFFROAD amplifier for a subwoofer installation, with IP66 protection and adjustable crossover controls.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 2 files & links ↓Key features
- Conformally coated circuit boards
- Switchable differential RCA input
- RCA line-output passthrough
- Mounting screws and Allen key supplied
Specifications
| Part number | C960-21006 |
|---|---|
| RMS output at 1 Ω | 750 W × 1 |
| RMS output at 2 Ω | 500 W × 1 |
| RMS output at 4 Ω | 300 W × 1 |
| Input sensitivity | 0.2–10 V |
| HPF / LPF range | 30–300 Hz |
| Subsonic filter | 10–55 Hz |
| Bass EQ | 0–18 dB at 45 Hz |
| Dimensions (H × W × L) | 1.7 × 4.6 × 10 in |
| Ingress protection | IP66 |
