Roswell Marine · Amplifiers

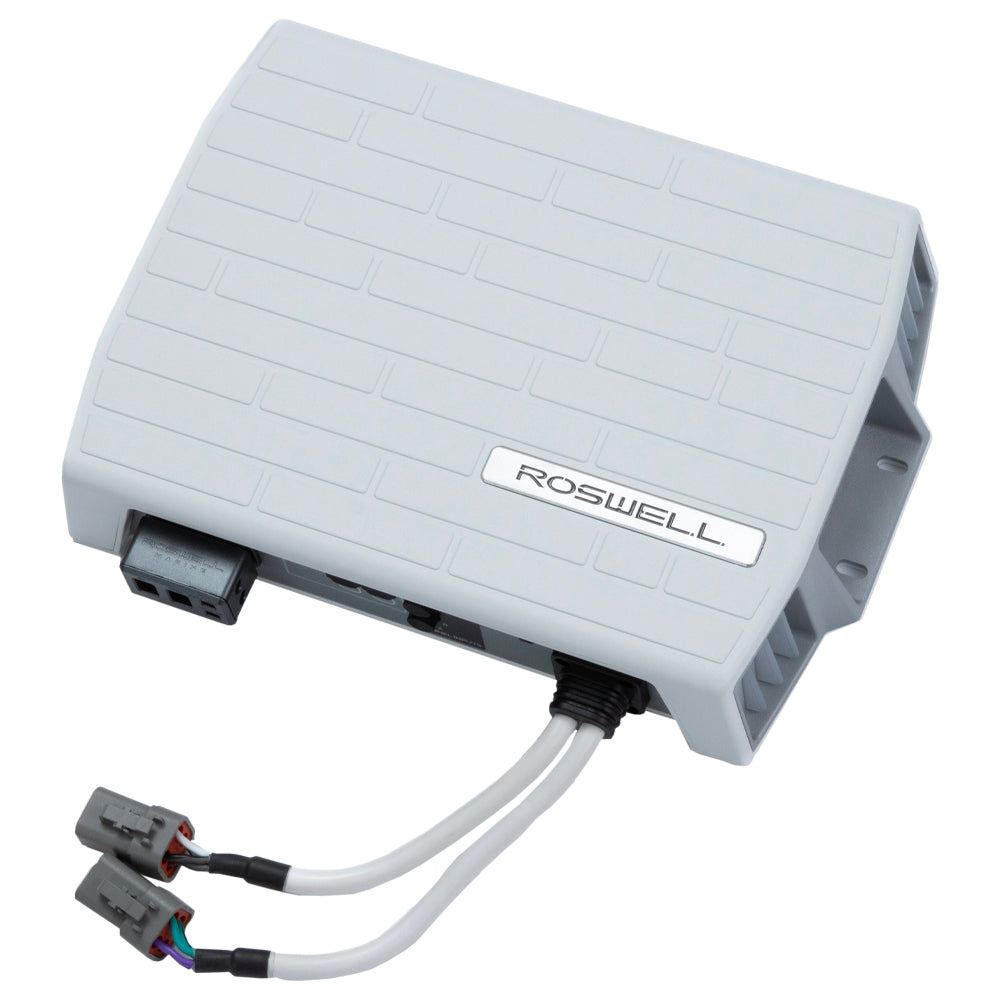

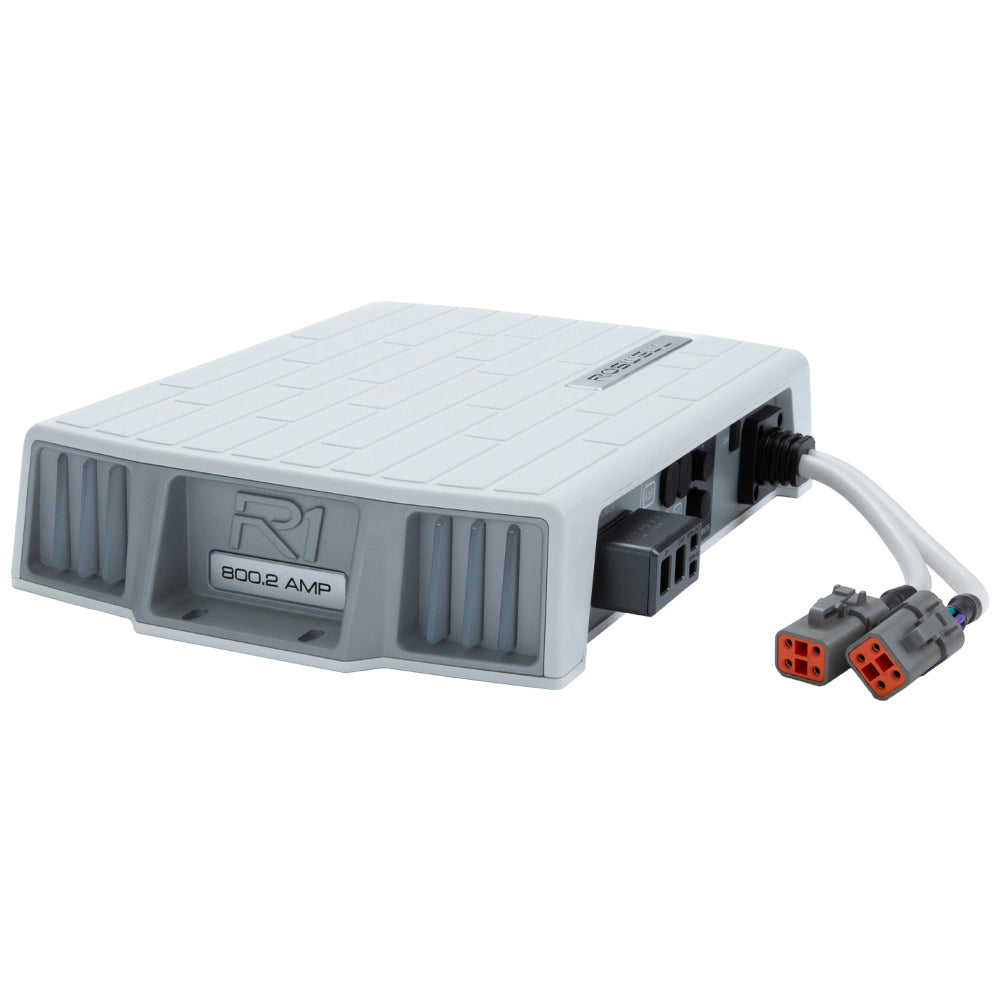

R1 Pro 800.2 Marine Amplifier with GaN Technology
R1 Pro 800.2 marine amplifier using GaN technology, DSP and A2B digital audio for integration with the R1 Pro system.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 2 files & links ↓Key features
- GaN Class-D architecture
- DSP configuration with R1 Pro Compose
- A2B digital audio connectivity
- Stackable enclosure
Specifications
| Part number | C920-24112 |
|---|---|
| Continuous Power (RMS) | 200W @4Ω | 400W @2Ω |
| Bridged Power (RMS) | ~800W @4Ω (Next-Generation Output Topology) |
| True Differential Rca Input Sensitivity | 6V RMS |
| Signal/Noise Ratio | 107dB unweighted |
| Thd+N At Rated Power @ 4Ω | <0.3% 20 Hz - 20 kHz |
| Frequency Response | (+/- 0.5 db): 20 Hz-20 kHz |
Product resources
Documentation
Manuals, technical information and catalogues for R1 Pro 800.2 Marine Amplifier with GaN Technology.
Product documents & support
Brand catalogue
