Roswell Marine · Amplifiers

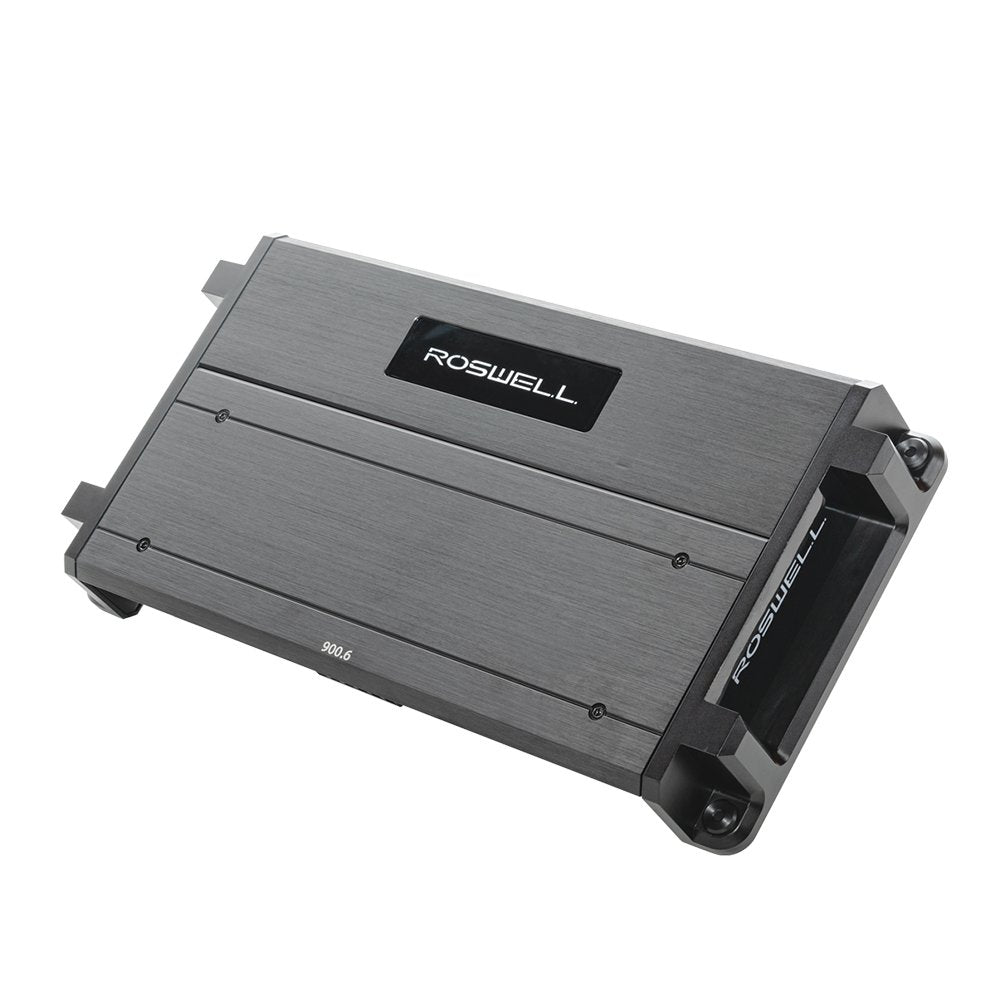

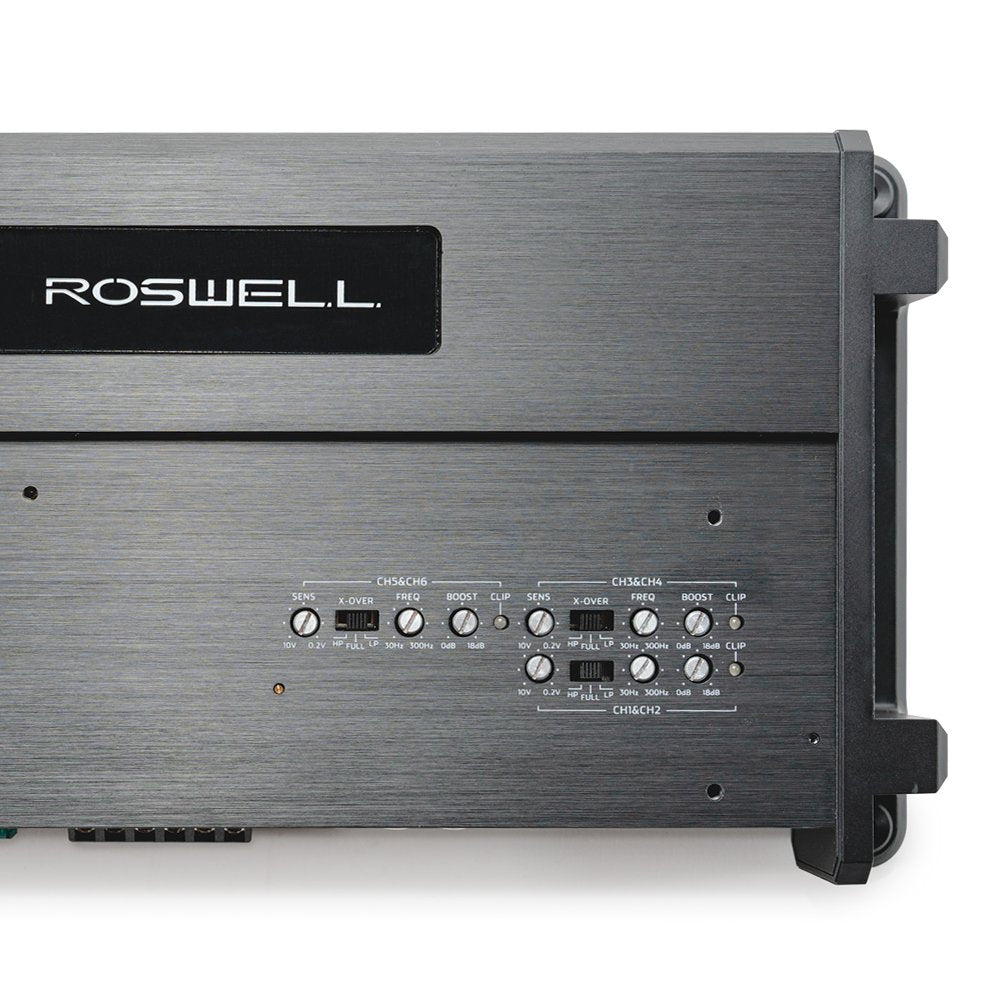

R1 900.6 Marine Amplifier
Six-channel Class-D marine amplifier with bridging and adjustable crossover controls for a multi-speaker system.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 3 files & links ↓Key features
- Six output channels with bridgeable pairs
- Differential RCA inputs
- Coated circuit boards and nickel-plated terminals
Specifications
| Part number | C920-1836SD |
|---|---|
| Continuous Power (RMS) | 4Ω: 100W x 6 2Ω: 165W x 6 |
| Bridged | 4Ω: 300W x 3 |
| Input Sensitivity | 0.2 – 10.0V |
| Hpf (high-pass filter) | 30Hz – 300Hz |
| Lpf (low-pass filter) | 30Hz – 300Hz |
| Bass Eq | 0 ~18dB @ 45Hz |
| Dimensions | Inches: 1.90 x 7.06 x 13.67 Centimeters: 4.83 x 17.94 x 34.74 |
Product resources
Documentation
Manuals, technical information and catalogues for R1 900.6 Marine Amplifier.
