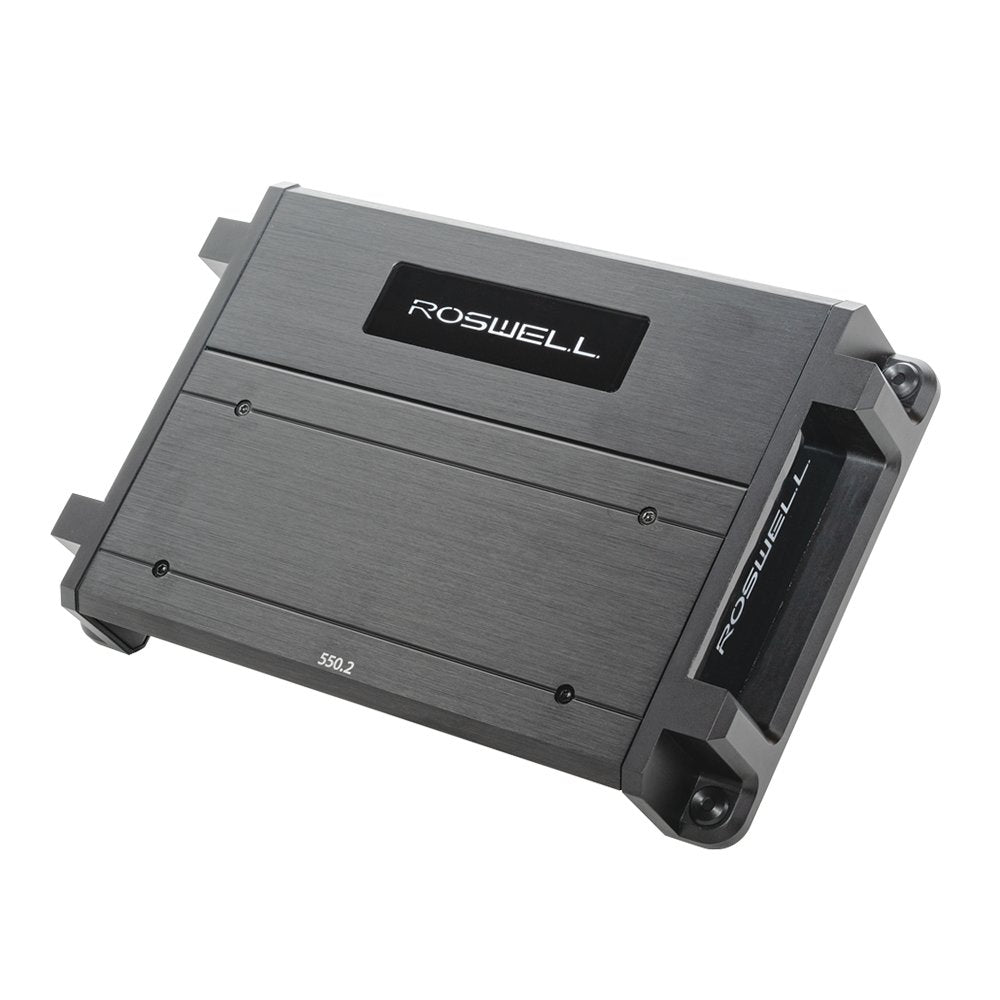

R1 550.2 Marine Amplifier
Class-D bridgeable 2-channel amplifier.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 3 files & links ↓Key features
- Two Class-D channels, bridgeable to a single higher-power channel
- Drives tower speakers or a subwoofer depending on configuration
- Conformal-coated board and marine-grade hardware
- Supplied in the R1 Pro Marine Audio Package
Specifications
| Part number | C920-1832SD |
|---|---|
| Continuous Power (RMS) | 4Ω: 165W x 2 2Ω: 275W x 2 |
| Bridged | 4Ω: 550W x 1 |
| Input Sensitivity | 0.2 – 10.0V |
| Hpf (high-pass filter) | 30Hz – 300Hz |
| Lpf (low-pass filter) | 30Hz – 300Hz |
| Bass Eq | 0 ~18dB @ 45Hz |
| Subsonic Filter | 10 Hz – 55 Hz |
| Phase Control | 0-180º |
| Dimensions | Inches: 1.90 x 7.0625 x 11.125 Centimeters: 4.83 x 17.94 x 28.26 |
