Roswell Marine · Amplifiers

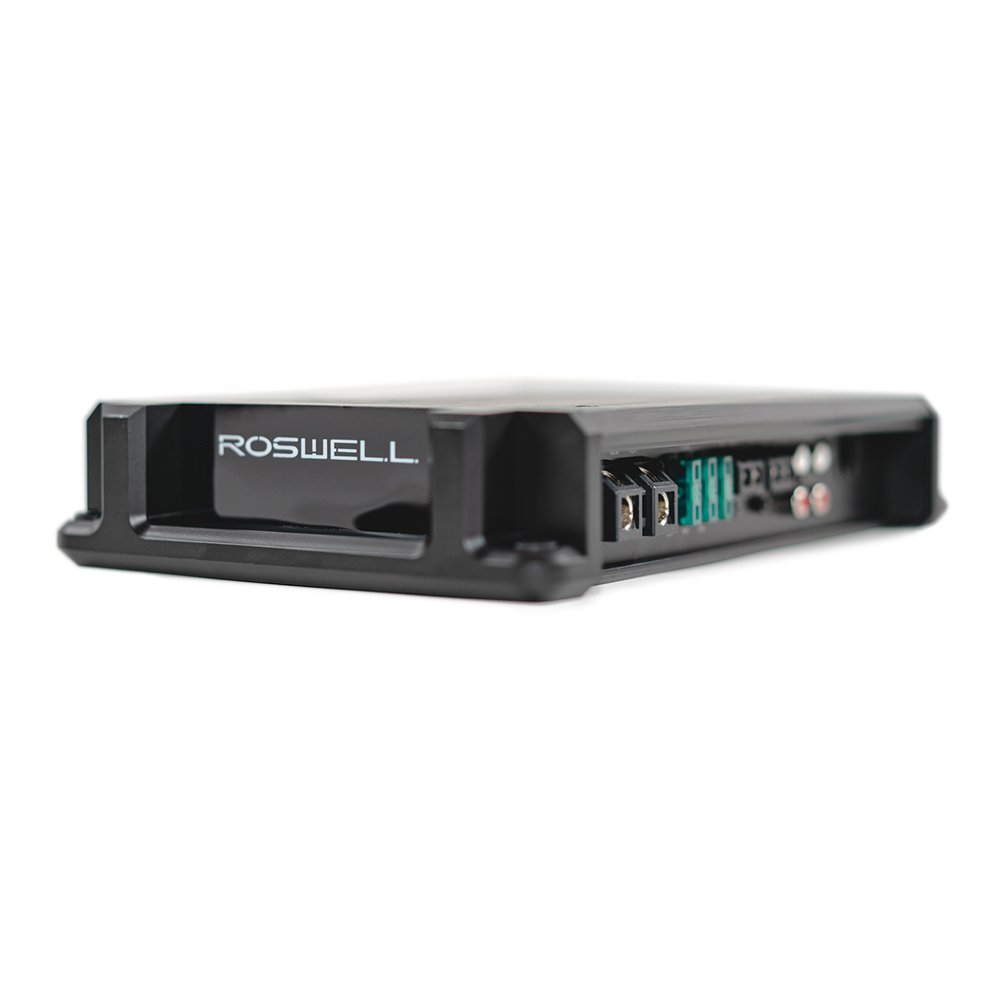

R1 1000.1 Marine Amplifier
Class-D mono amplifier — 1000 W for subwoofer duty.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 4 files & links ↓Key features
- Mono Class-D channel dedicated to driving a subwoofer
- Conformal-coated board and marine-grade hardware
- Compact chassis for engine-bay or locker mounting
Specifications
| Part number | C920-1831SD |
|---|---|
| Continuous Power (RMS) | 4Ω: 400W 2Ω: 675W 1Ω: 1000W |
| Frequency Response | 10Hz – 400Hz |
| Input Sensitivity | 0.2 – 10.0V |
| Hpf (high-pass filter) | 30Hz – 300Hz |
| Lpf (low-pass filter) | 30Hz – 300Hz |
| Bass Eq | 0 ~18dB @ 45Hz |
| Subsonic Filter | 10Hz – 55Hz |
| Dimensions | Inches: 1.90 x 7.06 x 11.125 Centimeters: 4.83 x 17.94 x 28.26 |
