Ratio Electric · Shore Power Inlets
Shore Power Outlets
Shore power outlets for the dock or vessel.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 3 files & links ↓Key features
- MP16, MP32 and MP50 systems comply with ISO 13297 for pleasure craft up to 24 m
- IP56 water- and dust-proof, with a waterproof bayonet locking cap
- Solid cast marine-grade 316 stainless steel or glass-filled PA6 housings
- Based on IEC 60309, the world standard for outdoor connections
- Pre-assembled moulded cord sets in PUR (H07BQ-F) with LED power indication
Specifications
| Model selection | Ratings and options below apply to the identified manufacturer article. |
|---|---|

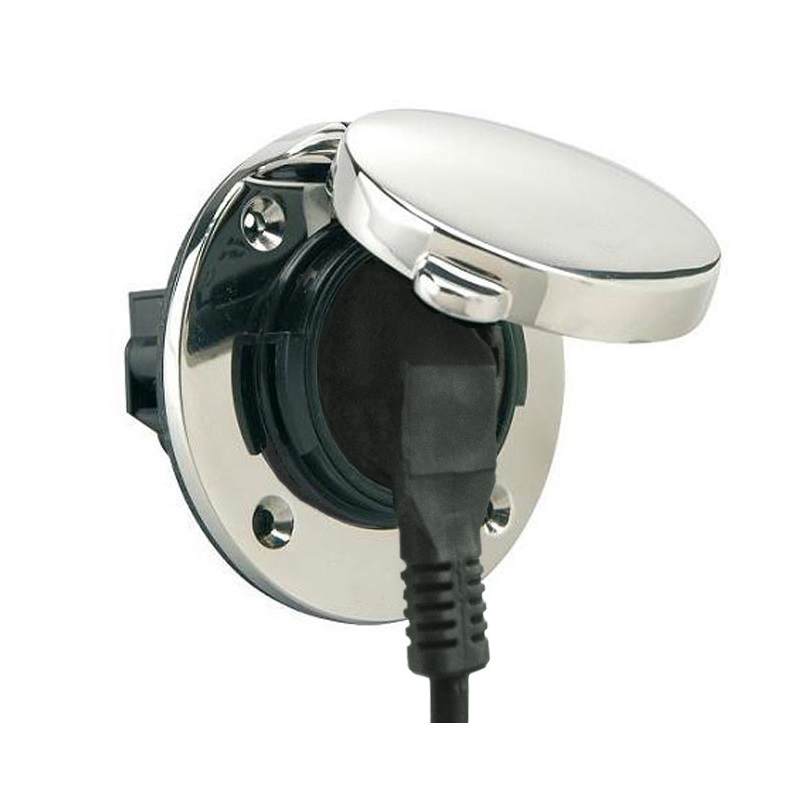

| MP16-230 | Shore Power Stainless Steel Schuko Outlet · Max Current (A): 16A/250V · Outlet: Schuko · Protection Class: IP56 · Finish: 316 stainless steel |
| MP16-230-K | Shore Power Polyamid Schuko Outlet · Max Current (A): 16A/250V · Outlet: Schuko · Protection Class: IP56 · Finish: polyamid PA6 |

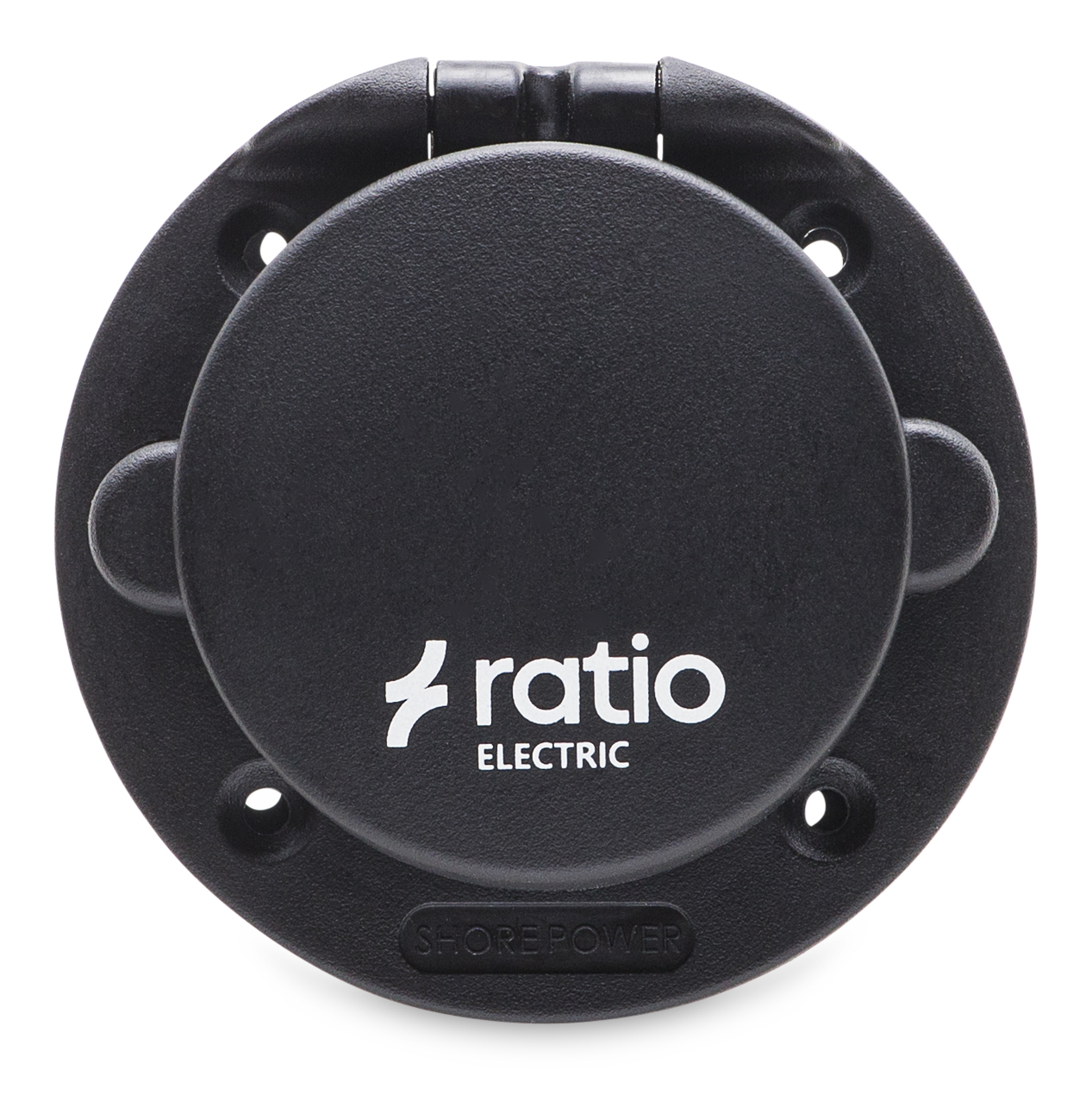

| MP16-230-KZ | Shore Power Black Polyamid Schuko Outlet · Max Current (A): 16A/250V · Outlet: Schuko · Protection Class: IP56 · Finish: polyamid PA6 black |
| MP16-230-KX | Shore Power Chrome Plated Polyamid Schuko Outlet · Max Current (A): 16A/250V · Outlet: Schuko · Protection Class: IP56 · Finish: polyamid PA6 chrome plated |
| MP16-230-SQ | Shore Power Stainless Steel Schuko Square Outlet · Max Current (A): 16A/250V · Outlet: Schuko · Protection Class: IP56 · Finish: 316 stainless steel |
Product resources
Documentation
Manuals, technical information and catalogues for Shore Power Outlets.
