Ratio Electric · Shore Power Inlets

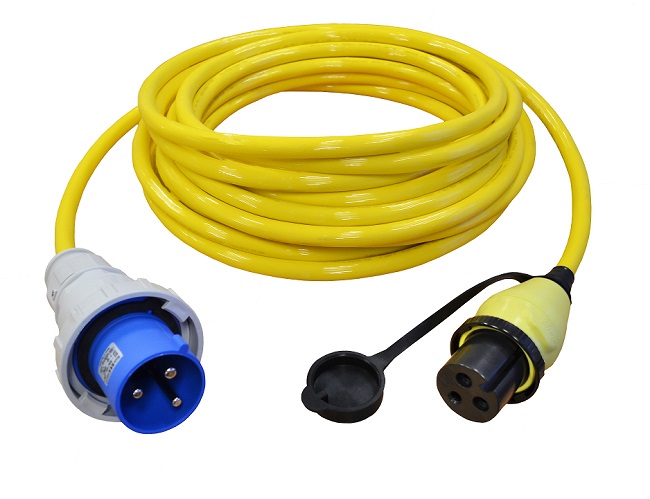

Shore Power MP Cordsets
MP-type shore power cordsets.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 3 files & links ↓Key features
- MP16, MP32 and MP50 systems comply with ISO 13297 for pleasure craft up to 24 m

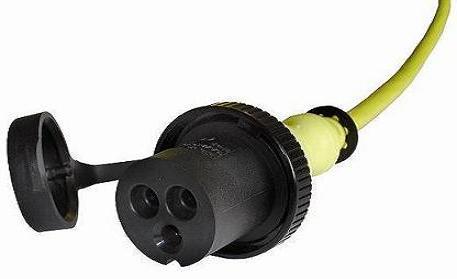

- IP56 water- and dust-proof, with a waterproof bayonet locking cap
- Solid cast marine-grade 316 stainless steel or glass-filled PA6 housings
- Based on IEC 60309, the world standard for outdoor connections
- Pre-assembled moulded cord sets in PUR (H07BQ-F) with LED power indication
Specifications
| Model selection | Ratings and options below apply to the identified manufacturer article. |
|---|---|
| 2801 | Shore Power Cable MP16-CEE H07BQ-F 3G1,50mm² 15m · Max Rating: 10A/250V · Cable Length (M): 15 · Cable Type: H07BQ-F 3G1,50mm² · Cable Jacket Material: PUR · Protection Class: IP44 |
| 2823 | Shore Power Cable MP16-CEE H07BQ-F 3G2,50mm² 5m · Max Rating: 16A/250V · Cable Length (M): 5 · Cable Type: H07BQ-F 3G2,50mm² · Cable Jacket Material: PUR · Protection Class: IP44 |
| 2821 | Shore Power Cable MP16-CEE H07BQ-F 3G2,50mm² 15m · Max Rating: 16A/250V · Cable Length (M): 15 · Cable Type: H07BQ-F 3G2,50mm² · Cable Jacket Material: PUR · Protection Class: IP44 |
| 2822 | Shore Power Cable MP16-CEE H07BQ-F 3G2,50mm² 25m · Max Rating: 16A/250V · Cable Length (M): 25 · Cable Type: H07BQ-F 3G2,50mm² · Cable Jacket Material: PUR · Protection Class: IP44 |
| 2836 | Shore Power Cable MP32-CEE H07BQ-F 3G4,00mm² 15m · Max Rating: 25A/250V · Cable Length (M): 15 · Cable Type: H07BQ-F 3G4,00mm² · Cable Jacket Material: PUR · Protection Class: IP44 |
| 2832 | Shore Power Cable MP32-CEE H07BQ-F 3G4,00mm² 25m · Max Rating: 25A/250V · Cable Length (M): 25 · Cable Type: H07BQ-F 3G4,00mm² · Cable Jacket Material: PUR · Protection Class: IP44 |
| 2837 | Shore Power Cable MP32-CEE H07BQ-F 3G6,00mm² 15m · Max Rating: 32A/250V · Cable Length (M): 15 · Cable Type: H07BQ-F 3G6,00mm² · Cable Jacket Material: PUR · Protection Class: IP44 |
| 2838 | Shore Power Cable MP32-CEE H07BQ-F 3G6,00mm² 25m · Max Rating: 32A/250V · Cable Length (M): 25 · Cable Type: H07BQ-F 3G6,00mm² · Cable Jacket Material: PUR · Protection Class: IP44 |
