Ratio Electric · Shore Power Inlets
Shore Power AC16 System Components
Individual components for the AC16 system.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 3 files & links ↓Key features
- MP16, MP32 and MP50 systems comply with ISO 13297 for pleasure craft up to 24 m
- IP56 water- and dust-proof, with a waterproof bayonet locking cap
- Solid cast marine-grade 316 stainless steel or glass-filled PA6 housings
- Based on IEC 60309, the world standard for outdoor connections
- Pre-assembled moulded cord sets in PUR (H07BQ-F) with LED power indication
Specifications
| Model selection | Ratings and options below apply to the identified manufacturer article. |
|---|---|
| AC16-01 | Stainless Steel Inlet with cord · Max Current (A): 16A/230V · Length (M): 0,3 |
| AC16-01-K | Polyamid Inlet with cord · Max Current (A): 16A/230V · Length (M): 0,3 |
| AC16-01-KX | Chrome plated Inlet with cord · Max Current (A): 16A/230V · Length (M): 0,3 |

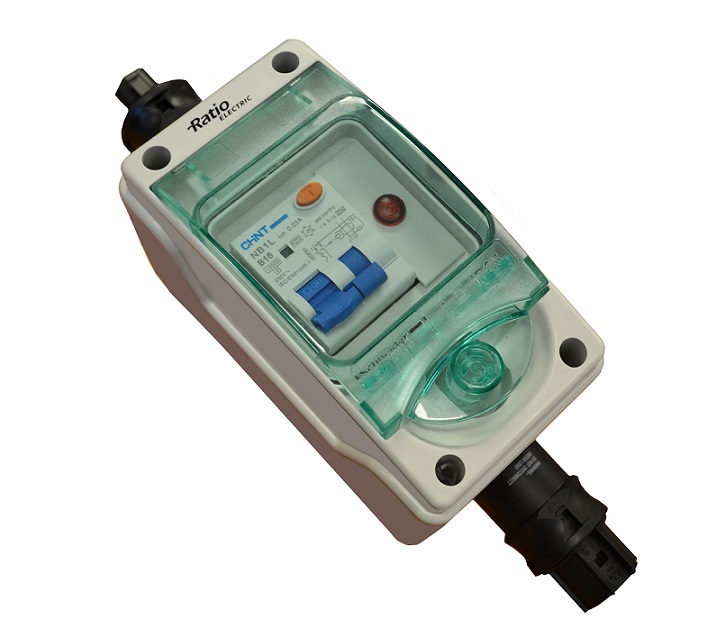

| AC16-03 | Electrical Cabinet Basic · Max Current (A): 1x RCBO 30mA / 16A · Length (M): n/a |
| AC16-02-1 | Internal Cable H07RN-F 3G2,50mm² · Max Current (A): 20A/230V · Length (M): 1 |
| AC16-02-2 | Internal Cable H07RN-F 3G2,50mm² · Max Current (A): 20A/230V · Length (M): 2 |
| AC16-02-3 | Internal Cable H07RN-F 3G2,50mm² · Max Current (A): 20A/230V · Length (M): 3 |
| AC16-02-4 | Internal Cable H07RN-F 3G2,50mm² · Max Current (A): 20A/230V · Length (M): 4 |
| AC16-02-5 | Internal Cable H07RN-F 3G2,50mm² · Max Current (A): 20A/230V · Length (M): 5 |
| AC16-23 | Wall Socket IP56 · Max Current (A): 16A/230V · Length (M): n/a |
| AC16-07-1 | Wall Socket 1-way IP55 · Max Current (A): 16A/230V · Length (M): n/a |
| AC16-07-2 | Wall Socket 2-way IP55 · Max Current (A): 16A/230V · Length (M): n/a |
| AC16-17 | Wall Socket 1-way FLUSH white · Max Current (A): 16A/230V · Length (M): n/a |

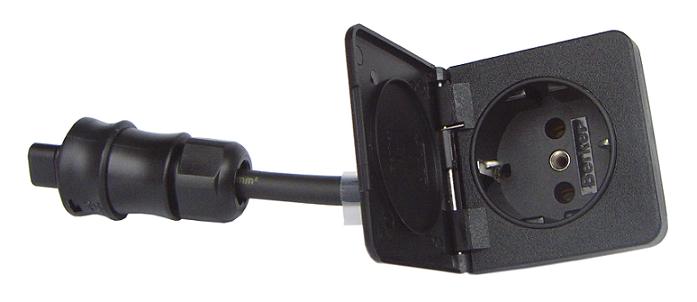

| AC16-18 | Wall Socket 1-way FLUSH black · Max Current (A): 16A/230V · Length (M): n/a |
| AC16-19 | Wall Socket 1-way FLUSH brown · Max Current (A): 16A/230V · Length (M): n/a |
| AC16-20 | Galvanic Isolator · Max Current (A): 16A/230V · Length (M): n/a |
| AC16-06 | Splitter 1:3 · Max Current (A): 16A/230V · Length (M): n/a |
