Ratio Electric · Prolink Cords

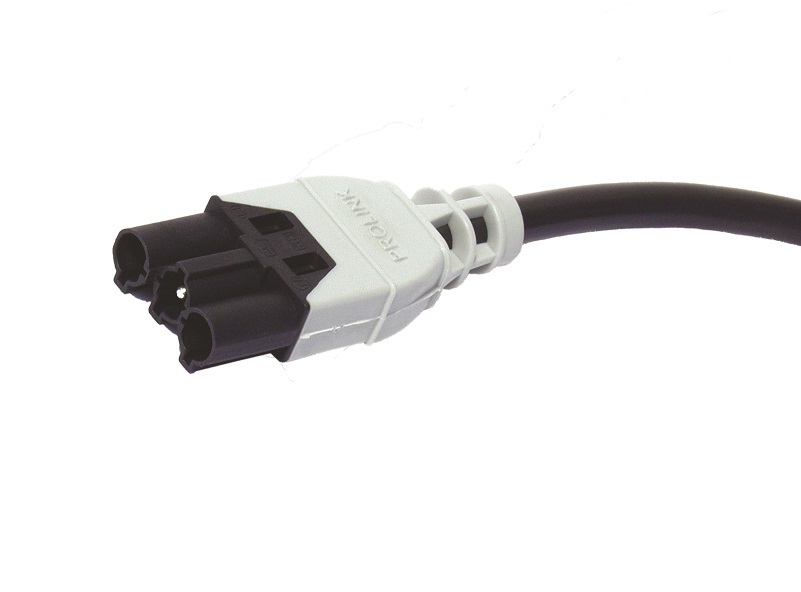

Prolink Male–Female Cordsets
Interconnection leads for compatible Prolink installation systems, available in six lengths.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 2 files & links ↓Key features
- 16 A / 250 V family
- Male and female Prolink connectors
Specifications
| 1774-05 | Max. Rating: 16A/250V · Plug: Prolink male · Connector: Prolink female · Cable: H05VV-F 3G1,50mm² · Cable Length (M): 0,5 |
|---|---|
| 1774-10 | Max. Rating: 16A/250V · Plug: Prolink male · Connector: Prolink female · Cable: H05VV-F 3G1,50mm² · Cable Length (M): 1 |
| 1774-20 | Max. Rating: 16A/250V · Plug: Prolink male · Connector: Prolink female · Cable: H05VV-F 3G1,50mm² · Cable Length (M): 2 |
| 1774-30 | Max. Rating: 16A/250V · Plug: Prolink male · Connector: Prolink female · Cable: H05VV-F 3G1,50mm² · Cable Length (M): 3 |
| 1774-40 | Max. Rating: 16A/250V · Plug: Prolink male · Connector: Prolink female · Cable: H05VV-F 3G1,50mm² · Cable Length (M): 4 |
| 1774-50 | Max. Rating: 16A/250V · Plug: Prolink male · Connector: Prolink female · Cable: H05VV-F 3G1,50mm² · Cable Length (M): 5 |
Product resources
Documentation
Manuals, technical information and catalogues for Prolink Male–Female Cordsets.
