Ratio Electric · Power Solutions

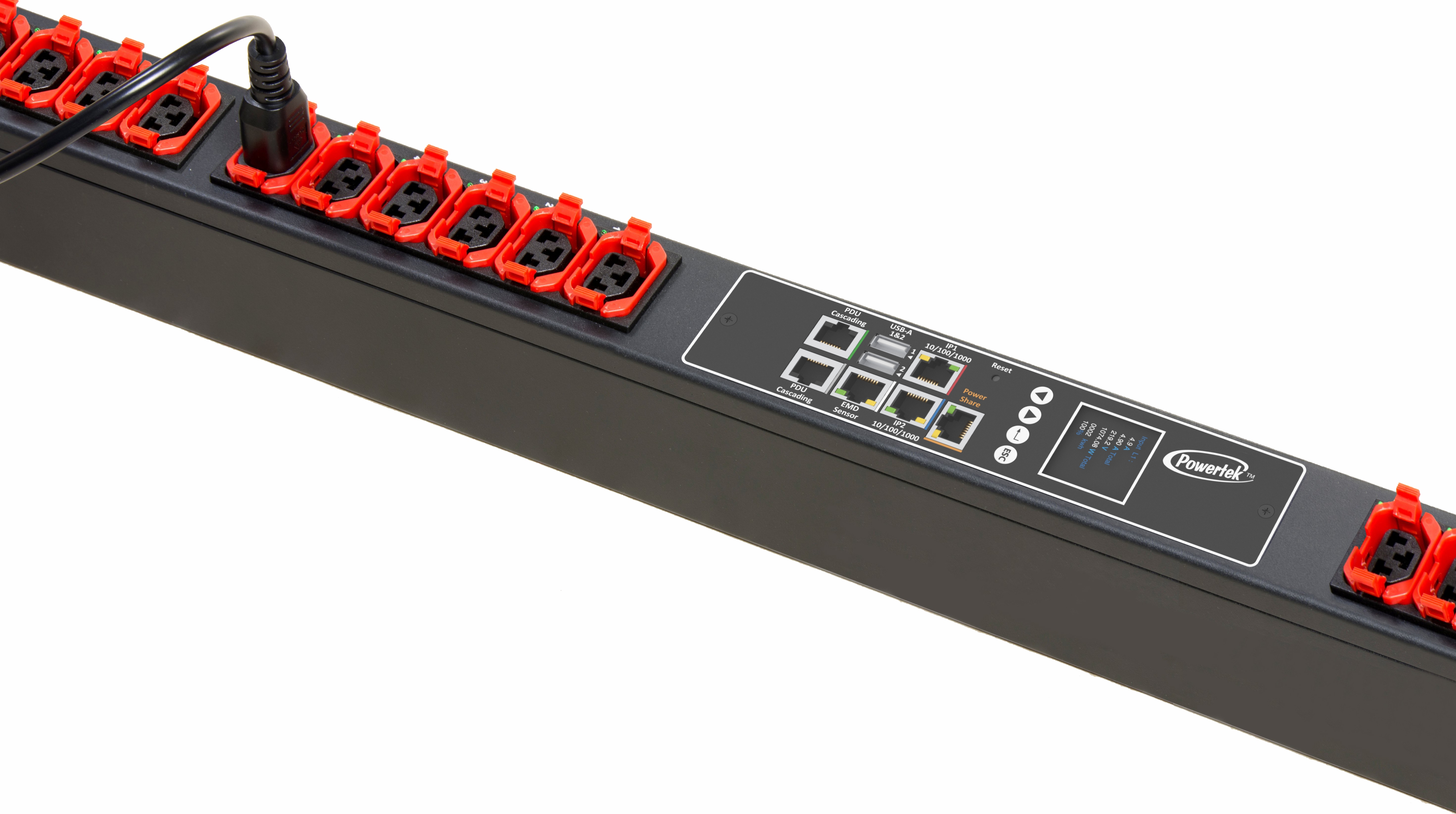

IPDU Per Outlet Switched
Metered intelligent PDU with remote internet access and per-outlet switching.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 2 files & links ↓Key features
- Basic and intelligent power distribution units for marinas, workshops and events
- Metered and individually switchable outlets on intelligent models
- Industrial CEE (IEC 60309) and Schuko outlet configurations
- Cords, plugs and components to build a complete distribution chain
- Weather-resistant enclosures for exposed dockside positions
Specifications
| Model selection | Ratings and options below apply to the identified manufacturer article. |
|---|---|
| POS-V-36-24IEX | IPDU POS 1x16A, 24xIEX, H05VV-F3G1.5mm² 3M CEE plug · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 24x IEX · Input Plug: CEE 3-pins · Length Housing (Mm): 1212 · Cable Type: H05VV-F3G1,5mm2 |
| POS-V-72-24IEX | IPDU POS 1x32A, 24xIEX, H07RN-F3G4mm² 3M CEE plug · Max. Current (A): 32 · Rated Voltage / Phase: 230V / 1~ · Outlets: 24x IEX · Input Plug: CEE 3-pins · Length Housing (Mm): 1412 · Cable Type: H07RN-F3G4mm² |
| POS-V-11-24IEX | IPDU POS 3x16A, 24xIEX, H07RN-F5G2,5mm² 3M CEE plug · Max. Current (A): 16 · Rated Voltage / Phase: 400V / 3~ · Outlets: 24x IEX · Input Plug: CEE 5-pins · Length Housing (Mm): 1600 · Cable Type: H07RN-F5G2,5mm² |
| POS-V-22-24IEX | IPDU POS 3x32A, 24xIEX, H07RN-F5G4mm² 3M CEE plug · Max. Current (A): 32 · Rated Voltage / Phase: 400V / 3~ · Outlets: 24x IEX · Input Plug: CEE 5-pins · Length Housing (Mm): 1832 · Cable Type: H07RN-F5G4mm² |
| POS-V-36-36IEX | IPDU POS 1x16A, 36xIEX, H05VV-F3G1.5mm² 3M CEE plug · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 36x IEX · Input Plug: CEE 3-pins · Length Housing (Mm): 1520 · Cable Type: H05VV-F3G1,5mm2 |
| POS-V-72-36IEX | IPDU POS 1x32A, 36xIEX, H07RN-F3G4mm² 3M CEE plug · Max. Current (A): 32 · Rated Voltage / Phase: 230V / 1~ · Outlets: 36x IEX · Input Plug: CEE 3-pins · Length Housing (Mm): 1712 · Cable Type: H07RN-F3G4mm2 |
| POS-V-11-36IEX | IPDU POS 3x16A, 36xIEX, H07RN-F5G2,5mm² 3M CEE plug · Max. Current (A): 16 · Rated Voltage / Phase: 400V / 3~ · Outlets: 36x IEX · Input Plug: CEE 5-pins · Length Housing (Mm): 1600 · Cable Type: H07RN-F5G2,5mm² |
| POS-V-22-36IEX | IPDU POS 3x32A, 36xIEX, H07RN-F5G4mm² 3M CEE plug · Max. Current (A): 32 · Rated Voltage / Phase: 400V / 3~ · Outlets: 36x IEX · Input Plug: CEE 5-pins · Length Housing (Mm): 1832 · Cable Type: H07RN-F5G4mm² |
| POS-V-36-10C13F-OSB | IPDU POS 1x16A, 10xC13, HIB 2.1 Conform, 3M CEE plug · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 10x IEC C13 · Input Plug: CEE 3-pins · Length Housing (Mm): 1182 · Cable Type: H05VV-F3G1,5mm2 |
| POS-V-36-10SF-OSB | IPDU POS 1x16A, 10xSchuko, HIB 2.1 Conform, 3M CEE plug · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 10x Schuko · Input Plug: CEE 3-pins · Length Housing (Mm): 1254 · Cable Type: H05VV-F3G1,5mm2 |
Product resources
Documentation
Manuals, technical information and catalogues for IPDU Per Outlet Switched.
