Ratio Electric · Power Solutions

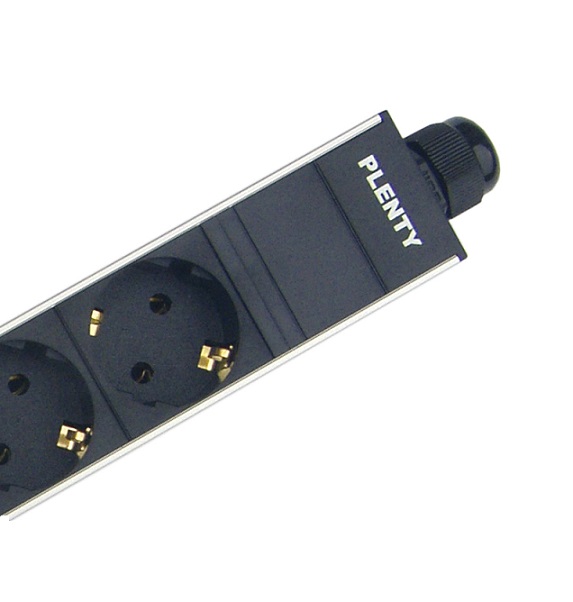

PDU Basic without Power Cord
Basic PDU with Schuko and/or C13 outlets, no power cord.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 2 files & links ↓Key features
- Basic and intelligent power distribution units for marinas, workshops and events
- Metered and individually switchable outlets on intelligent models
- Industrial CEE (IEC 60309) and Schuko outlet configurations
- Cords, plugs and components to build a complete distribution chain
- Weather-resistant enclosures for exposed dockside positions
Specifications
| Model selection | Ratings and options below apply to the identified manufacturer article. |
|---|---|
| PLA290-5KW | PDU 1x16A, 5xSchuko, Cable Gland · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 5x Schuko · Inlet: - · Length Housing (Mm): 19" · Remarks: Cable Gland PG13 |
| PLA416-8KW | PDU 1x16A, 8xSchuko, Cable Gland · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 8x Schuko · Inlet: - · Length Housing (Mm): 19" · Remarks: Cable Gland PG13 |
| PLA435-12C13KW | PDU 1x16A, 12xC13, Cable Gland · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 12x C13 · Inlet: - · Length Housing (Mm): 19" · Remarks: Cable Gland PG13 |

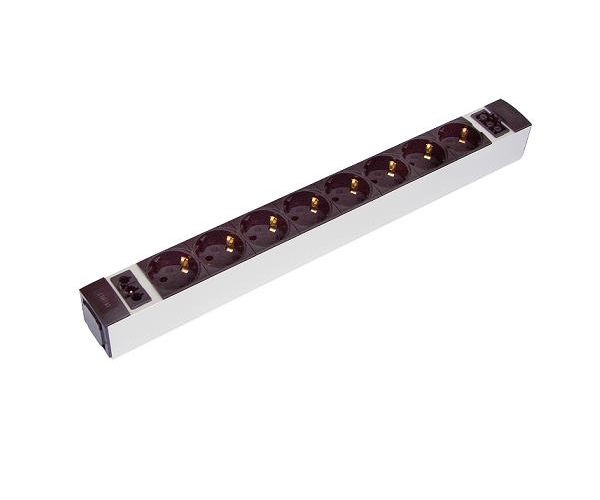

| PLA435-8GST | PDU 1x16A, 8xSchuko, Prolink Inlet/Outlet · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 8x Schuko · Inlet: Prolink · Length Housing (Mm): 19" · Remarks: Prolink outlet |
| PLA435-6-4GST | PDU 1x16A, 6xC13+4xSchuko, Prolink Inlet/Outlet · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 6x C13 + 4x Schuko · Inlet: Prolink · Length Housing (Mm): 19" · Remarks: Prolink outlet |
| PLA435-12GST | PDU 1x16A, 12xC13, Prolink Inlet/Outlet · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 12x C13 · Inlet: Prolink · Length Housing (Mm): 19" · Remarks: Prolink outlet |
Product resources
Documentation
Manuals, technical information and catalogues for PDU Basic without Power Cord.
