PDU Basic Single Phase
Ratio Electric · Power Solutions

PDU Basic Single Phase

Basic PDU with Schuko and/or C13 and/or C19 outlets.

Enquire about this product

Ask our team about compatibility, current pricing and availability.

Ask about this product on WhatsApp ↗

View documentation 2 files & links ↓

Key features

  • Basic and intelligent power distribution units for marinas, workshops and events
  • Metered and individually switchable outlets on intelligent models
  • Industrial CEE (IEC 60309) and Schuko outlet configurations
  • Cords, plugs and components to build a complete distribution chain
  • Weather-resistant enclosures for exposed dockside positions

Specifications

Model selectionRatings and options below apply to the identified manufacturer article.
PLA435-11-IEXPDU 1x16A, 11x IEX C13/C19, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 11x C13/C19 IEX · Input Plug: Schuko · Length Housing (Mm): 19" · Remarks: IEX outlets
PLA416-3-USBPDU 1x16A, 3xSchuko+USB, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 3x Schuko + 2x USB · Input Plug: Schuko · Length Housing (Mm): 19"
PLA206-4PDU 1x16A, 4xSchuko, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 4x Schuko · Input Plug: Schuko · Length Housing (Mm): 206
PLA290-6PDU 1x16A, 6xSchuko, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 6x Schuko · Input Plug: Schuko · Length Housing (Mm): 290
PLA416-6PDU 1x16A, 6xSchuko, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 6x Schuko · Input Plug: Schuko · Length Housing (Mm): 19"
PLA416-6Z6PDU 1x16A, 6xSchuko, 6A MCB, Schuko Power Cord · Max. Current (A): 6 · Rated Voltage / Phase: 230V / 1~ · Outlets: 6x Schuko · Input Plug: Schuko · Length Housing (Mm): 19" · Remarks: MCB 6A, type C
PLA416-6Z16PDU 1x16A, 6xSchuko, 16A MCB, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 6x Schuko · Input Plug: Schuko · Length Housing (Mm): 19" · Remarks: MCB 16A, type C
PLA416-7OSBPDU 1x16A, 7xSchuko, Surge Protect, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 7x Schuko · Input Plug: Schuko · Length Housing (Mm): 19" · Remarks: overvoltage protection
PLA416-8LEDPDU 1x16A, 8xSchuko, LED, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 8x Schuko · Input Plug: Schuko · Length Housing (Mm): 19" · Remarks: LED indication
PLA416-8SPDU 1x16A, 8xSchuko, Switch, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 8x Schuko · Input Plug: Schuko · Length Housing (Mm): 19" · Remarks: ligthed switch

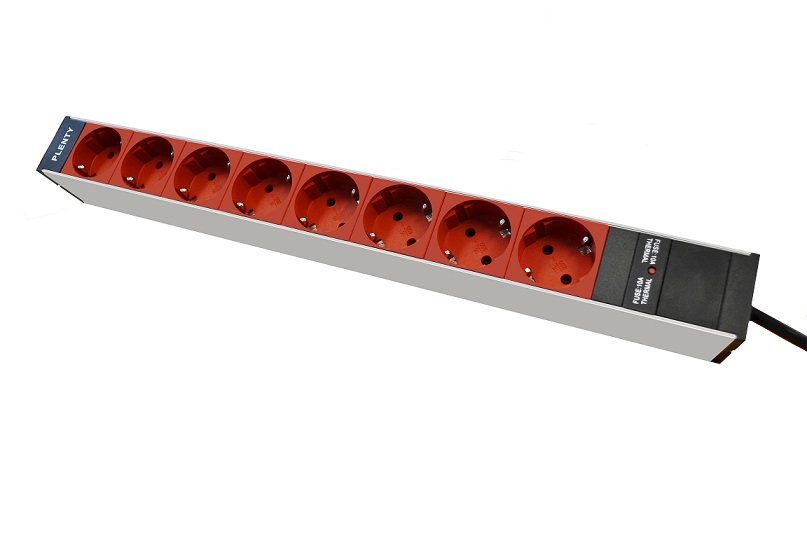

PLA416-8RC14PDU 1x10A, 8xSchuko red, 10A fuse, C14 Power Cord · Max. Current (A): 10 · Rated Voltage / Phase: 230V / 1~ · Outlets: 8x Schuko · Input Plug: C14 · Length Housing (Mm): 19" · Remarks: red outlets, 10A fuse

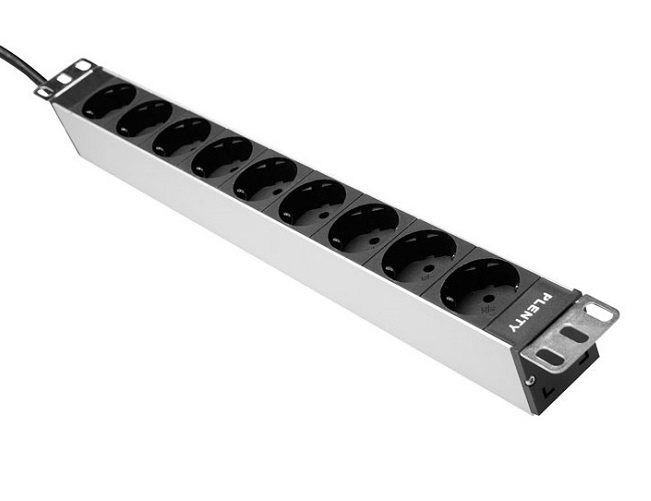

PLA416-9PDU 1x16A, 9xSchuko, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 9x Schuko · Input Plug: Schuko · Length Housing (Mm): 19"
PLA416-9-BLPDU 1x16A Black, 9xSchuko, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 9x Schuko · Input Plug: Schuko · Length Housing (Mm): 19" · Remarks: Black aluminium housing
PLA416-9-2CEEPDU 1x16A, 9xSchuko, 2m CEE Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 9x Schuko · Input Plug: CEE 3-pins · Length Housing (Mm): 19" · Remarks: power cord 2m long
PLA416-9G-2CEEPDU 1x16A, 9xSchuko gray, CEE Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 9x Schuko gray · Input Plug: CEE 3-pins · Length Housing (Mm): 19" · Remarks: power cord 2m long
PLA416-9R-2CEEPDU 1x16A, 9xSchuko red, CEE Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 9x Schuko red · Input Plug: CEE 3-pins · Length Housing (Mm): 19" · Remarks: power cord 2m long
PLA416-9-4CEEPDU 1x16A, 9xSchuko, 4m CEE Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 9x Schuko · Input Plug: CEE 3-pins · Length Housing (Mm): 19" · Remarks: power cord 4m long
PLA584-12PDU 1x16A, 12xSchuko, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 12x Schuko · Input Plug: Schuko · Length Housing (Mm): 584 (OU)
PLA584-12OSBPDU 1x16A, 12xSchuko, Surge Protect, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 12x Schuko · Input Plug: Schuko · Length Housing (Mm): 584 (OU) · Remarks: overvoltage protection
PLA435-8LOCKPDU 1x16A, 8xC13 Lock, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 8x C13 LOCK · Input Plug: Schuko · Length Housing (Mm): 19"
PLA435-8C13FPPDU 1x16A, 8xC13, 8xfuse, LED, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 8x C13 · Input Plug: Schuko · Length Housing (Mm): 19" · Remarks: 8x fuse, LED indication
PLA435-9-3PPDU 1x16A, 9xC13+3xSchuko, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 9x C13 + 3x Schuko · Input Plug: Schuko · Length Housing (Mm): 19"
PLA435-8-3PPDU 1x16A, 9x C13+3x C19, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 9x C13 + 3x C19 · Input Plug: Schuko · Length Housing (Mm): 19"
PLA435-12C13PPDU 1x16A, 12xC13, Schuko Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 12x C13 · Input Plug: Schuko · Length Housing (Mm): 19"
PLA435-12C13-CEEPDU 1x16A, 12xC13, CEE Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 12x C13 · Input Plug: CEE 3-pins · Length Housing (Mm): 19"
PLA435-12C13-C20PDU 1x16A, 12xC13, C20 Power Cord · Max. Current (A): 16 · Rated Voltage / Phase: 230V / 1~ · Outlets: 12x C13 · Input Plug: C20 · Length Housing (Mm): 19"
Product resources

Documentation

Manuals, technical information and catalogues for PDU Basic Single Phase.

2 files & links

Product documents & support

PDU Basic Single Phase — manufacturer models and detailsManufacturer page · opens in a new tab
Power Solutions — manufacturer brochurePDF · view or downloadDownload PDF ↓
