Ratio Electric · Perilex Cords
Perilex Power Cords
Perilex-to-open-end cords for compatible appliance installations, with model-specific current ratings, cable construction and lengths.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 2 files & links ↓Key features
- Moulded plug with strain relief
- Select the required 6 A or 16 A model
Specifications
| 1738 | Max. Rating: 6A, 250V/400V · Plug: Perilex · Connector: open end · Cable: H05VV-F 5G0,75mm² · Cable Length (M): 1,25 |
|---|---|

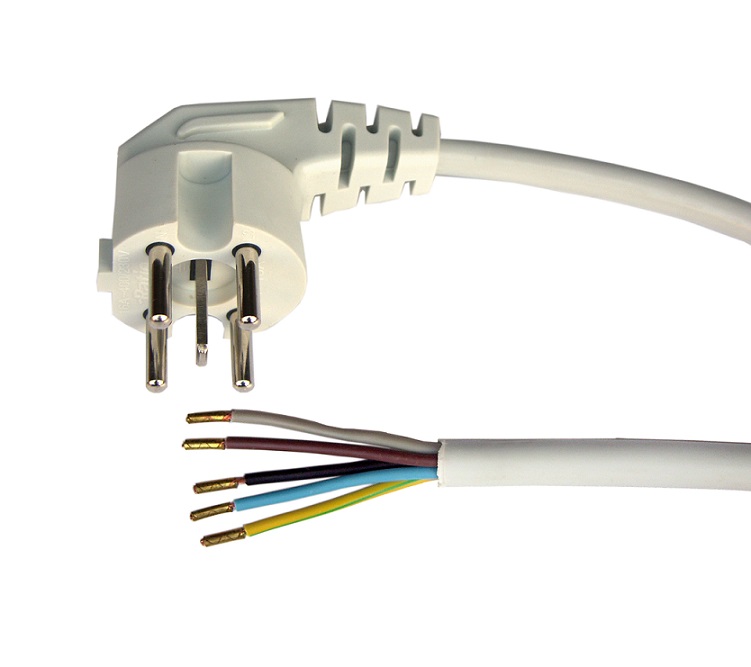

| 1737 | Max. Rating: 6A, 250V/400V · Plug: Perilex · Connector: open end · Cable: H05VV-F 5G0,75mm² · Cable Length (M): 2,0 |

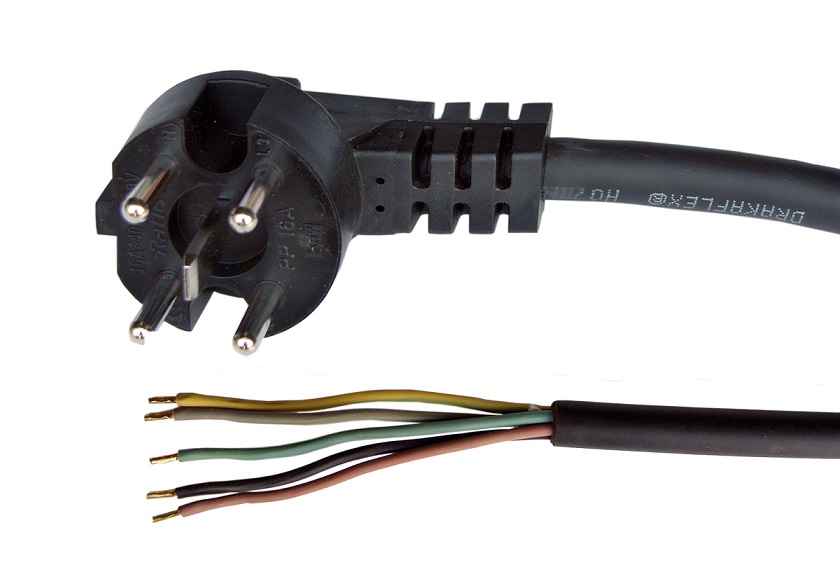

| 1750 | Max. Rating: 16A, 250V/400V · Plug: Perilex · Connector: open end · Cable: H07RN-F 5G1,50mm² · Cable Length (M): 1,5 |
| 1751 | Max. Rating: 16A, 250V/400V · Plug: Perilex · Connector: open end · Cable: H07RN-F 5G1,50mm² · Cable Length (M): 2,0 |
| 1752 | Max. Rating: 16A, 250V/400V · Plug: Perilex · Connector: open end · Cable: H07RN-F 5G1,50mm² · Cable Length (M): 3,0 |
| 1753 | Max. Rating: 16A, 250V/400V · Plug: Perilex · Connector: open end · Cable: H07RN-F 5G1,50mm² · Cable Length (M): 4,0 |
| 1771 | Max. Rating: 16A, 250V/400V · Plug: Perilex · Connector: open end · Cable: H07RN-F 5G2,50mm² · Cable Length (M): 2,0 |
Product resources
Documentation
Manuals, technical information and catalogues for Perilex Power Cords.
