Albin Group · Circulation Pumps

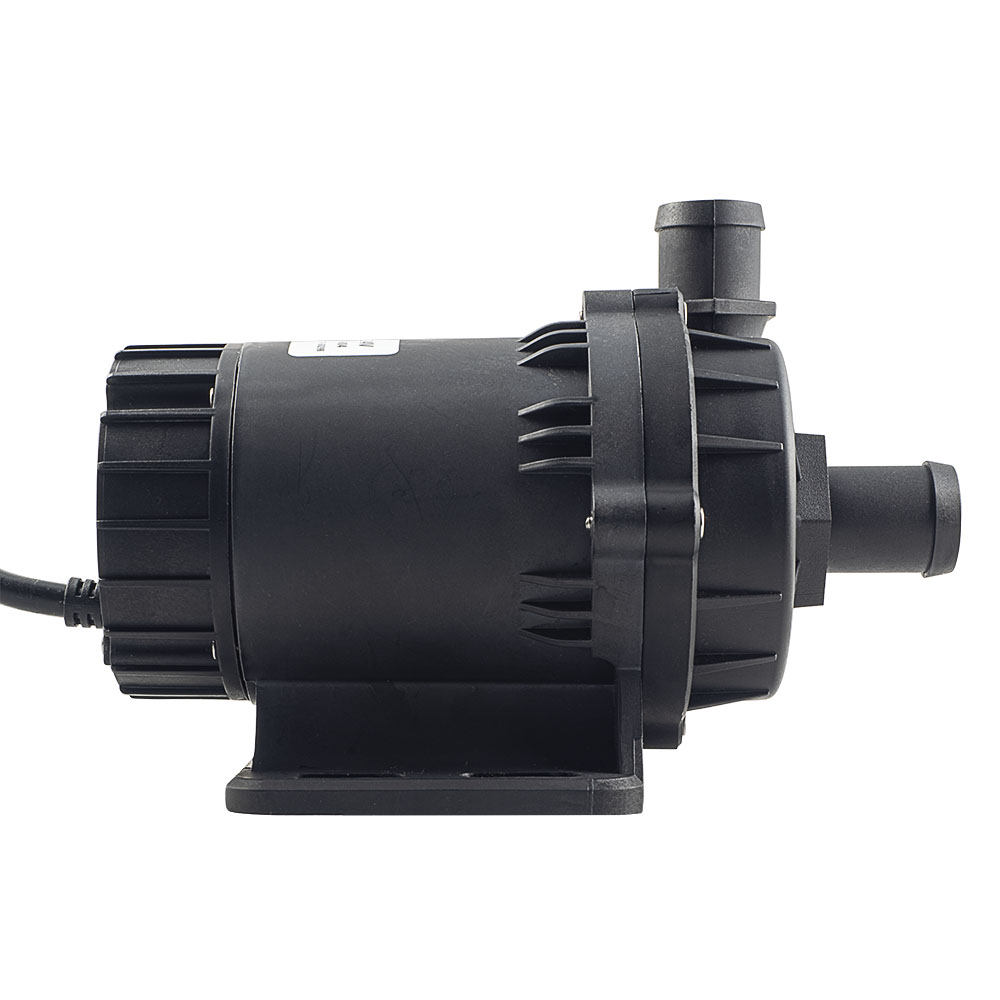

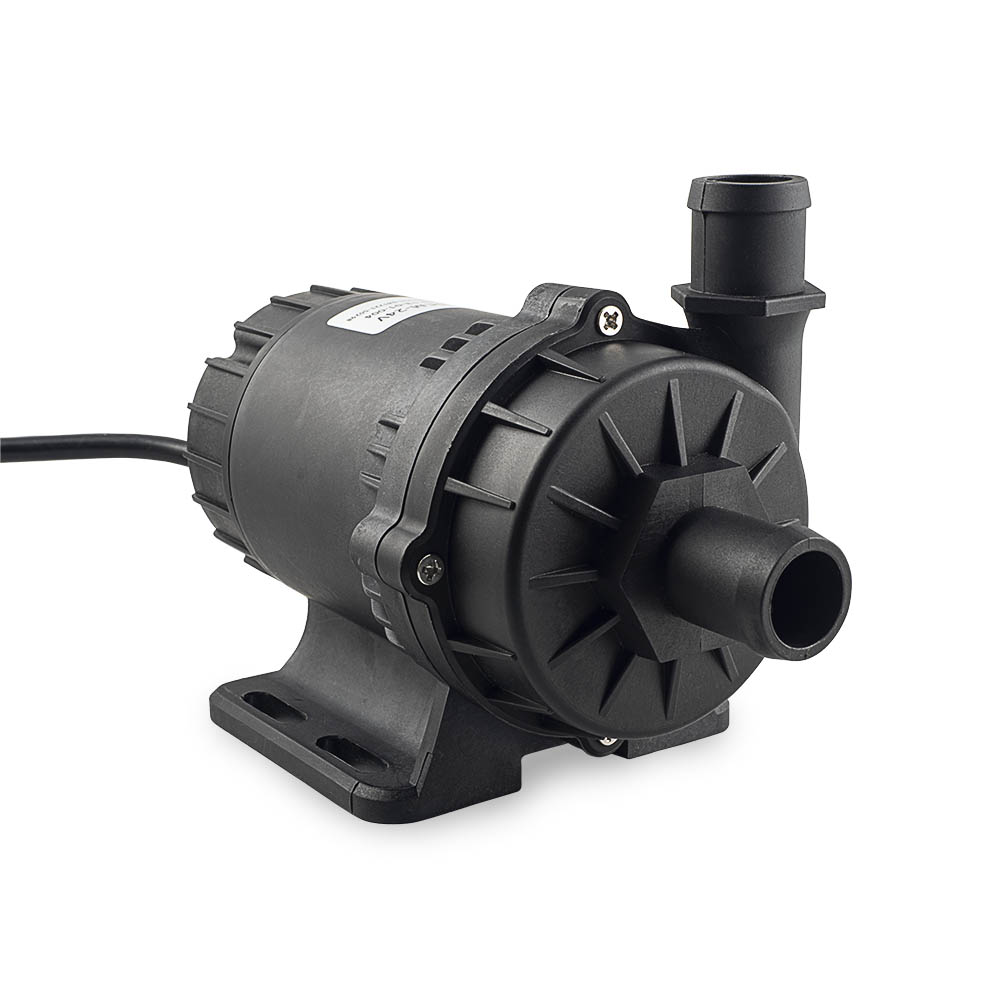

BL90CM Circulation Pumps — Model Options
BL90CM circulation-pump family with the standard, BID, variable-speed and PWM configurations shown by exact part number below.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 11 files & links ↓Specifications
| Manufacturer | Albin Group |
|---|---|
| 13-01-003 | BL90CM 12V; port 20 mm; 51 L/min at 0.1 bar; 47 L/min at 0.25 bar; power 80 W; weight 0.89 kg |
| 13-01-004 | BL90CM 24V; port 20 mm; 61 L/min at 0.1 bar; 57 L/min at 0.25 bar; power 120 W; weight 0.89 kg |
| 13-01-015 | BL90CM 12V BID; port 20 mm; 51 L/min at 0.1 bar; 47 L/min at 0.25 bar; power 80 W; weight 0.89 kg |
| 13-01-016 | BL90CM 24V BID; port 20 mm; 61 L/min at 0.1 bar; 57 L/min at 0.25 bar; power 120 W; weight 0.89 kg |
| 13-02-026 | BL90CM 12V BID VS; port 20 mm; 51 L/min at 0.1 bar; 47 L/min at 0.25 bar; power 80 W; weight 0.89 kg |
| 13-02-027 | BL90CM 24V BID VS; port 20 mm; 61 L/min at 0.1 bar; 57 L/min at 0.25 bar; power 120 W; weight 0.89 kg |

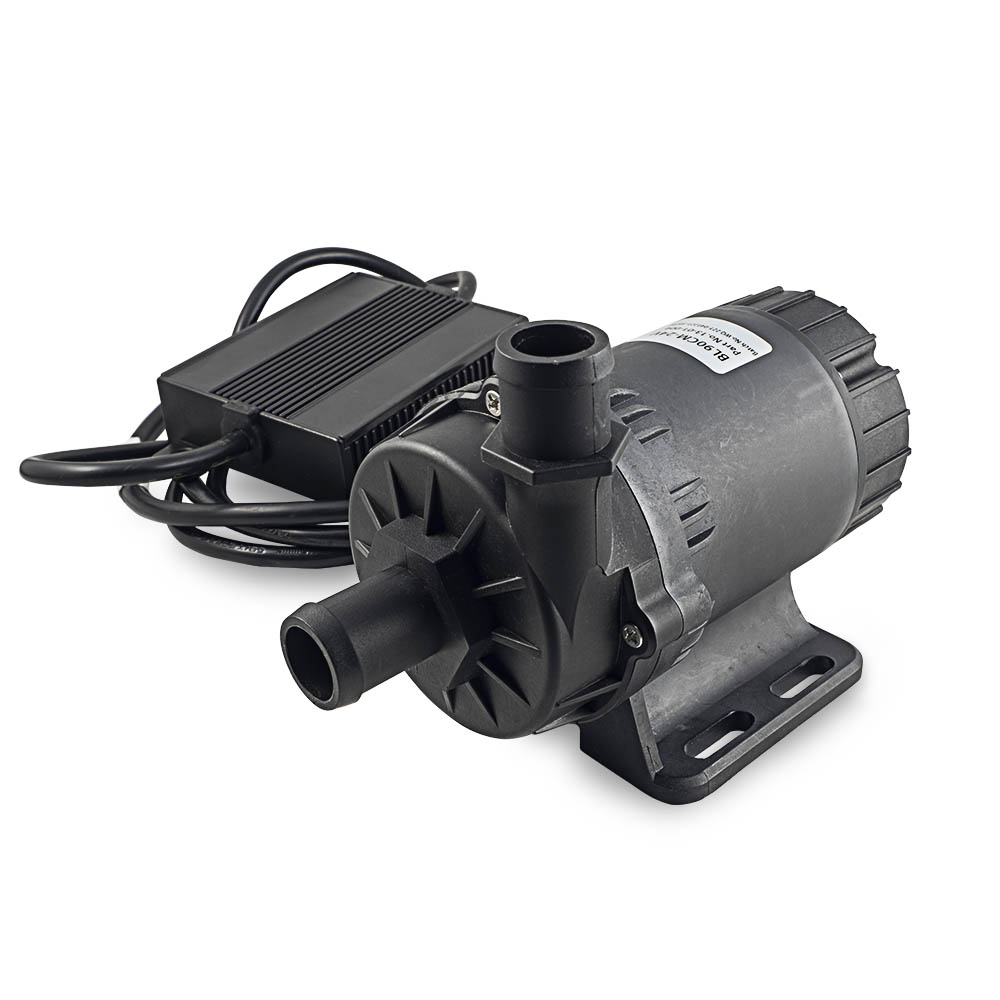

| 13-03-036 | BL90CM 12V BID PWM; port 20 mm; maximum flow 3200 L/h (manufacturer tolerance applies); weight 1.52 kg |
| 13-03-037 | BL90CM 24V BID PWM; port 20 mm; maximum flow 3800 L/h (manufacturer tolerance applies); weight 1.52 kg |
| 13-51-021 | BL90CM 24V BID OEM Outlet |
Product resources
Documentation
Manuals, technical information and catalogues for BL90CM Circulation Pumps — Model Options.
