Albin Group · Circulation Pumps

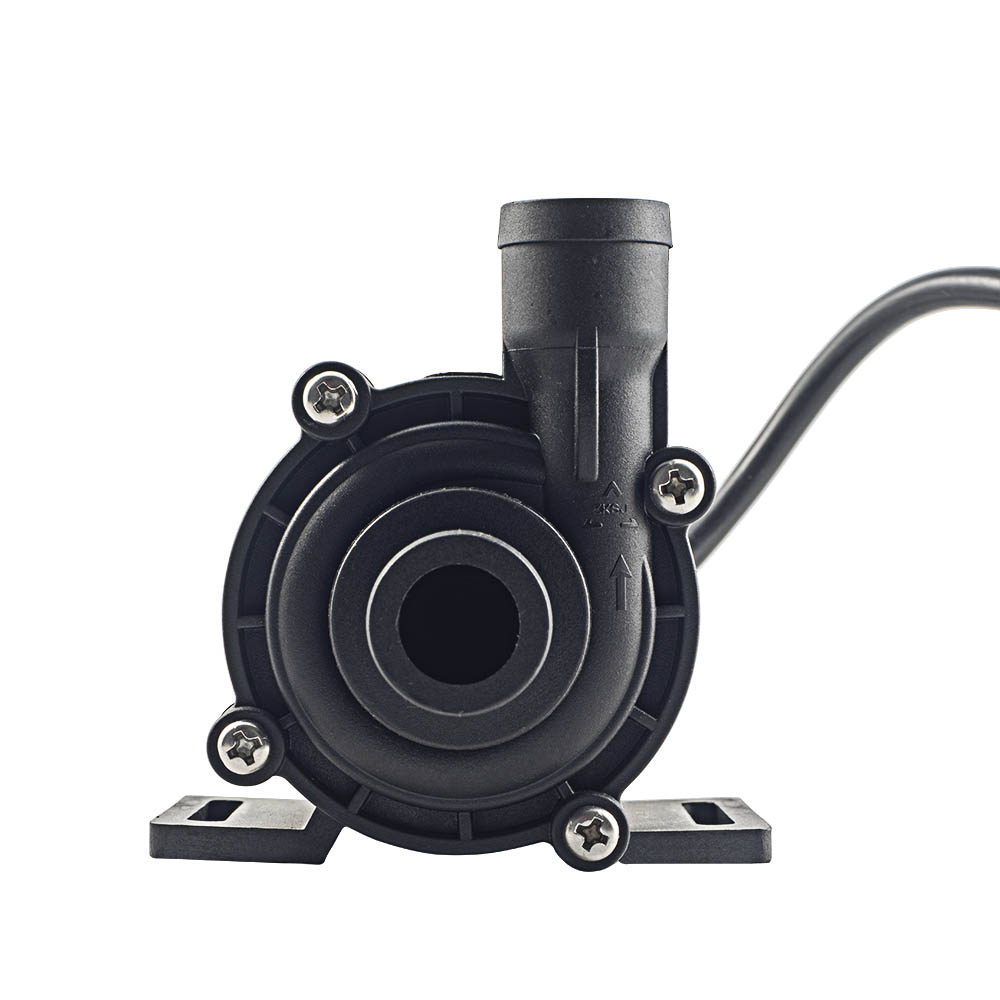

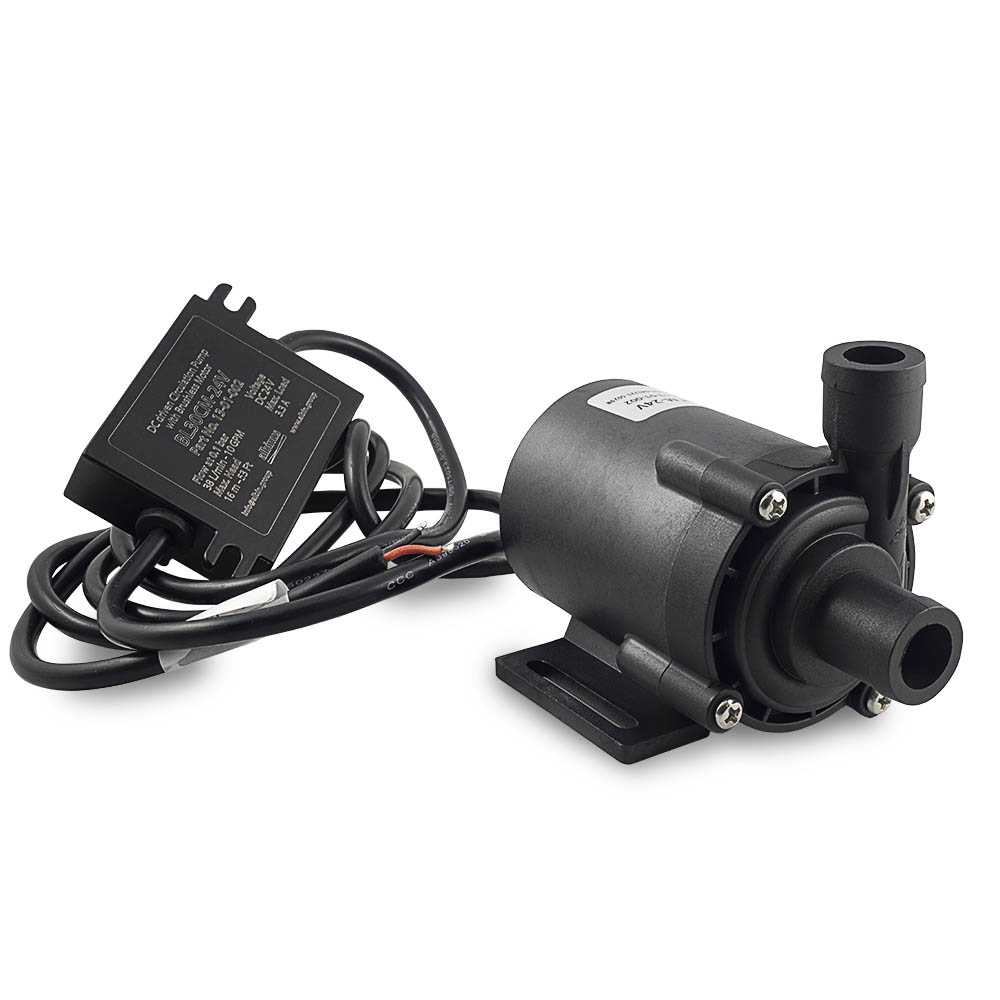

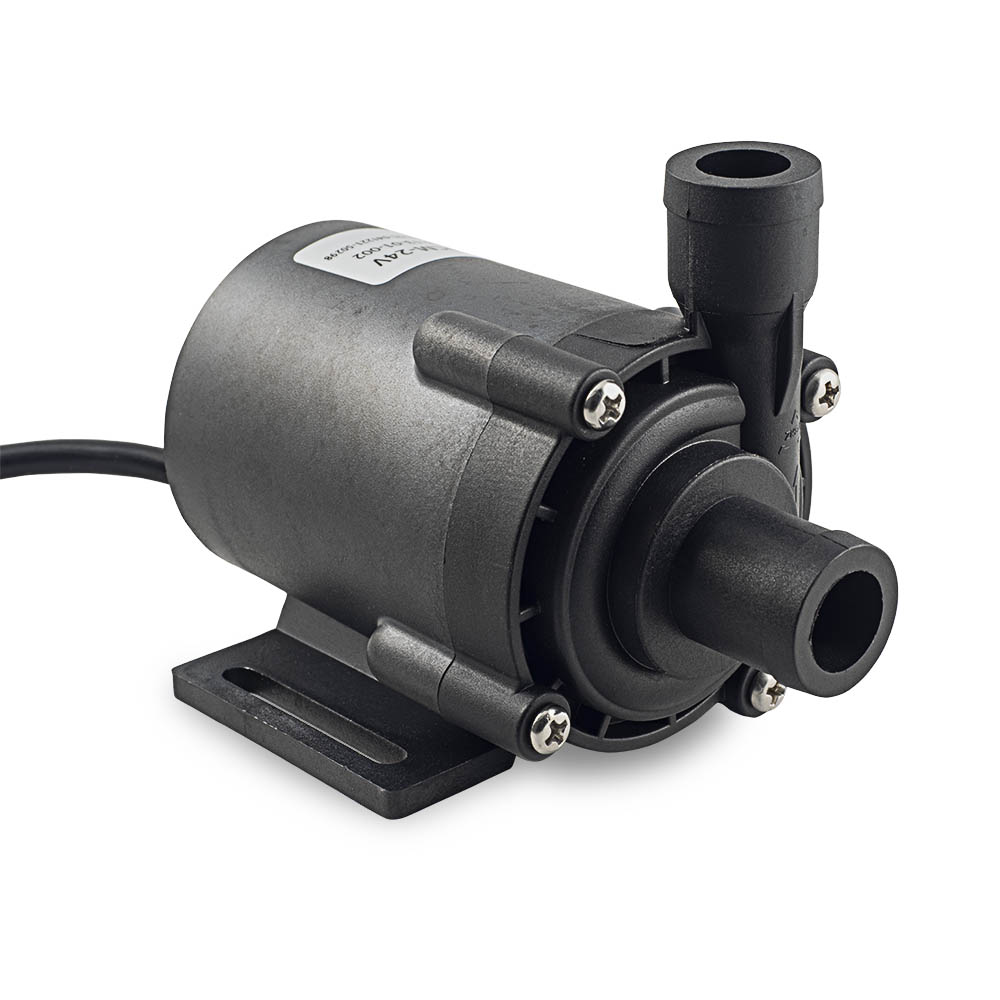

BL30CM Circulation Pumps — Model Options
BL30CM circulation-pump family with the standard, BID, variable-speed and PWM configurations shown by exact part number below.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 11 files & links ↓Specifications
| Manufacturer | Albin Group |
|---|---|
| 13-01-001 | BL30CM 12V; port 20 mm; 32 L/min at 0.1 bar; 28 L/min at 0.25 bar; power 55 W; weight 0.48 kg |
| 13-01-002 | BL30CM 24V; port 20 mm; 32 L/min at 0.1 bar; 28 L/min at 0.25 bar; power 55 W; weight 0.48 kg |
| 13-01-013 | BL30CM 12V BID; port 20 mm; 32 L/min at 0.1 bar; 28 L/min at 0.25 bar; power 54 W; weight 0.48 kg |
| 13-01-014 | BL30CM 24V BID; port 20 mm; 38 L/min at 0.1 bar; 36 L/min at 0.25 bar; power 80 W; weight 0.48 kg |
| 13-02-024 | BL30CM 12V BID VS; port 20 mm; 32 L/min at 0.1 bar; 28 L/min at 0.25 bar; power 54 W; weight 0.48 kg |
| 13-02-025 | BL30CM 24V BID VS; port 20 mm; 38 L/min at 0.1 bar; 36 L/min at 0.25 bar; power 80 W; weight 0.48 kg |
| 13-03-034 | BL30CM 12V BID PWM; port 20 mm; maximum flow 2000 L/h (manufacturer tolerance applies); weight 0.52 kg |
| 13-03-035 | BL30CM 24V BID PWM; port 20 mm; maximum flow 2400 L/h (manufacturer tolerance applies); weight 0.52 kg |
| 13-51-024 | BL30CM 24V BID OEM |
Product resources
Documentation
Manuals, technical information and catalogues for BL30CM Circulation Pumps — Model Options.
