Albin Group · Circulation Pumps

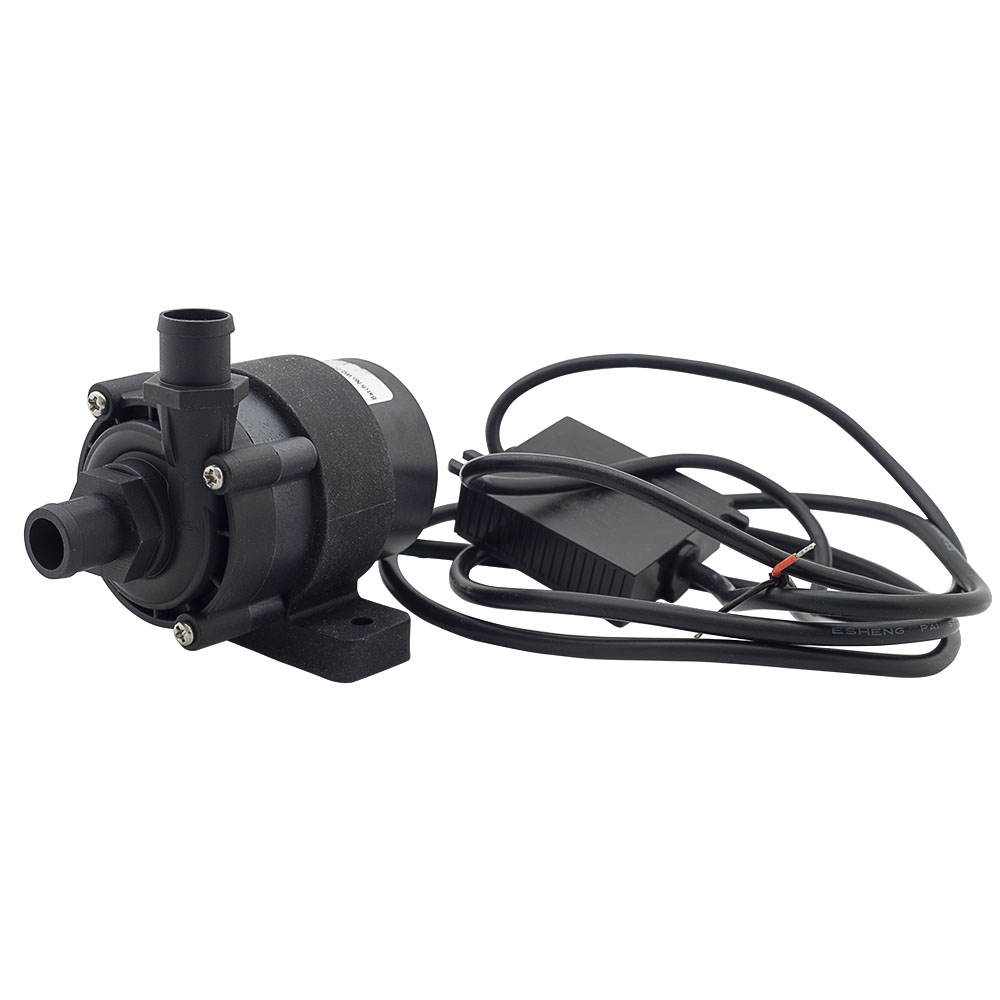

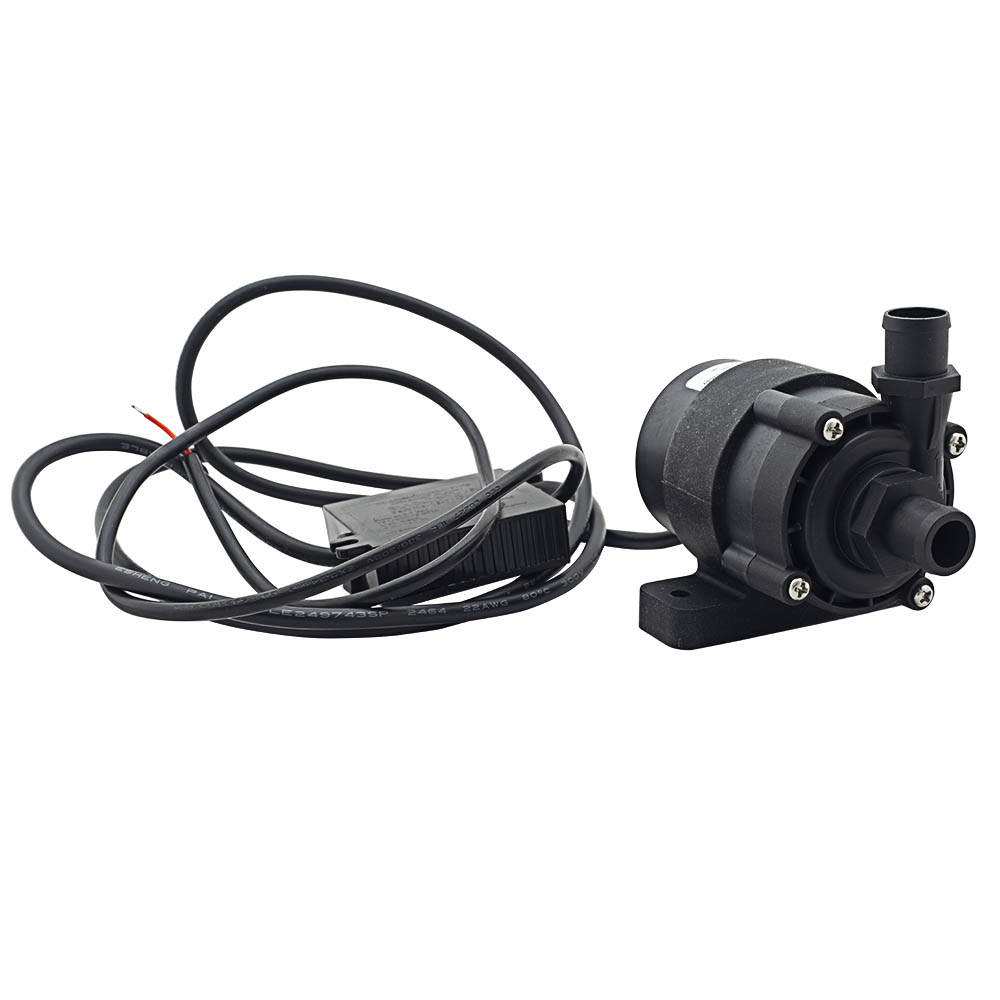

BL10CM Circulation Pumps — Model Options
BL10CM circulation-pump family with the standard, BID, variable-speed and PWM configurations shown by exact part number below.
Ask our team about compatibility, current pricing and availability.
Ask about this product on WhatsApp ↗
View documentation 10 files & links ↓Specifications
| Manufacturer | Albin Group |
|---|---|
| 13-01-005 | BL10CM 12V; port 14 mm; 19 L/min at 0.1 bar; 16 L/min at 0.25 bar; power 25 W; weight 0.2 kg |
| 13-01-006 | BL10CM 24V; port 14 mm; 21 L/min at 0.1 bar; 18 L/min at 0.25 bar; power 40 W; weight 0.2 kg |
| 13-01-011 | BL10CM 12V BID; port 14 mm; 19 L/min at 0.1 bar; 16 L/min at 0.25 bar; power 25 W; weight 0.2 kg |
| 13-01-012 | BL10CM 24V BID; port 14 mm; 21 L/min at 0.1 bar; 18 L/min at 0.25 bar; power 40 W; weight 0.2 kg |
| 13-02-022 | BL10CM 12V BID VS; port 14 mm; 19 L/min at 0.1 bar; 16 L/min at 0.25 bar; power 25 W; weight 0.2 kg |
| 13-02-023 | BL10CM 24V BID VS; port 14 mm; 21 L/min at 0.1 bar; 18 L/min at 0.25 bar; power 40 W; weight 0.2 kg |
| 13-03-032 | BL10CM 12V BID PWM; port 14 mm; maximum flow 1200 L/h (manufacturer tolerance applies); weight 0.3 kg |
| 13-03-033 | BL10CM 24V BID PWM; port 14 mm; maximum flow 1350 L/h (manufacturer tolerance applies); weight 0.3 kg |
Product resources
Documentation
Manuals, technical information and catalogues for BL10CM Circulation Pumps — Model Options.
