Maretron TSM810C 8" vessel monitoring and control touchscreen
World-class standards in vessel monitoring and control systems
The TSM810C is an 8” dedicated touchscreen that includes
Maretron’s N2KView® vessel monitoring and control
software. The N2KView software allows you to configure as many
favorite screens as you want with exactly the information you
want to see. The TSM810C provides an extremely simple touch
interface for monitoring and controlling critical systems from
anywhere on the vessel.
The TSM810C is ruggedized for
marine use and includes a solid state disk drive to withstand
the pounding associated with waves. And since the TSM810C only
dissipates 10 watts, there is no need for internal cooling fans
that are noisy and wear out causing electronics to overheat and
fail. The TSM810C can be mounted outside given the high bright
screen and waterproof front.
As an alternative to
controlling the TSM810C through the touch screen, the TSM810C
includes two USB ports for connecting keyboards, mice, or
trackballs. The TSM810C also has an Ethernet port for connecting
Internet Protocol (IP) cameras for viewing within the
N2KView® software. Lastly, the TSM810C contains two
completely isolated CAN bus connectors (M12) for easy connection
to single or redundant NMEA 2000® networks.
- 8" TFT LCD panel, LED Backlit
- Widescreen aspect ratio 5:3
- 800 x 480 pixels
- 1350 nits brightness (Optically bonded)
- Solid state disk drive
- Fanless cooling system
- Flush or VESA mounting capability
- Dual CAN Bus for Single or Redundant NMEA 2000® Network Connectors
Displays:
- Air conditioning (HVAC)
- Anchor watch
- AC power
- Battery
- Depth
- Engine
- Environment
- Fuel management
- GPS
- Heading
- Ice makers
- Navigation
- Rudder
- Speed
- Tanks
- Time
- Transmission
- Video

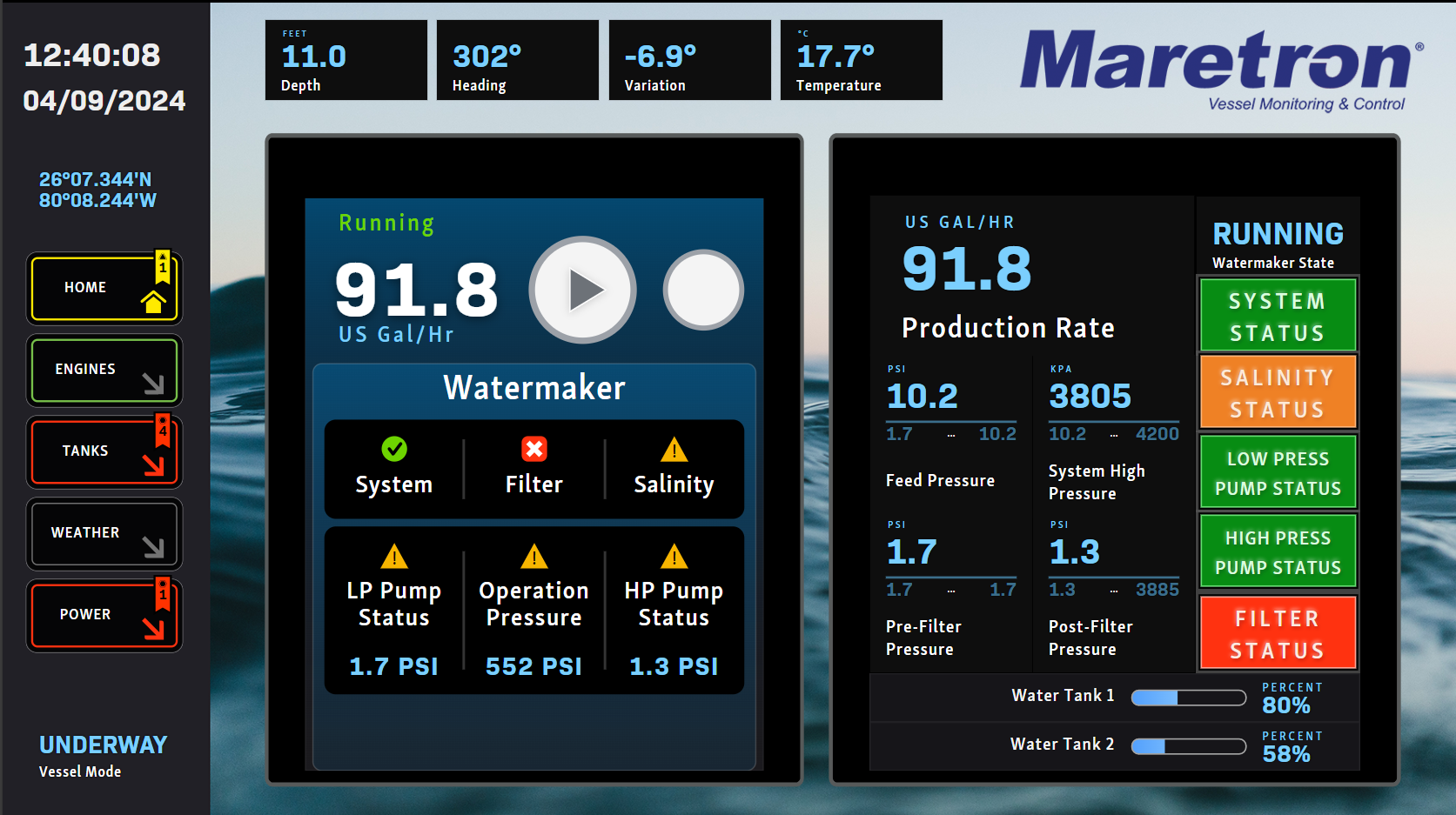

- Watermakers
- Time
The following accessories are available for the TSM810C:
|
TSM810C Protective Cover Part Number: TSM810C-Dust-Cover |

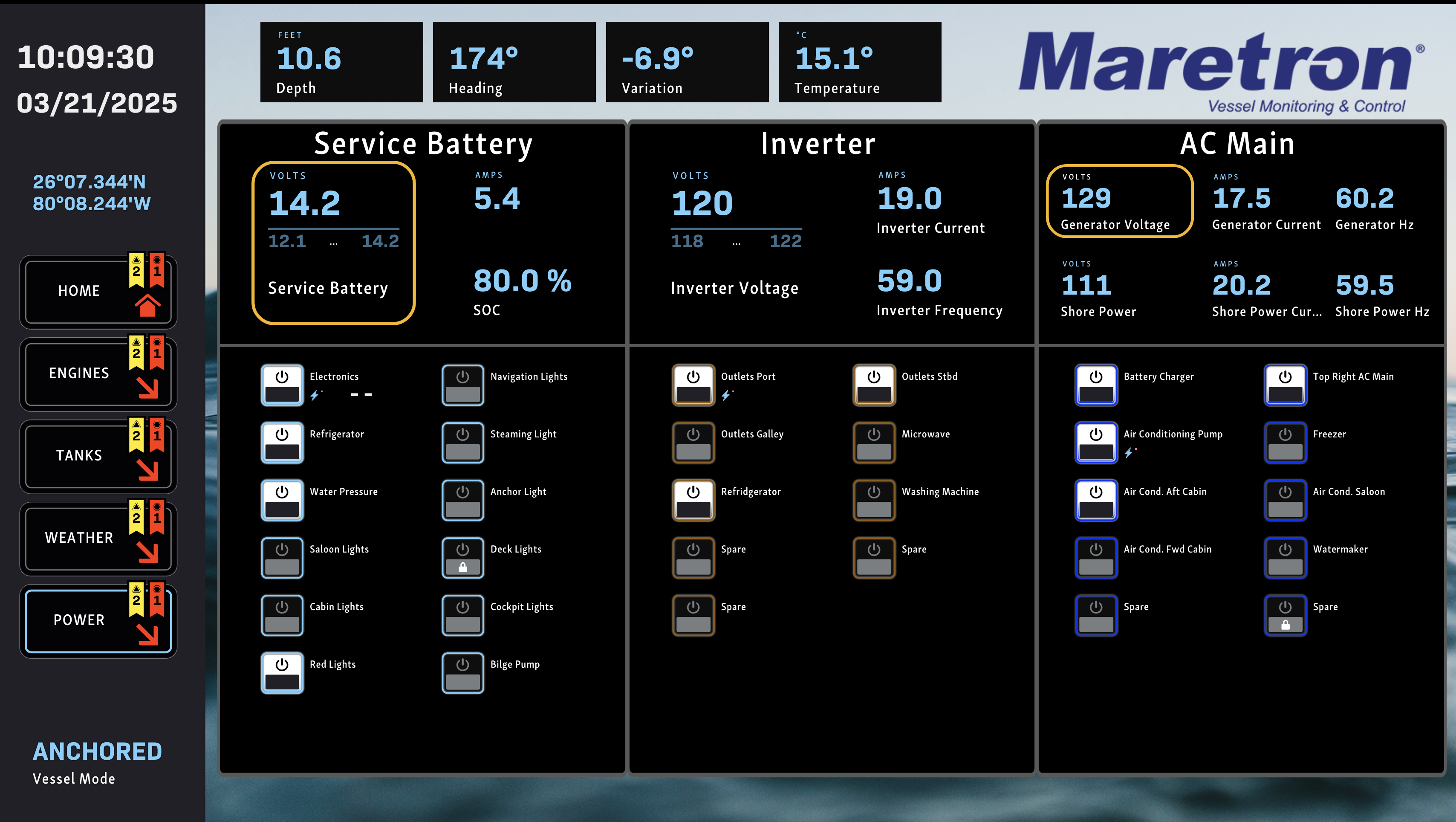

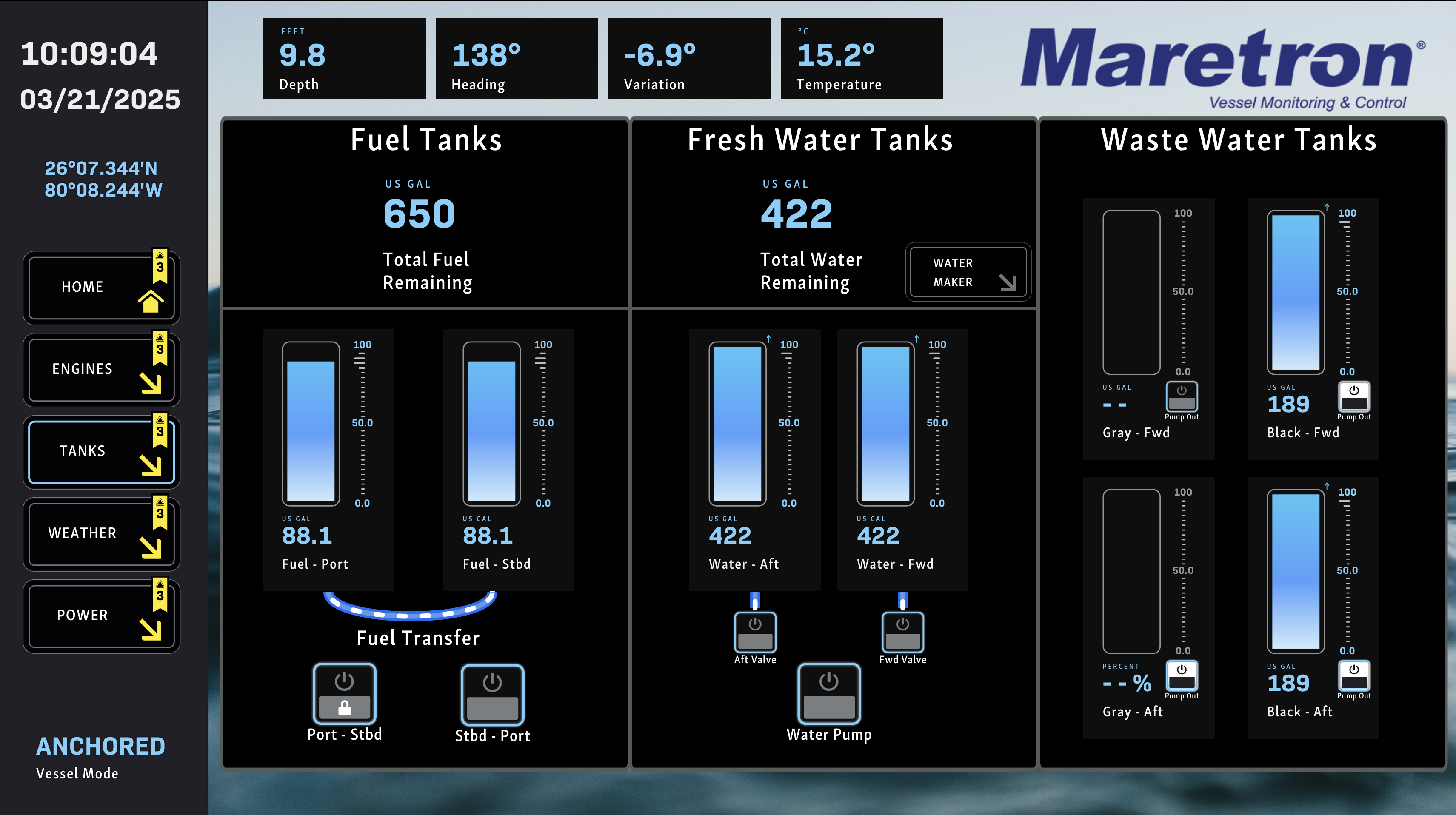

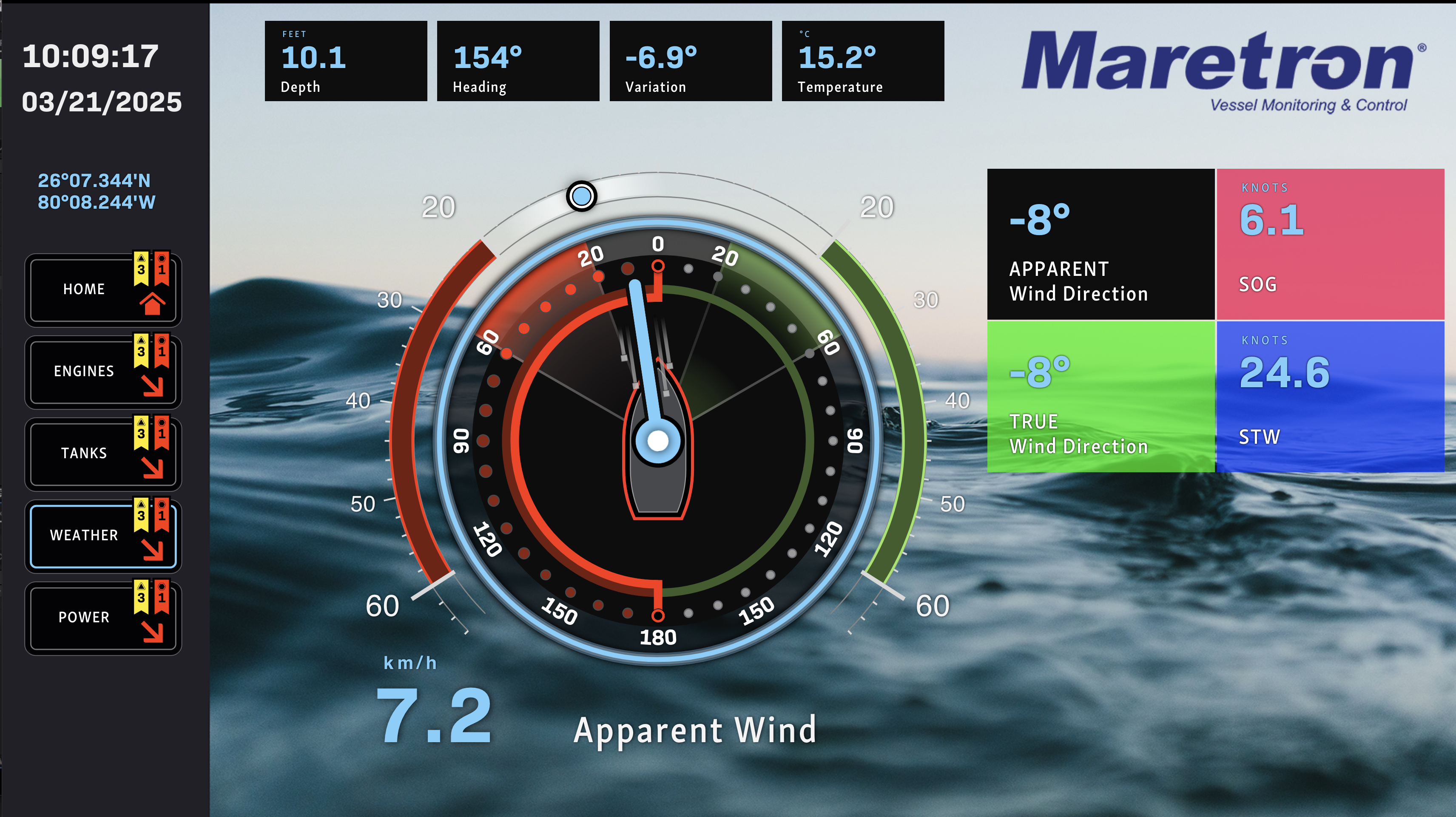

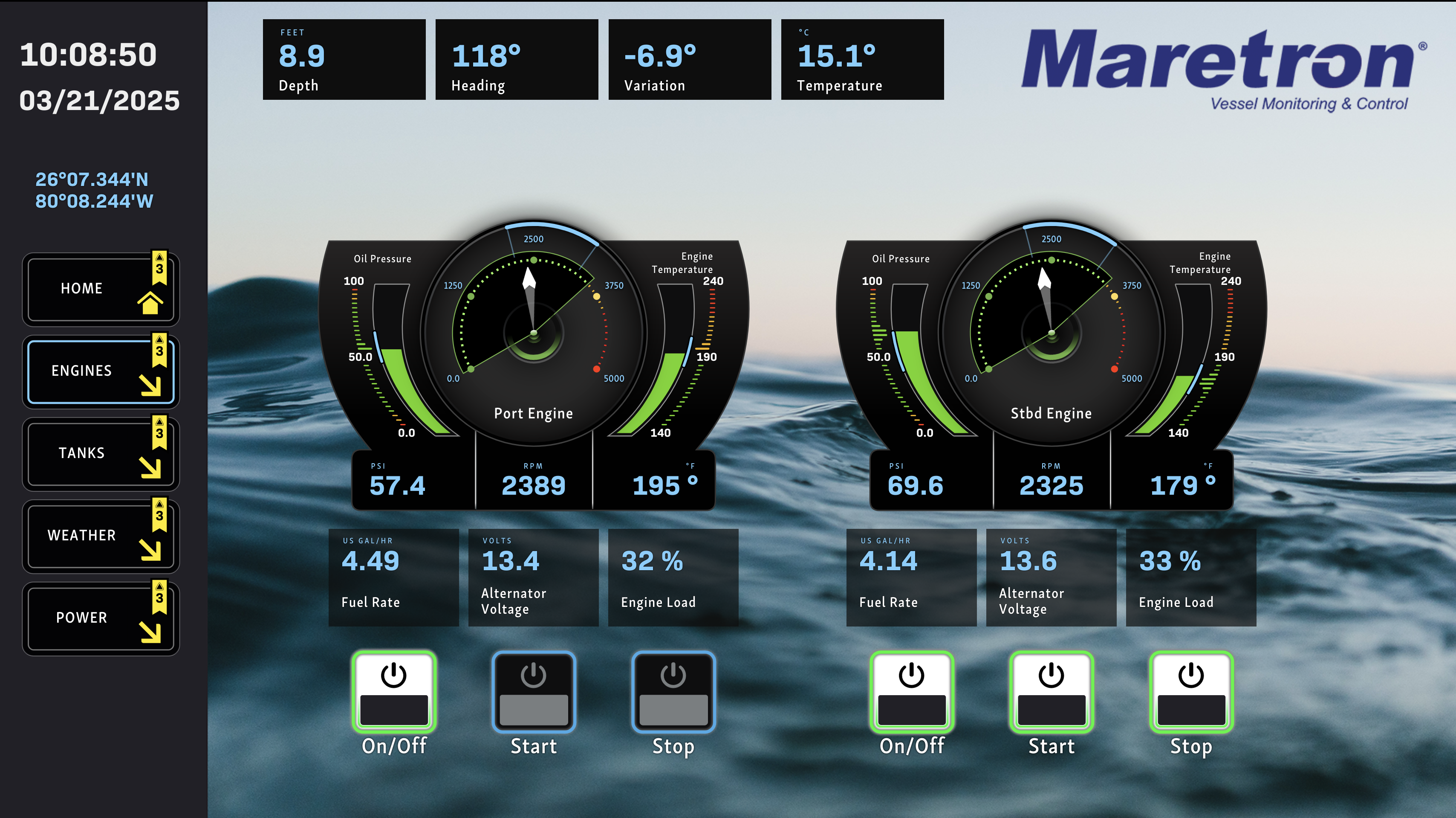

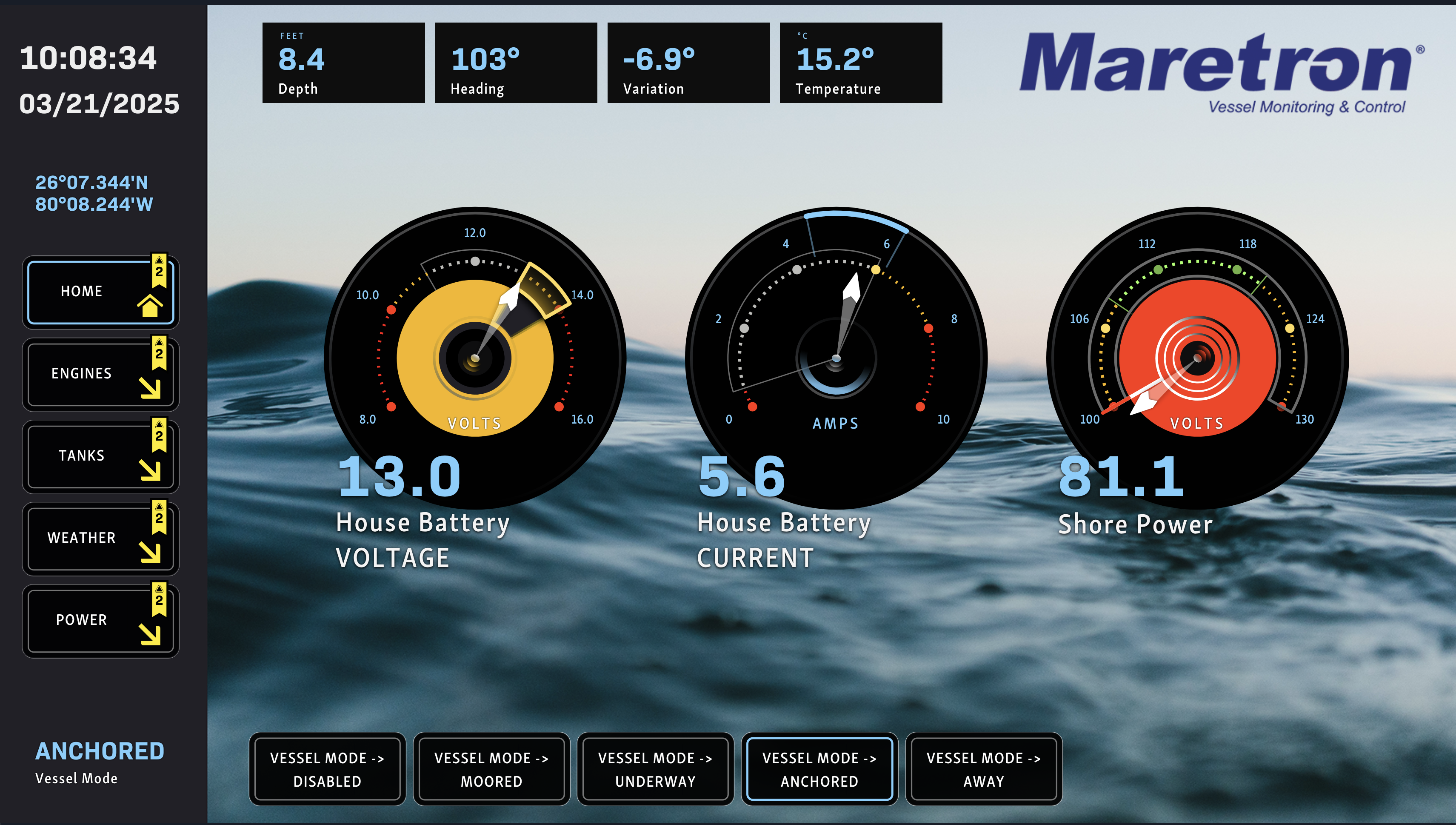

Default Configuration Example

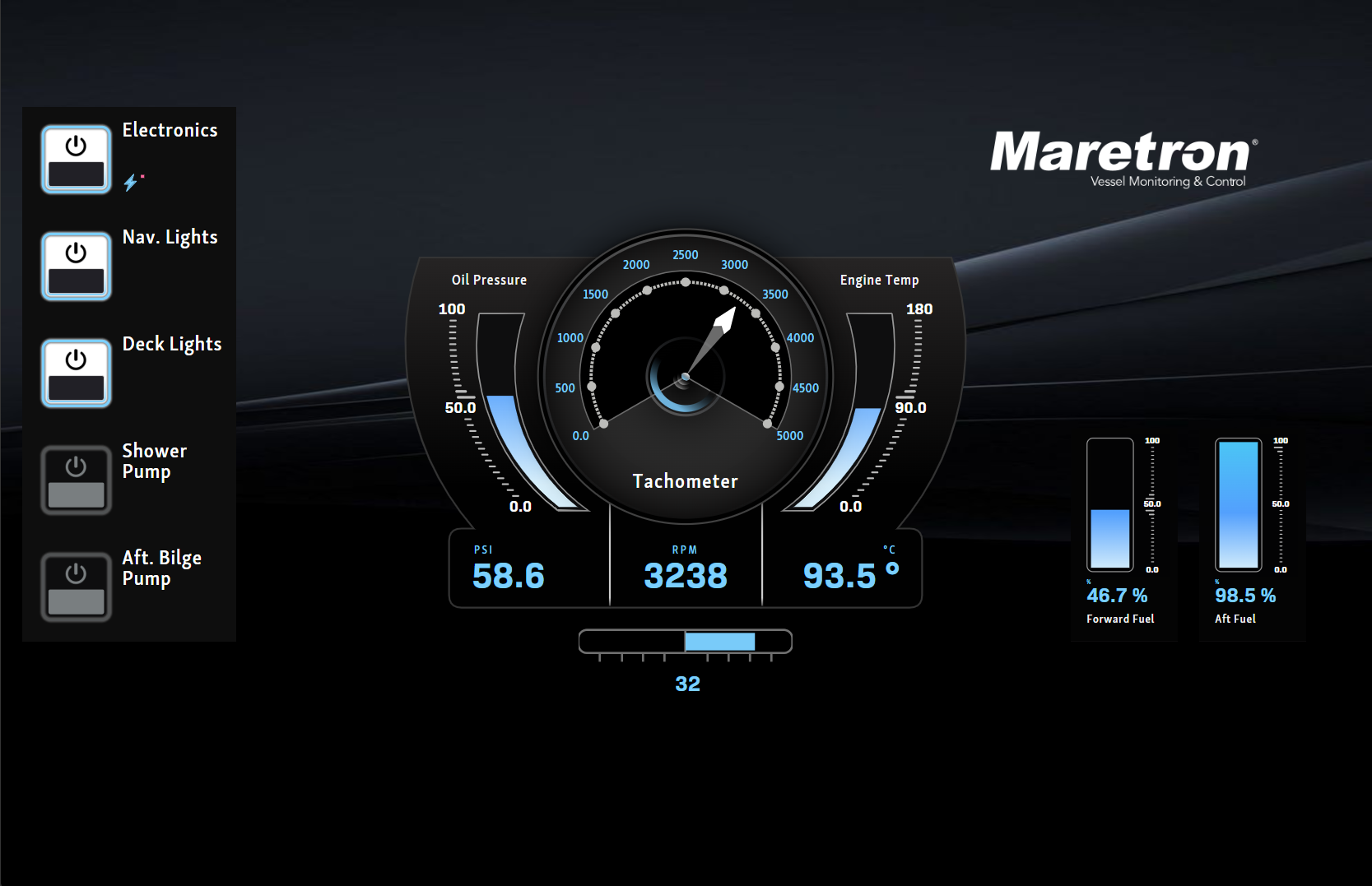

Simple Small Boat Configuration

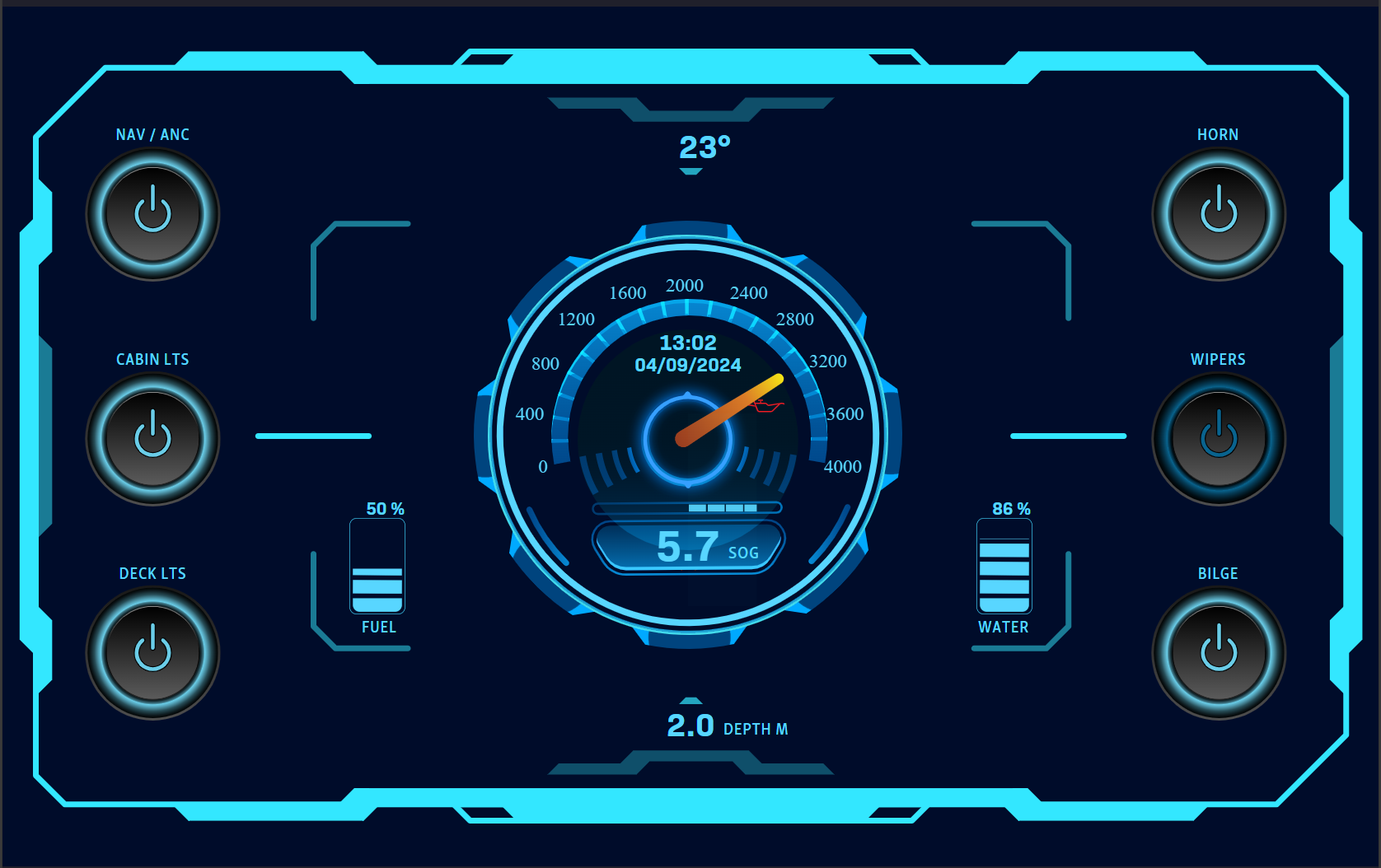

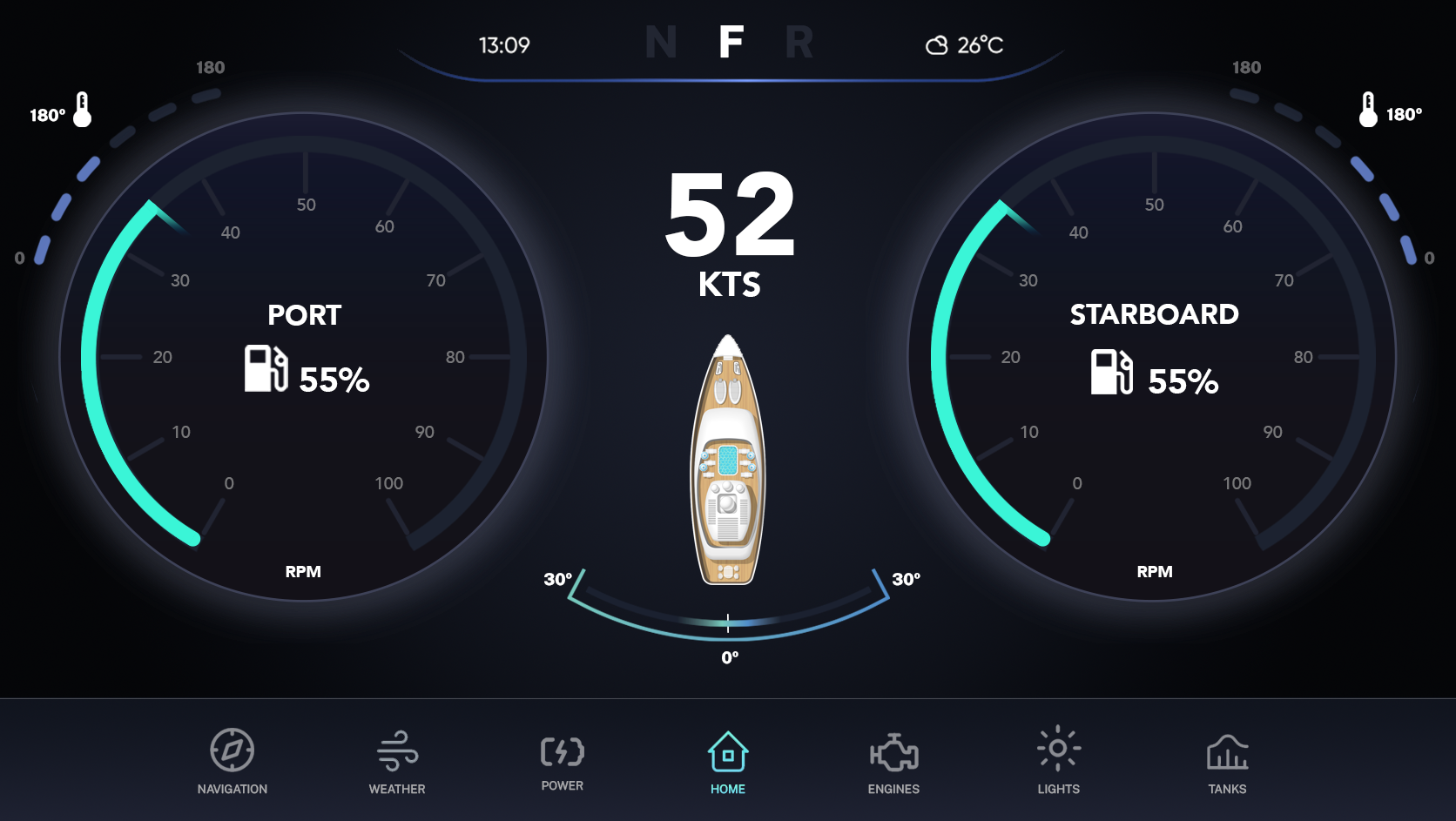

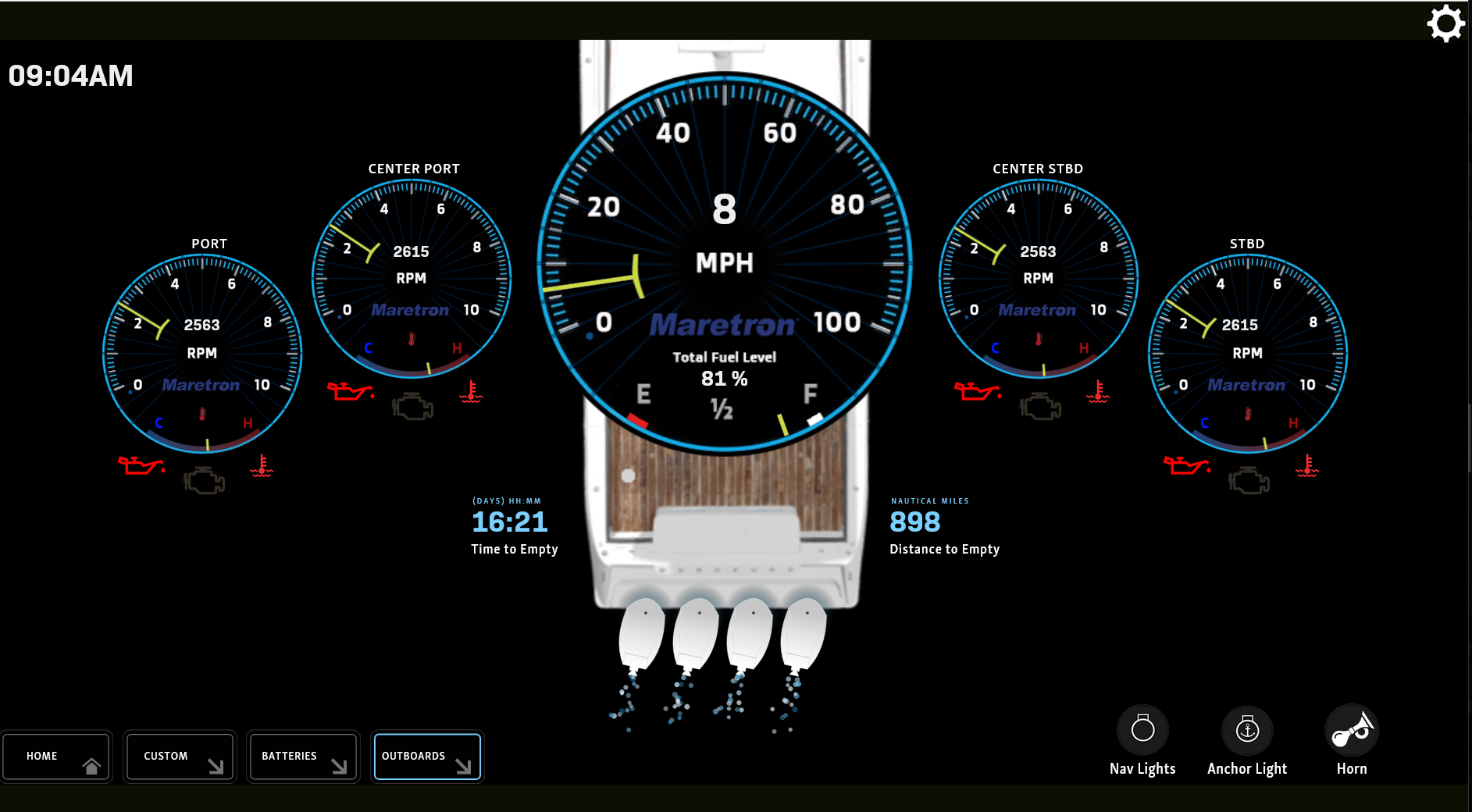

Custom Graphic Configuration Examples
The software for the TSM810C has now been updated to version 6.4.1 It is not possible to update previous versions of N2KView 5.0.x, 5.1.x or 6.0.x versions to this platform; a complete image installation is required. Please contact support at [email protected] or toll free at (866) 550-9100 to determine compatibility and to acquire image files and instructions.
Update Instructions for versions 6.3.0 and 6.3.1 to version 6.4.1
Download the following to update the firmware on the TSM810C:
This is a large file.
Latest Software Release: 1.2.0.20250417
Previous releases:
1.1.3 (2024-10-25)
- 1.1.3 (2024-10-25)
