Octoplex® AC Power Distribution Units

•The AC Power Distribution units provide the boat builder with up to 8, 13 or 19 remotely controlled hydraulic-magnetic circuit breakers in one package that can be mounted virtually anywhere in the vessel.

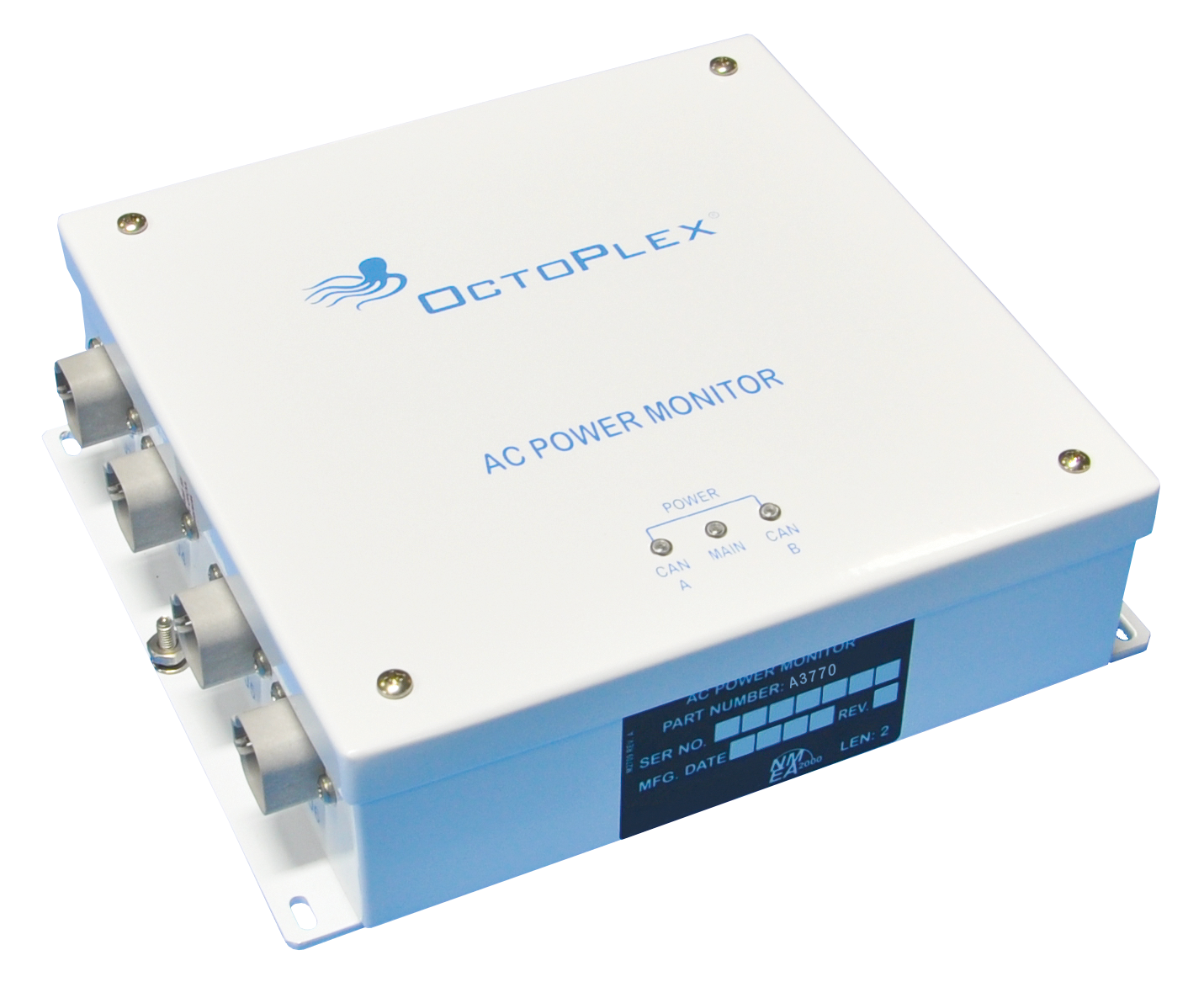

OctoPlex® AC Power Monitor

•The AC Monitor measures the voltage, current and frequency of up to four (4) Single phase single Line AC inputs, two (2) Single Phase Dual Line AC inputs, or one (1) Three phase Three Line AC input. The AC Monitor utilizes dual CAN connections for redundancy.

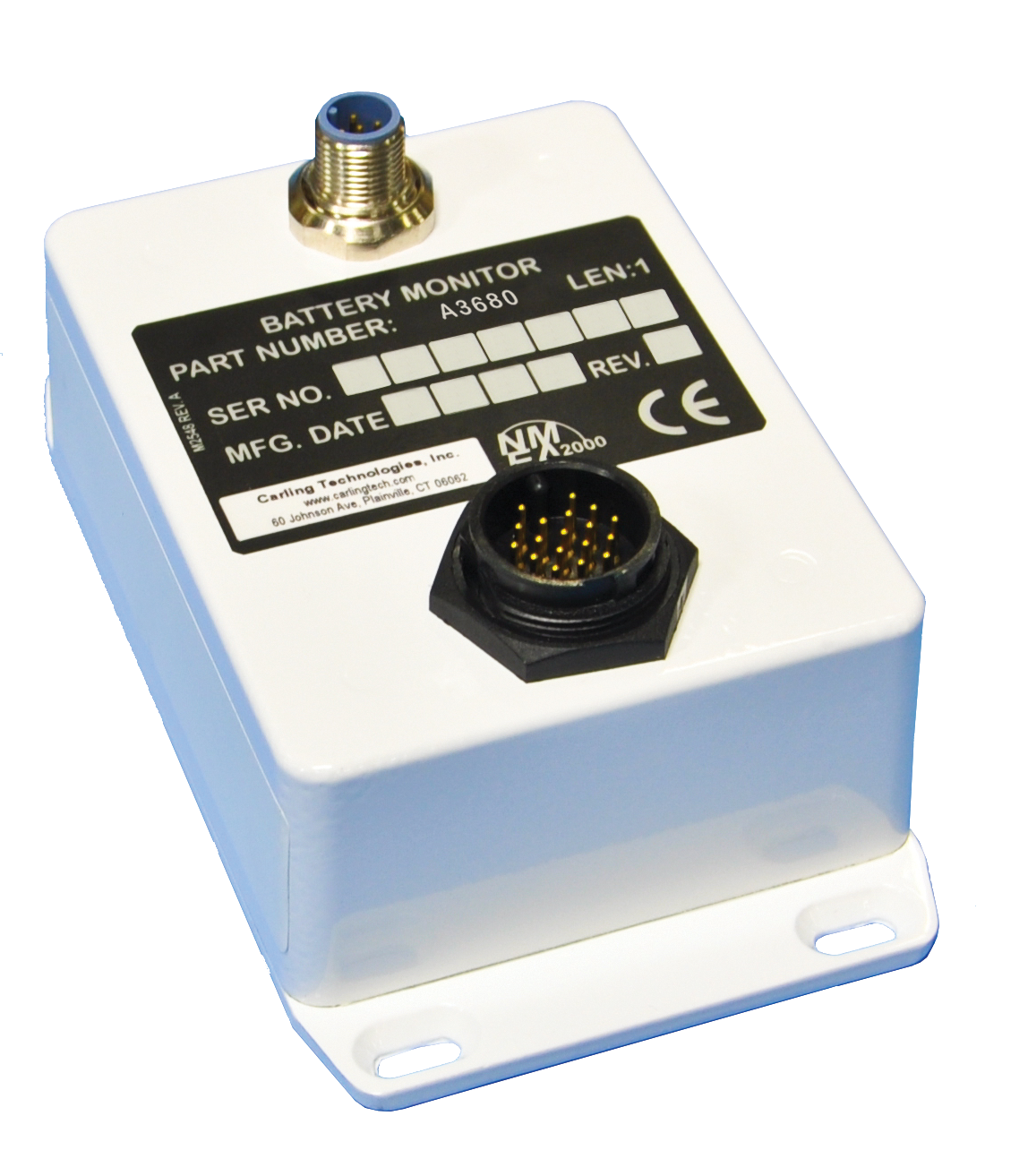

OctoPlex® Battery Monitor

•The Battery Monitor is capable of measuring one (1) Current, two (2) DC Voltages, and up to four (4) individual battery temperatures. The Battery Monitor Cable Harness (P/N A2225-[], see Table 1 and 2) enables the monitor to connect to the batteries.

OctoPlex® DC Power Distribution Unit

•The 8 and 16 DC Power Distribution units are multiprocessor based design rated for up to 100 Amps max. The Electronic Circuit Breakers (ECBs) can be configured to provide protection for DC loads up to 30 Amps. These units contain two host processors for communicating with ECBs and also CAN networks.

Octoplex® Multi-Function Displays

•The A3419 is an 8” dedicated touchscreen that includes the N2KView® vessel monitoring and control software. The N2KView software allows you to configure as many favorite screens as you want with exactly the information you want to see.

OctoPlex® Network Power Supply

•The Network Power Supply (NPS) provides regulated +15 VDC to the OctoPlex dual CAN network system. The power supply utilizes one AC and two DC power inputs for redundancy.

OctoPlex® System Interface Unit Monitor

•The System Interface Unit Monitor (SIU) allows the user to interface with up to 34 digital signals (DC discrete inputs) to the OctoPlex® system for status and monitoring purposes. The SIU can be configured to perform Discrete I/O Functions, in conjunction with the AC and DC Distribution units.
